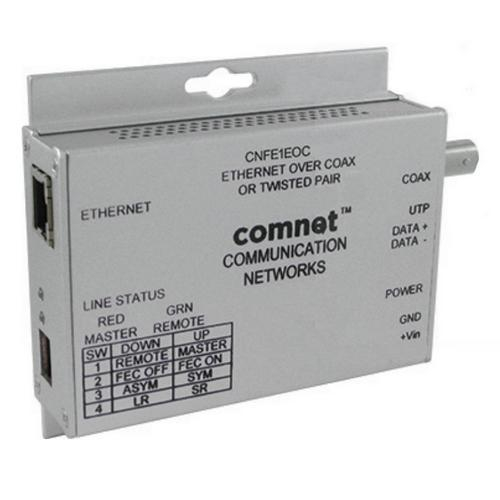

Comnet, CNFE1EOC, ValueLine Ethernet over Twisted Pair or Coax, ComFit Size.

Features:

Utilizes latest VDSL2 technology for fastest data rate transmission and greatest transmission distance
Supports transmission distances of up to 10,000 ft (3 km) over twisted copper, or up to 1500 ft (457 m) over coaxial cable
Symmetric line rates of over 91 Mbps
Automatically sets fastest possible data rate vs. cable quality and transmission distance
User-configurable master/remote, forward error correction, asymmetrical/symmetrical data, and long-reach/short-reach selection
IEEE 802.3 Compliant. 10/100 BASE-T/TX Ethernet port with automatic MDI/MDI-X crossover
Screw Terminals for twisted copper circuits, or BNC connector for coaxial cable
Ideal for multiple-channel Ethernet over VDSL applications where modem space may be limited
Compact form-factor saves space in those installations where space may be at a premium.
Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Interface
Ethernet connector	RJ45
Cable	Cat 5, Cat 5e, Cat 6
Data Rate	10/100Mbps
Distance	100m (328ft)
Line Side Port 1 (Twisted Pair)
UTP connector	Screw Terminal Block
Cable	Telephone-grade 19 to 26 AWG (one twisted pair)
Throughput	Powered by PoE or 4-pin screw terminal for local power or power injection
Throughput 1000 ft (305 m) 2500 ft (762 m) 5000 ft (1524 m) 7500 ft (2286 m) 10,000 ft (3048 m)	(Downstream / Upstream) 70 Mbps / 68 Mbps 26 Mbps / 17 Mbps 16 Mbps / 1 Mbps 5 Mbps / 0.5 Mbps 1 Mbps / 0.25 Mbps
Line Side Port 2 (Coax)
Coaxial connector	BNC
Impedance	75 ohm coax
Throughput 200 ft (61 m) 500 ft (152 m) 1000 ft (305 m) 1500 ft (457 m)	(Downstream / Upstream) 88 Mbps / 95 Mbps 85 Mbps / 93 Mbps 83 Mbps / 89 Mbps 76 Mbps / 83 Mbps
Power
Operating Voltage Range	12–27 VAC at or 12–27 VDC
Power Consumption	< 320 mA
Electrical & Mechanical
Overload Protection	Automatic Resettable Solid-State Current Limiters
Circuit Board	Meets IPC Standard
Environmental
MTBF	>100,000 hours
Operating Temp	0° C to +60° C
Storage Temp	– 40 C to +80 C
Relative Humidity	0% to 95% (non-condensing)

Notes
