ComNet CLKFE1EOU CopperLine Ethernet Extender over UTP Local

Comnet, CLKFE1EOU, CopperLine Ethernet Extender over UTP af PoE Passthrough Supported Local & Remote Single-Channel

Features:

• Transmits individual Ethernet data channels with pass-through PoE over standard UTP or Coaxial cable
• Extends Ethernet up to 3,000 feet (914 m) at 10 Mbps or 2,000 feet (610 m) at 100 Mbps over UTP cable
• Extends Ethernet up to 5,000 feet (1,524 m) at 10 Mbps or 2,000 feet (610 m) at 100 Mbps over Coaxial cable
• Extended temperature operation from -40°C to +65°C
• Extended pass-through PoE meets the IEEE 802.3af standard for Power over Ethernet
• Full 10/100 Mbps bandwidth
• Supports Multicast, Unicast, and Jumbo Frame
• Symmetric bandwidth provides consistent upload and download with virtually zero packet loss over the total usable distance
• Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
• User-selectable data rate for maximum bandwidth and transmission distance utilization
• Complies with all major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPs
• Designed to meet full compliance with the environmental requirements of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment, including:
  • Ambient operating temperature
  • Mechanical shock and vibration
  • Humidity with condensation
  • High-line/low-line voltage conditions
  • Transient voltage protection
• Designed and manufactured in the USA
• LED status indicators confirm operating status
• Small package for limited space installations

Applications:

• Retrofit existing analog CCTV installations to Ethernet-based systems
• CCTV systems for casinos, airports, and school campuses

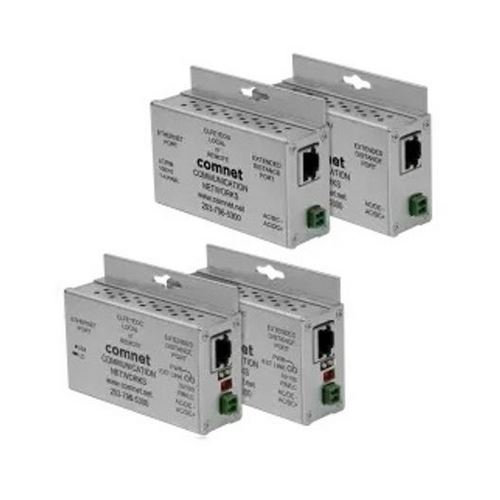

The ComNet CopperLine Ethernet over copper line kit supports one channel of 10/100Mbps Ethernet with Pass-through PoE over twisted pair cable (CAT-5, UTP), or over coaxial cable. The single channel units included in the kit may be powered by a PoE switch or the included power supply. These units extend a powered device (PD) over long distance copper. DIP switches are provided for user-selection of local or remote, 10 or 100Mbps, and 1 pair or 4 pair (UTP) settings.

For more information, please see Data Sheet
