ComNet CLEK11EOC Ethernet Extender over Coax Local & Remote

Comnet, CLEK11EOC, Ethernet Extender over Coax Local & Remote Single-Channel

Features:

• Transmits individual Ethernet data over Coaxial cable
• Extends Ethernet up to 1,200 feet (400 m) over Coaxial cable
• Temperature operation from 0°C to +50°C
• Full 10/100 Mbps bandwidth
• Supports Multicast, Unicast, and Jumbo Frame
• Symmetric bandwidth provides consistent upload and download with virtually zero packet loss over the total usable distance
• Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
• User-selectable data rate for maximum bandwidth and transmission distance utilization
• Complies with all major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPs
• Designed and manufactured in the USA
• LED status indicators confirm operating status

Applications:

• Retrofit existing analog CCTV installations to Ethernet-based systems
• CCTV systems for casinos, airports, school campuses

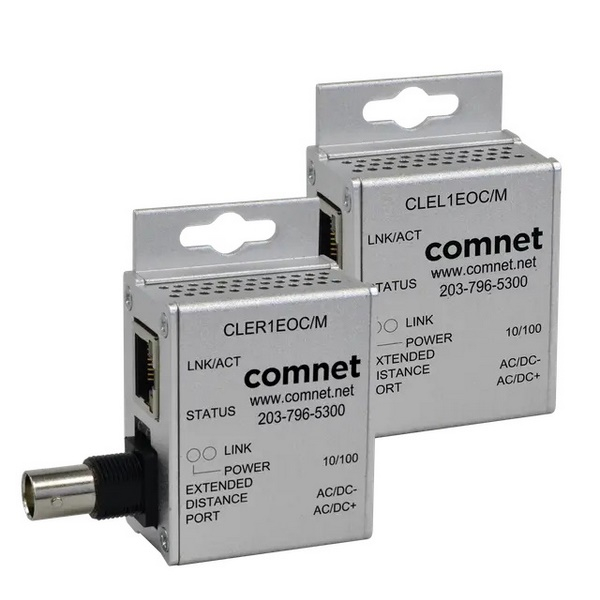

The ComNet CopperLine Ethernet-over-coax minis are an ultra-small form factor addition to the ComNet Copperline product family. These miniature remote units provide 10/100 Mbps Ethernet data over extended distance coaxial cable, up to 1,200 feet (400 meters). The mini CopperLine units will allow extended distance over copper to be used in standard applications where space is extremely limited. A DIP Switch allows configurable selection of 10 Mbps or 100 Mbps speed these units are simple to install. This CopperLine Value kit provides two units with power supplies
