Buy Code B-FR22-RFID-RDR-US, FR22 Fixed UHF RFID Reader

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Version:: Version: UHF RFID Reader

Features:

Offering unparalleled flexibility and connectivity, the FR22 Fixed RFID reader enables automated data collection and exchange between a variety of platforms and use cases.

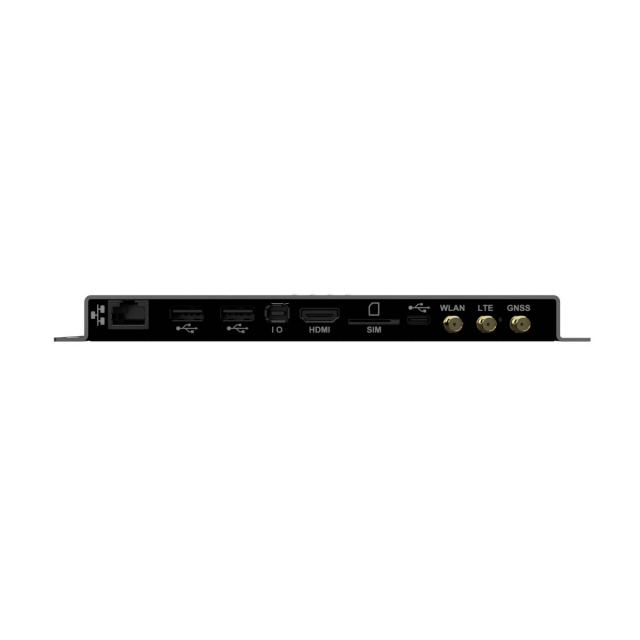

Features integrated Bluetooth, Wi-Fi, LAN, USB, and GPIO, as well as HDMI video output
Linux OS provides edge computing capabilities, allowing users to run plugins or applications directly on the FR22 reader
Plug and play support for accessories including a 16-port antenna multiplexor and beam-forming antenna with 28 individual beams for directionality detection

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Dimensions

0.69 in H x 8 in W x 3.09 in D

Reading Speed

Up to 1000 tags per second

Weight

0.674 lb

Color

Silver, Blue

Application

Asset Tracking
Inventory and Inspection Labelin
RFID labeling
Temperature Indicating Labeling

Central Processing Unit (CPU)

Quad-core A7 1.1GHz

Connectivity

Bluetooth, Ethernet, GPIO Industrial mini IO port, GSM/EDGE, LTE-FDD B1/B3/B5/B7/B8/B20, LTE-TDD B38/B40/B41, USB Host, USB-C, WCDMA B1/B5/B8, Wireless 802.11 a/b/g/n, Wireless 802.11 b/g

Display Type

None

Memory

1GB RAM, 8GB Flash

Power Supply Voltage

100 - 240 V at 50 - 60 Hz

Mounting Type

4 Screws (not included)

Operating System

Linux

ISO Conformance Standards

ISO 18000-63 (EPC Class 1Gen2v2)

Data Management

Nordic ID RADEA

API Support

NUR API for RFID and RESTful service to access reader configuration

Audio

Integrated Buzzer

Operating Power

4W in idle state, Max 18W with max RFID tx level and all radios disabled, Max 25.5W with max RFID tx level and all radios enabled

Connector Types

Brady extension port

Connector

Brady extension port

External Antenna Port

4 ports RP-SMA female

HDMI

Video 1280 x 720 and 640 x 480 resolution

Device Indicators

4 LEDs indicating the enabled antennas, Application LED, Connection LED, Extension port LED, Power LED, RF LED

UNSPSC

43211701

Ingress Protection Rating

IP20

RoHS Compliance Status

Compliant with Directive 2011/65/EU and 2015/863

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Dimensions

0.69 in H x 8 in W x 3.09 in D

Reading Speed

Up to 1000 tags per second

Weight

0.674 lb

Color

Silver, Blue

Application

Asset Tracking
Inventory and Inspection Labelin
RFID labeling
Temperature Indicating Labeling

Central Processing Unit (CPU)

Quad-core A7 1.1GHz

Connectivity

Bluetooth, Ethernet, GPIO Industrial mini IO port, GSM/EDGE, LTE-FDD B1/B3/B5/B7/B8/B20, LTE-TDD B38/B40/B41, USB Host, USB-C, WCDMA B1/B5/B8, Wireless 802.11 a/b/g/n, Wireless 802.11 b/g

Display Type

None

Memory

1GB RAM, 8GB Flash

Power Supply Voltage

100 - 240 V at 50 - 60 Hz

Mounting Type

4 Screws (not included)

Operating System

Linux

ISO Conformance Standards

ISO 18000-63 (EPC Class 1Gen2v2)

Data Management

Nordic ID RADEA

API Support

NUR API for RFID and RESTful service to access reader configuration

Audio

Integrated Buzzer

Operating Power

4W in idle state, Max 18W with max RFID tx level and all radios disabled, Max 25.5W with max RFID tx level and all radios enabled

Connector Types

Brady extension port

Connector

Brady extension port

External Antenna Port

4 ports RP-SMA female

HDMI

Video 1280 x 720 and 640 x 480 resolution

Device Indicators

4 LEDs indicating the enabled antennas, Application LED, Connection LED, Extension port LED, Power LED, RF LED

UNSPSC

43211701

Ingress Protection Rating

IP20

RoHS Compliance Status

Compliant with Directive 2011/65/EU and 2015/863

Note

Note: Please read description carefully. Do not base your order on the picture presented.
