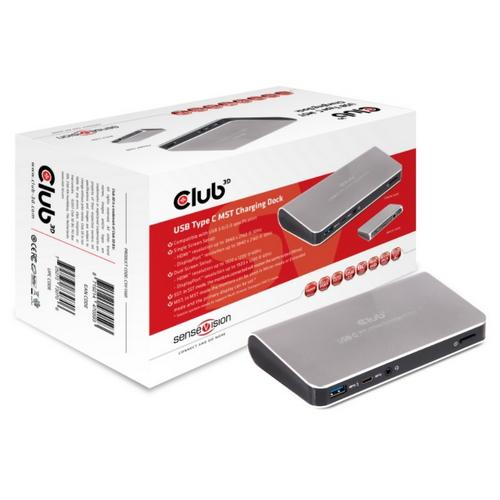

CLUB 3D CSV-1560 USB Type C MST Charging Dock

CSV-1560 Includes Only:

• USB Type C MST Charging Dock
• Power Adapter
• USB-C Cable
• Quick install guide

Features:

• Single display
• - DP output: Supports 4K resolution up to 3840 x 2160 at 30Hz
  • - HDMI output: Supports 4K resolution up to 3840 x 2160 at 30Hz
• Dual display - Supports resolutions up to 1920 x 1200 at 60Hz
• SST; In SST mode, the external monitors connected will receive the same output (Mirror).
• MST; In MST Mode you can use Mirror mode or Extended mode and set the primary display.
• Supports audio 2.1 channel
• Supports Gigabit Ethernet 10/100/1000
• Supports Upstream Charging up to 60 Watt
• Supports Downstream Charging BC 1.2 fast charge

CSV-1560 The Universal USB Type C MST Charging Dock is designed for extra connectivity demands. With the CSV-1560, you can extend the connection of a computer to more USB peripherals, Ethernet network, speaker and the microphone via USB-C interface. Adopting PD Charging technology, upstream charging function through USB-C interface, you can charge the connected cell phone / tablet / laptop.

With the built-in USB 3.0 ports, the dock enables you to enjoy the super speed data transmission between USB peripherals. With the DP or HDMI ports, you can mirror your primary screen, or extend the content. When the system supports MST mode, you can display identical or different content on the external monitors as you wish.

Enhanced expansion capability plus the stylish appearance, this dock with video is the most versatile accessory that also complements your (home)office space.

Charging

Laptops / UltraBooks / Tablets often have limited connectivity possibilities. By adopting PD Charging technology and upstream-charging function through USB Type C interface the Club3D USB Type C MST Charging Dock offers unique functionality. It means you can charge your source Laptop / Tablet thru the Docking Station, as well as make use of all of the (downstream) features of the Docking Station at the same time.

Give your Ultrabook more displays

Ultrabooks and notebooks are increasingly becoming more powerful and smaller in the physical form factor. With a single USB 3.0 port.

USB Type C MST Charging Dock
