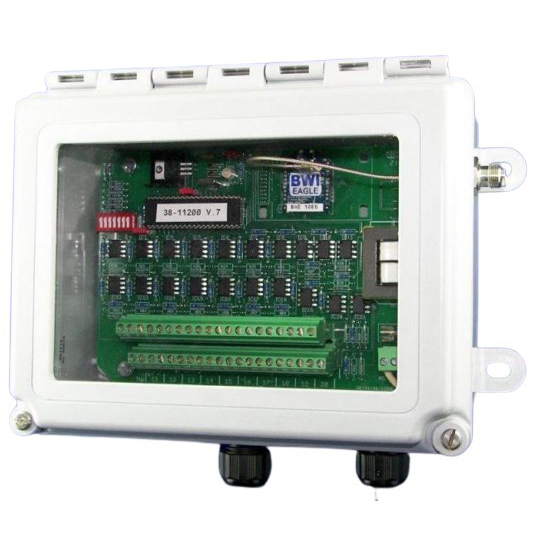

BWI Eagle, 441-12000-120VAC, Air-Eagle XLT 900MHz Transmitter, 20 Contact Inputs, 120VAC Powered

Features:

The AIR-EAGLE XLT PLUS, MODEL 441-12000-120VAC RF TRANSMITTER IS a dry contact input transmitter designed to send up to twenty independent commands to an Air-Eagle Receiver(s) that can be located up to 2500 feet away.
Any number of transmitters and receivers can be combined to create a system.
The Air-Eagle XLT TX is user-programmable for up to eight network frequencies to allow multiple systems to operate simultaneously in the same area.
Utilizing spread-spectrum technology this unit provides the utmost security and reliability even in the noisiest RF environments.

For more information, please see Data Sheet

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

AC Input	120 VAC, 16 W, 50/60 Hz
Fuse Protected	1 amp
Transmitter Frequency	900 MHz Spread Spectrum
Input Channels	20 Dry Contact Inputs
Transmit Range	Up to 2500 Feet w/Standard Antenna
RF Output Power	250 mW
RF Networks	8 Independent Frequencies
Enclosure	Hinged fiberglass with window / NEMA 3, 3R, 4, 12, 13
Operating Temperature	-40° F to +185° F
Weight	Approx 3.83 lbs.

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

AC Input	120 VAC, 16 W, 50/60 Hz
Fuse Protected	1 amp
Transmitter Frequency	900 MHz Spread Spectrum
Input Channels	20 Dry Contact Inputs
Transmit Range	Up to 2500 Feet w/Standard Antenna
RF Output Power	250 mW
RF Networks	8 Independent Frequencies
Enclosure	Hinged fiberglass with window / NEMA 3, 3R, 4, 12, 13
Operating Temperature	-40° F to +185° F
Weight	Approx 3.83 lbs.
