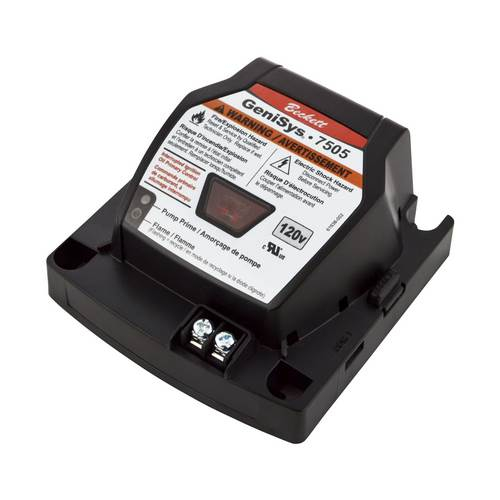

Beckett 7505P152MU GeniSys 7505 120V Oil Primary Control

Beckett, 7505P152MU, GeniSys 7505 120V Oil Primary Control with 2min Motor-off Delay Time

Features:

• Water Resistant
• Thermostat and boiler control compatible
• Customizable pre-time and post-time
• Three status lights for system monitoring and diagnostics
• Welded relay protection with redundant motor relays
• Limited reset and limited recycle
• Sleek, modern design
• Technician Pump Prime mode
• Two communication ports for adding alarm contacts, programming display, and/or future

The Beckett GeniSys® 7505 Oil Burner Control is a 120 VAC primary safety control for residential and light commercial oil burners used in boiler, furnace, and water heater applications. The GeniSys® 7505 is used with the GeniSys® CAD Cell Flame Detector Kit 7006U to control the oil burner's motor, igniter, and optional solenoid valve. It has front-mounted, 24 VAC thermostat terminals compatible with both mechanical and many power-stealing thermostats. The control operates the burner with interrupted ignition with a 15-second lockout time.

With the GeniSys® 52082 Contractor Tool or the BeckettLink® Pro Contractor Tool 7652, the control can be programmed with pre-purge and post-purge timings. For diagnostics, the GeniSys® 7505 stores the last 15 cycles.
