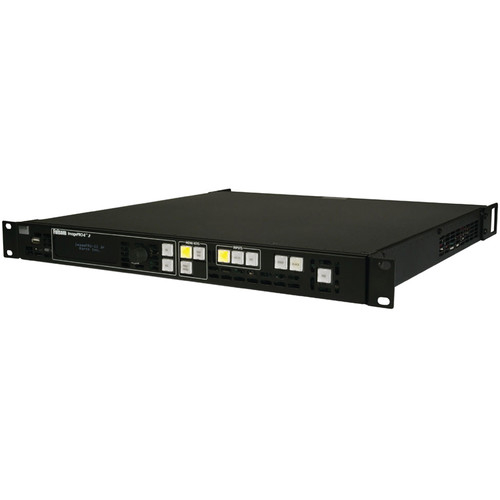

Barco R9004695 ImagePRO-II Jr Video Scaler, Scan Converter, Switcher

  • Brand Barco
  • Part # R9004695
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Quantity
Share:
Ask a question

The Barco ImagePRO-II Jr. is an advanced high performance all-in-one video scaler, scan converter, switcher and transcoder converting any input signal format to any output format. ImagePRO-II supports Universal Analog, DVI single and dual link, HDMI, DisplayPort and SD/HD/3G SDI signal formats. Loop-through outputs are provided for the Analog, DVI and SDI input and genlock signals. The ImagePRO-II also features HDCP and EDID management, USB back up and restore, multiple video effects and a web page interface.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final
All sales are final
  • These are made-to-order items.
  • This product is not eligible for return or exchange unless defective.
  • The average lead-time is 1 or 2 weeks.

Technical Details

Reviews
Subject to the use of all the optional accessories
DVI1 x DVI-I Digital Formats: all single-link DVI digital formats up to 165 Mhz, per DVI 1.0 Specification Analog Formats: NTSC/PAL composite and Y/C video, SD YPbPR with bi-level sync, HD YPbPr with tri-level sync, RGBHV/RGBS/RGsB computer video with bi-level sync Analog Sampling: sources with pixel rates up to 170 Mhz are sampled 1:1; sources with pixel rates above 170 Mhz are filtered and sampled at 170 Mhz, including but not limited to 1920x1200p, 2048x1080p Active loop-through output of all input signals, including HDCP and EDID EDID version 1.3 compatible HDCP version 1.4 compatible
VGA1 x HD-15 VGA port Formats: NTSC/PAL composite and Y/C video SD YPbPr with bi-level sync HD YPbPr with tri-level sync per SMPTE 274, RGBHV/RGBS/RGsB computer video with bi-level sync Sampling: sources with pixel rates up to 170 Mhz are sampled 1:1; sources with pixel rates above 170 Mhz are filtered and sampled at 170 Mhz, including but not limited to: 1920x1200p, 2048x1080p Active loop-through output of all input signals EDID version 1.3 compatible
SDI1 x BNC port Formats: SD-SDI per SMPTE 259M-C (NTSC/PAL resolution); HD-SDI per SMPTE 292M, 296M; 3G-SDI per SMPTE 424 Re-clocked loop-through output
SDIFormats: SD-SDI per SMPTE 259M-C (NTSC/PAL resolution); HD-SDI per SMPTE 292M, 296M; 3G-SDI per SMPTE 424
DVIFormats: all single-link DVI digital formats up to 165 Mhz, per DVI 1.0 specification EDID version 1.3 compatible HDCP version 1.4 compatible
VGAFormats: NTSC/PAL composite on green, NTSC/PAL Y/C video with bi-level sync on Y only, (Y: Green, C: Red); SD YPbPr with bi-level sync; HD YPbPR with tri-level sync per SMPTE 274; RGBHV/RGBS/RGsB computer video with bi-level sync EDID version 1.3 compatible
GenlockAnalog Ref Input/Loop/Output on BNC connectors; Bi-level and Blackburst at SD and Tri-level at HD or locked to any input
Remote ControlUSB 1.1 Ethernet RJ-45, 10/100 Mbps Autosense Computer, tablet, smartphone, or external Encore or ScreenPRO-II Controller via Ethernet link Control functions include: source input configuration, output format selection, test pattern selection, transition effect selection and control
Input Power100-240 VAC, 47-63 Hz, auto-selecting 2.0A maximum
Environmental32 to 104°F / 0 to 40°C 0 to 95% humidity, noncondensing
Dimensions1.75 x 17 x 18.5" / 4.4 x 43.2 x 47 cm
Weight15.75 lb / 7.1 kg
Product Details
Subject to the use of all the optional accessories
DVI1 x DVI-I Digital Formats: all single-link DVI digital formats up to 165 Mhz, per DVI 1.0 Specification Analog Formats: NTSC/PAL composite and Y/C video, SD YPbPR with bi-level sync, HD YPbPr with tri-level sync, RGBHV/RGBS/RGsB computer video with bi-level sync Analog Sampling: sources with pixel rates up to 170 Mhz are sampled 1:1; sources with pixel rates above 170 Mhz are filtered and sampled at 170 Mhz, including but not limited to 1920x1200p, 2048x1080p Active loop-through output of all input signals, including HDCP and EDID EDID version 1.3 compatible HDCP version 1.4 compatible
VGA1 x HD-15 VGA port Formats: NTSC/PAL composite and Y/C video SD YPbPr with bi-level sync HD YPbPr with tri-level sync per SMPTE 274, RGBHV/RGBS/RGsB computer video with bi-level sync Sampling: sources with pixel rates up to 170 Mhz are sampled 1:1; sources with pixel rates above 170 Mhz are filtered and sampled at 170 Mhz, including but not limited to: 1920x1200p, 2048x1080p Active loop-through output of all input signals EDID version 1.3 compatible
SDI1 x BNC port Formats: SD-SDI per SMPTE 259M-C (NTSC/PAL resolution); HD-SDI per SMPTE 292M, 296M; 3G-SDI per SMPTE 424 Re-clocked loop-through output
SDIFormats: SD-SDI per SMPTE 259M-C (NTSC/PAL resolution); HD-SDI per SMPTE 292M, 296M; 3G-SDI per SMPTE 424
DVIFormats: all single-link DVI digital formats up to 165 Mhz, per DVI 1.0 specification EDID version 1.3 compatible HDCP version 1.4 compatible
VGAFormats: NTSC/PAL composite on green, NTSC/PAL Y/C video with bi-level sync on Y only, (Y: Green, C: Red); SD YPbPr with bi-level sync; HD YPbPR with tri-level sync per SMPTE 274; RGBHV/RGBS/RGsB computer video with bi-level sync EDID version 1.3 compatible
GenlockAnalog Ref Input/Loop/Output on BNC connectors; Bi-level and Blackburst at SD and Tri-level at HD or locked to any input
Remote ControlUSB 1.1 Ethernet RJ-45, 10/100 Mbps Autosense Computer, tablet, smartphone, or external Encore or ScreenPRO-II Controller via Ethernet link Control functions include: source input configuration, output format selection, test pattern selection, transition effect selection and control
Input Power100-240 VAC, 47-63 Hz, auto-selecting 2.0A maximum
Environmental32 to 104°F / 0 to 40°C 0 to 95% humidity, noncondensing
Dimensions1.75 x 17 x 18.5" / 4.4 x 43.2 x 47 cm
Weight15.75 lb / 7.1 kg
Note

Note: Please read description carefully. Do not base your order on the picture presented.
