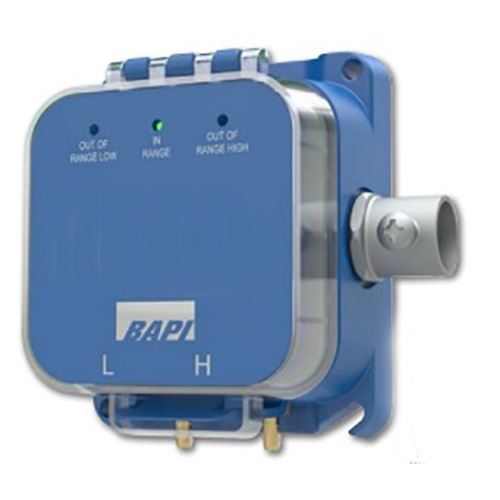

BAPI, BA-ZPM-SR-AT-ND, Zone Pressure Multi-Sensor, Standard Range, with Attached Static Probe, No Display

Features:

10 Pressure Ranges and 5 Output Options
Standard, Low and High Range Models
Non-Flow-Through Sensor so There's No Cross Contamination of Air
Outputs, Ranges and Units all Easily Set in the Field Without Power
NIST Certificate Included with With Each Unit at No Extra Charge
Thumb Latch Closure - No Cover Screws to Lose
Optional Display Aids in Troubleshooting by Showing the Actual Pressure Regardless of the Selected Range
Three LEDs to Indicate Current Pressure Status Without Having to Access the BAS

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Power

7 to 40 VDC (4 to 20 mA Output)
7 to 40 VDC or 18 to 32 VAC (0 to 5 or 1 to 5 VDC Output)
13 to 40 VDC or 18 to 32 VAC (0 to 10 or 2 to 10 VDC Output)

Power Consumption

20 mA max, DC only at 4 to 20 mA Output
5.2 mA max DC at 0 to 5 or 0 to 10 VDC Output
0.12 VA max AC at 0 to 5 or 0 to 10 VDC Output

Load Resistance

4 to 20 mA Output 850 ohms Maximum at 24 VDC
0 to 5 or 0 to 10 VDC Output 6Kohms Minimum

Accuracy

Standard Range Unit: +-0.025" WC (+-6.22 Pa)

Stability

+-0.25% FS per year

Overpressure

Standard Range: Proof 300" WC (74 kPa)

Media

Clean, dry, non-corrosive gases

Compensated Temperature Range

32 to 122°F (0 to 50°C)

Environmental Operating Range

-4 to 140°F (-20 to 60°C)

Storage Temperature

-40 to 185°F (-40 to 85°C)

Humidity

0 to 95% RH, non-condensing

Wiring

2 wires (4 to 20mA Current loop) 3 wires (AC or DC powered, VDC output)

Port Size

1/4" barb

Enclosure Material

UV-resistant Polycarbonate, UL94 V-0

Enclosure Rating

IP44, NEMA 2

Agency

CE EN 61326-1

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Power

7 to 40 VDC (4 to 20 mA Output)
7 to 40 VDC or 18 to 32 VAC (0 to 5 or 1 to 5 VDC Output)
13 to 40 VDC or 18 to 32 VAC (0 to 10 or 2 to 10 VDC Output)

Power Consumption

20 mA max, DC only at 4 to 20 mA Output
5.2 mA max DC at 0 to 5 or 0 to 10 VDC Output
0.12 VA max AC at 0 to 5 or 0 to 10 VDC Output

Load Resistance

4 to 20 mA Output 850 ohms Maximum at 24 VDC
0 to 5 or 0 to 10 VDC Output 6Kohms Minimum

Accuracy

Standard Range Unit: +-0.025" WC (+-6.22 Pa)

Stability

+-0.25% FS per year

Overpressure

Standard Range: Proof 300" WC (74 kPa)

Media

Clean, dry, non-corrosive gases

Compensated Temperature Range

32 to 122°F (0 to 50°C)

Environmental Operating Range

-4 to 140°F (-20 to 60°C)

Storage Temperature

-40 to 185°F (-40 to 85°C)

Humidity

0 to 95% RH, non-condensing

Wiring

2 wires (4 to 20mA Current loop) 3 wires (AC or DC powered, VDC output)

Port Size

1/4" barb

Enclosure Material

UV-resistant Polycarbonate, UL94 V-0

Enclosure Rating

IP44, NEMA 2

Agency

CE EN 61326-1

Note

Note: Please read description carefully. Do not base your order on the picture presented.
