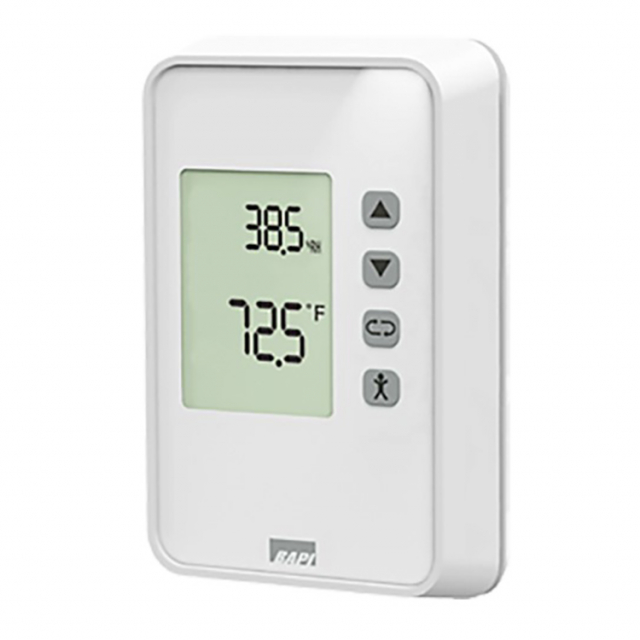

BAPI, BA-1K-H210-B4X-60L6-Z-CG, BAPI-Stat "Quantum Prime" Temperature and Humidity Sensor, 1K Platinum RTD, 385 curve, 0 to 10V Output, No Display, Cool/Warm, No Override, Common Ground

Features:

BAPI-Stat "Quantum Prime" Enclosure Style with Higher Contrast Display for Improved Clarity at Greater Distances
Membrane Keypad for Wipedown Cleaning
Temperature and Humidity Setpoint Adjustment

The BAPI-Stat "Quantum Prime" is designed for operating rooms, clean rooms, and eldercare facilities. It features a large display and membrane keypad for wipedown cleaning. It is reliable with temperature and humidity measurement, temperature and humidity setpoint, and occupant override. The unit includes a number of field adjustments including °F or °C display, temperature and humidity offset, and setpoint lockout. The display can also be set to show a large temperature and small %RH reading or a large %RH and a small temperature reading.

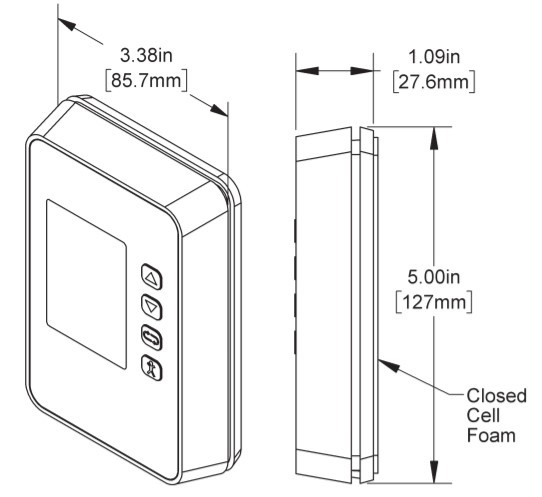

Dimensions:

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Reviews

Outputs: 4 active outputs plus 1 passive temp sensor
Volts	0 to 5 VDC or 0 to 10VDC, Impedance >10KΩ
Current	4 to 20 mA, Impedance <500° at 24 VDC
Resistance	Setpoint, 5 VDC at 5 mA max
Relay Contact	NO, 500 mA at 24 VDC max
Temp Sensor	Passive RTD
Inputs
External Override	5 VDC or 24 VDC/VAC
Sensing Elements for Active Outputs and Display
Temperature	1K Platinum RTD (385 curve)
Humidity Capacitive	Polymer, ±2%RH
Mounting	Standard 2"x4" junction box, European junction box, or drywall mount (screws provided)
Environmental Ambient
Temperature	32 to 122°F (0 to 50°C)
Humidity	0 to 95%, non-condensing
Storage	32 to 185°F (0 to 85°C)
Wiring	2 to 6 pairs of 16 to 22 AWG
Enclosure Material	ABS Plastic, UL 94, V-0
Agency	RoHS

Product Details

Outputs: 4 active outputs plus 1 passive temp sensor
Volts	0 to 5 VDC or 0 to 10VDC, Impedance >10KΩ
Current	4 to 20 mA, Impedance <500° at 24 VDC
Resistance	Setpoint, 5 VDC at 5 mA max
Relay Contact	NO, 500 mA at 24 VDC max
Temp Sensor	Passive RTD
Inputs
External Override	5 VDC or 24 VDC/VAC
Sensing Elements for Active Outputs and Display
Temperature	1K Platinum RTD (385 curve)
Humidity Capacitive	Polymer, ±2%RH
Mounting	Standard 2"x4" junction box, European junction box, or drywall mount (screws provided)
Environmental Ambient
Temperature	32 to 122°F (0 to 50°C)
Humidity	0 to 95%, non-condensing
Storage	32 to 185°F (0 to 85°C)
Wiring	2 to 6 pairs of 16 to 22 AWG
Enclosure Material	ABS Plastic, UL 94, V-0
Agency	RoHS
