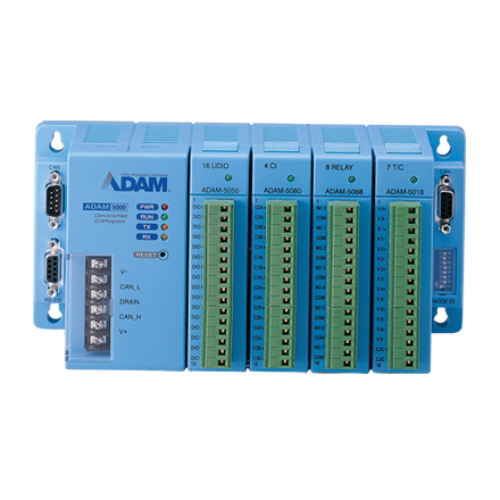

Buy B+B SmartWorx ADAM-5000/485-AE, 4-Slot Distributed DA&C System, 16-Bit

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

RS-485 communication for easy installation and networking
4 slots for up to 64 points data monitoring card control in one module
Supports ADAM ASCII protocol or Modbus®/RTU protocol
Supports Modbus/RTU protocol with user-defined Modbus address
Extensive software support, includes windows DLL drivers, OCX drivers, OPC server and popular HMI/SCADA software drivers
Seamlessly integrated with easy-to-use ADAMView data acquisition software

The ADAM-5000/485 and ADAM-5000E systems conform to the EIA RS-485 communication standard. This is the industry's most widely used, balanced, bidirectional transmission line standard. RS-485 was specifically developed for industrial applications to transmit and receive data at high rates over long distances.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Environment
Operating Temperature	-10~70 °C (14~158 °F)
Storage Temperature	-25~85 °C (-13~185 °F)
General
Connectors	1 x DB9-M/DB9-F/screw terminal for RS-485 (communication), 1 x DB9-F for RS-232 (configuration), 1 x screw terminal for power input
Humidity (Operating)	5~95% RH (non-condensing)
Humidity (Storage)	5~95% RH (non-condensing)
Hardware
Certification	CE, FCC class A
CPU	16-bit 80188 microprocessor
Expansion	4 x I/O Slot
I/O	1 x RS-232, 1 x RS-485
LED Indicators	Power, RUN, Communications
Power Input	10~30 VDC
Watchdog Timer	1.6 s
Mechanical
Dimension (W x H x D)	231 x 110 x 75 mm
Enclosure	PC + ABS
Mounting	Wall, DIN-rail

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Environment
Operating Temperature	-10~70 °C (14~158 °F)
Storage Temperature	-25~85 °C (-13~185 °F)
General
Connectors	1 x DB9-M/DB9-F/screw terminal for RS-485 (communication), 1 x DB9-F for RS-232 (configuration), 1 x screw terminal for power input
Humidity (Operating)	5~95% RH (non-condensing)
Humidity (Storage)	5~95% RH (non-condensing)
Hardware
Certification	CE, FCC class A
CPU	16-bit 80188 microprocessor
Expansion	4 x I/O Slot
I/O	1 x RS-232, 1 x RS-485
LED Indicators	Power, RUN, Communications
Power Input	10~30 VDC
Watchdog Timer	1.6 s
Mechanical
Dimension (W x H x D)	231 x 110 x 75 mm
Enclosure	PC + ABS
Mounting	Wall, DIN-rail

Note

Note: Please read description carefully. Do not base your order on the picture presented.
