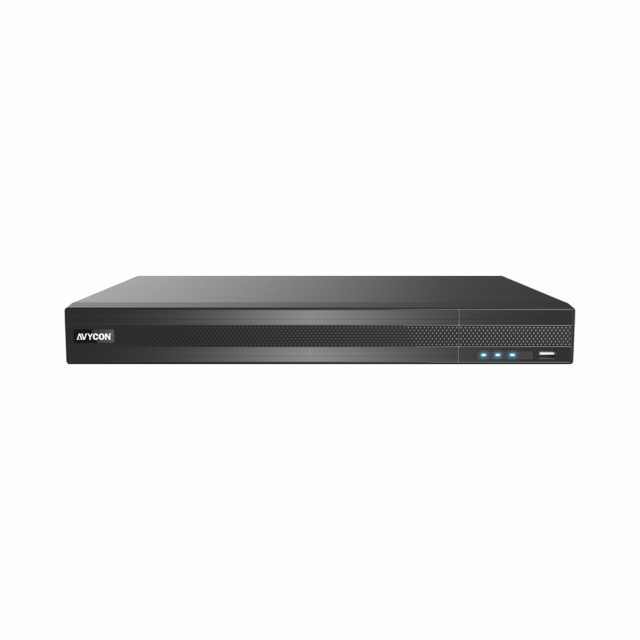

Buy AVYCON AVR-NT516A-24T, 16 CH. All-in-One Digital Video Recorder, 24 TB

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Avycon, AVR-NT516A-24T, 16 CH. HD All-in-One Digital Video Recorder, 24 TB

Features:

5MP Lite / 4MP Lite / 1080P / 960P / 720P / WD1 HD-Analog Input
Add Up to 4 Additional IP Cameras
H.265 High Profile Compression for High Megapixel on Low Bit Rate
4 Channels Simultaneous Playback
Intuitive GUI (Graphic User Interface) with Windows Style, Easy Mouse Operation
Multi-Mode Recording: Manual / Timer / Motion / Sensor
Various Search Features: Time Slice, Manual, Time, Tag and Event (Motion, Alarm, Sensor)
One-Touch Flexible Backup via USB and Network
Pentaplex Operation: Live, Record, Playback, Backup and Remote Access
DHCP, PPPoE Network Protocol, UPnP Auto Port Forwarding
Supports Multiple Online Users
Dual Streaming Technology for High Definition Recording and Smooth Video Transmission
Avycon / ONVIF® IP Camera Support up to 5MP
Multi-User Support with Different User-Level Management
HDMI & VGA 2K Output for High Definition Resolution Display
Full Interactive PTZ Function with OSD Menu, Preset, Scan and Tour
All-in-One Video Management Software for NVR, DVR and IP Cameras
Professional HD Mobile App for Apple® and Android® Devices

Dimensions:

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Video

Video-Input

16 Channels (BNC)

IP Channel

8 Additional

Output

HDMI1: 1920 x 1080 / 1280 x 1024 / 1024 x 768
VGA x 1: 1920 x 1080 / 1280 x 1024 BNC x 1: CVBS (Used as Main or Spot Output)

HD-Analog Input Resolution

TVI / AHD: 5MP, 4MP, 1080P, 720P, WD1 Real-Time
CVI: 1080P, 720P Real-Time

IP Input Resolution

5MP / 4MP / 3MP / 1080P / 960P / 720P

Video Compression

Standard H.265

Audio

Network Input

8 Channel IPC Audio Input

Local Output

RCA x 1

2-Way Audio

1 Channel Audio Input

Recording

Resolution

5MP Lite / 4MP Lite / 1080P / 720P / WD1

Frame Rate Channels

5MP Lite: 10fps (PAL / NTSC)
4MP Lite / 1080p: 12fps (PAL) / 15fps (NTSC)
1080P Lite / 720P / WD1: 25fps (PAL) / 30fpsh (NTSC)

Frame Rate

25fps (PAL) / 30fps (NTSC)

Bit Rate

32Kbps ~ 5Mbps

Mode

Manual, Timer, Motion, Sensor

Playback

Smart Search

Highlight Colors to Display Camera Record in a certain period of time, Different Colors refer to Different Record Events

Search

Time slice / Time / Event / Tag Search

Function

Play, Pause, Fast Forward, Fast Rewind, Digital Zoom, etc.

Simultaneous Playback

Max 16 Channels

Alarm

Alarm Input

16 Channels Local Alarm Input; IPC Alarm Input Supported

Alarm Output

4 Channels

Alarm Trigger

Record, Snap, Preset, E-mail, etc.

Storage

HDD Interface

SATA x 2, Max 18T per HDD; e-SATA x 1

Backup

Network Backup

Yes

Local Backup

USB Flash Drive, USB Mobile HDD

Network

Interface

RJ45 10 / 100 Mbps x 1

Protocol

TCP/ IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP

External Interface

RS-485

Yes, Connect to PTZ or Keyboard

Remote Controller

Optional

USB

USB 2.0 x 1 (Front Panel), USB 2.0 x 1 (Rear Panel)

General

Power Supply

DC 12V

Power Consumption

≤15W (Without HDD)

Working Environment

14°~122°F (-10°~50° Celcius)

Working Humidity

10% ~ 90% (Non-Condensing)

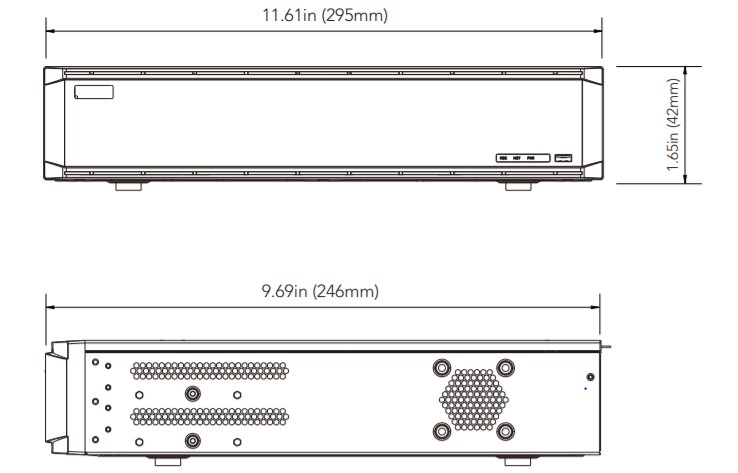

Dimensions

11.61" x 1.65" x 9.69" (295 mm x 42 mm x 246 mm)

Product Details

Video

Video-Input

16 Channels (BNC)

IP Channel

8 Additional

Output

HDMI1: 1920 x 1080 / 1280 x 1024 / 1024 x 768
VGA x 1: 1920 x 1080 / 1280 x 1024 BNC x 1: CVBS (Used as Main or Spot Output)

HD-Analog Input Resolution

TVI / AHD: 5MP, 4MP, 1080P, 720P, WD1 Real-Time
CVI: 1080P, 720P Real-Time

IP Input Resolution

5MP / 4MP / 3MP / 1080P / 960P / 720P

Video Compression

Standard H.265

Audio

Network Input

8 Channel IPC Audio Input

Local Output

RCA x 1

2-Way Audio

1 Channel Audio Input

Recording

Resolution

5MP Lite / 4MP Lite / 1080P / 720P / WD1

Frame Rate Channels

5MP Lite: 10fps (PAL / NTSC)
4MP Lite / 1080p: 12fps (PAL) / 15fps (NTSC)
1080P Lite / 720P / WD1: 25fps (PAL) / 30fpsh (NTSC)

Frame Rate

25fps (PAL) / 30fps (NTSC)

Bit Rate

32Kbps ~ 5Mbps

Mode

Manual, Timer, Motion, Sensor

Playback

Smart Search

Highlight Colors to Display Camera Record in a certain period of time, Different Colors refer to Different Record Events

Search

Time slice / Time / Event / Tag Search

Function

Play, Pause, Fast Forward, Fast Rewind, Digital Zoom, etc.

Simultaneous Playback

Max 16 Channels

Alarm

Alarm Input

16 Channels Local Alarm Input; IPC Alarm Input Supported

Alarm Output

4 Channels

Alarm Trigger

Record, Snap, Preset, E-mail, etc.

Storage

HDD Interface

SATA x 2, Max 18T per HDD; e-SATA x 1

Backup

Network Backup

Yes

Local Backup

USB Flash Drive, USB Mobile HDD

Network

Interface

RJ45 10 / 100 Mbps x 1

Protocol

TCP/ IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP

External Interface

RS-485

Yes, Connect to PTZ or Keyboard

Remote Controller

Optional

USB

USB 2.0 x 1 (Front Panel), USB 2.0 x 1 (Rear Panel)

General

Power Supply

DC 12V

Power Consumption

≤15W (Without HDD)

Working Environment

14°~122°F (-10°~50° Celcius)

Working Humidity

10% ~ 90% (Non-Condensing)

Dimensions

11.61" x 1.65" x 9.69" (295 mm x 42 mm x 246 mm)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
