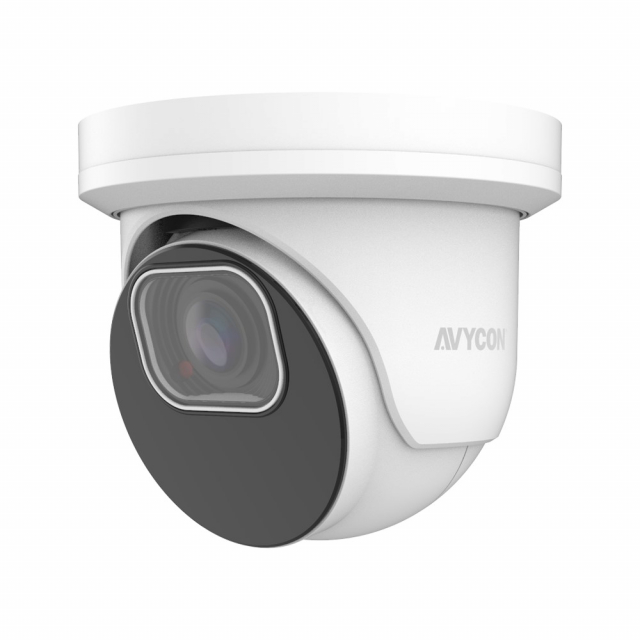

AVYCON AVC-TE21M 2MP HD-TVI Varifocal Turret Camera with Defog, White

Type: Camera with Defog, Colour: White
  • Brand AVYCON
  • Part # AVC-TE21M
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Quantity
Share:
Ask a question

Options and Related Products

Type:
Type: Camera with Defog
Colour:
Colour: White

Features:

  • 2MP (1920 x 1080)
  • Motorized Varifocal 2.7-13.5 mm Lens
  • HD-TVI / CVI / AHD / CVBS (Analog)
  • Easy-to-Use DIP Switch to Change Formats
  • True Day / Night
  • Smart IR Illumination Up to 115ft.
  • Digital NR
  • Defog
  • DWDR
  • IP67 Outdoor Rating
  • DC 12V (3W Consumption)
  • NDAA Compliant

The Second Generation HD-TVI Series continues providing the quality expected from the Avycon brand. This 1080P Camera includes an upgraded Smart IR LED array, the DIP switch design for easily changing Video formats (HD-TVI, CVI, AHD and Analog), and a sleek magnetic ring designed to hide all mounting screws from view and create a seamless body look. With the generation chipset and board design, we have also increased power efficiency with a possible 20% savings in consumption. This Camera also includes a motorized 2.7 mm-13.5 mm Varifocal Lens with Autofocus capabilities that can be controlled through the DVR.

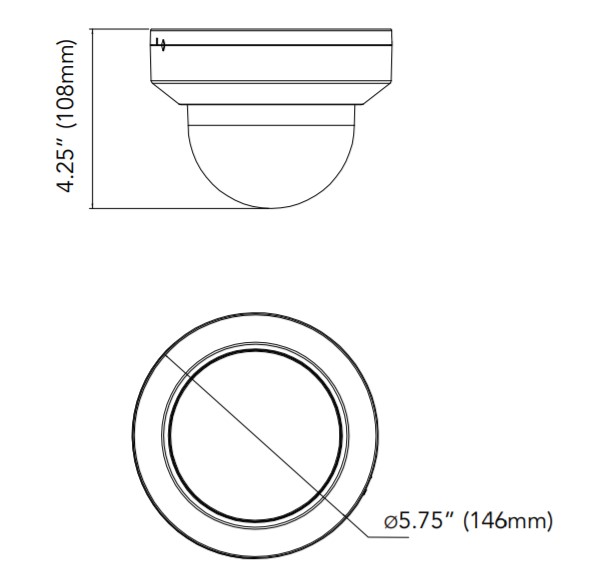

Dimensions:

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories
Reviews
Camera
Image Sensor1/2.7" Progressive Scan Cmos
Resolution2MP
Image Size1920 x 1080
Video Output1-channel BNC Video Output
Image SystemPAL / NTSC
Electronic Shutter1/15s to 1/50,000s
IR DistanceUp to 115ft.
Video FormatsHD-TVI / AHD / CVI / CVBS (Analog)
Frame RateHD-TVI / AHD / CVI / CVBS (Analog): 30 FPS
Min. Illumination0.01 Lux at F1.0 (AGC ON), 0 Lux with IR ON
LensMotorized 2.7 - 13.5 mm Lens
Lens Mountφ14 mm
S/N Ratio40dB
Function ControlOSD, Control over Coax (UTC)
Day and NightEXT / Auto / Color / BW (Black and White)
Digital WDRYes
Digital NRYes (3D DNR)
Auto Gain Control (AGC)Yes
Auto White Balance (AWB)Yes
Backlight Compensation (BLC)Yes
Edge Brightness CompensationYes
DefogYes
HLCNo
SharpnessYes
Mirror ImageYes
Smart IR (Anti-SAT)Yes
Image SettingYes
Defect CorrectionAuto / Manual
General
Angle AdjustmentAny Angle
Input VoltageDC 12V (±10%)
Power ConsumptionMaximum 3W
Ingress ProtectionIP67
Working Temperature-22°~131° F (-30°~55° Celcius)
Dimensions4.96" x 3.15" (126.0 mm x 80.0 mm)
Product Details
Camera
Image Sensor1/2.7" Progressive Scan Cmos
Resolution2MP
Image Size1920 x 1080
Video Output1-channel BNC Video Output
Image SystemPAL / NTSC
Electronic Shutter1/15s to 1/50,000s
IR DistanceUp to 115ft.
Video FormatsHD-TVI / AHD / CVI / CVBS (Analog)
Frame RateHD-TVI / AHD / CVI / CVBS (Analog): 30 FPS
Min. Illumination0.01 Lux at F1.0 (AGC ON), 0 Lux with IR ON
LensMotorized 2.7 - 13.5 mm Lens
Lens Mountφ14 mm
S/N Ratio40dB
Function ControlOSD, Control over Coax (UTC)
Day and NightEXT / Auto / Color / BW (Black and White)
Digital WDRYes
Digital NRYes (3D DNR)
Auto Gain Control (AGC)Yes
Auto White Balance (AWB)Yes
Backlight Compensation (BLC)Yes
Edge Brightness CompensationYes
DefogYes
HLCNo
SharpnessYes
Mirror ImageYes
Smart IR (Anti-SAT)Yes
Image SettingYes
Defect CorrectionAuto / Manual
General
Angle AdjustmentAny Angle
Input VoltageDC 12V (±10%)
Power ConsumptionMaximum 3W
Ingress ProtectionIP67
Working Temperature-22°~131° F (-30°~55° Celcius)
Dimensions4.96" x 3.15" (126.0 mm x 80.0 mm)
Optional Accessories

Optional Accessories

Note

Note: Please read description carefully. Do not base your order on the picture presented.
