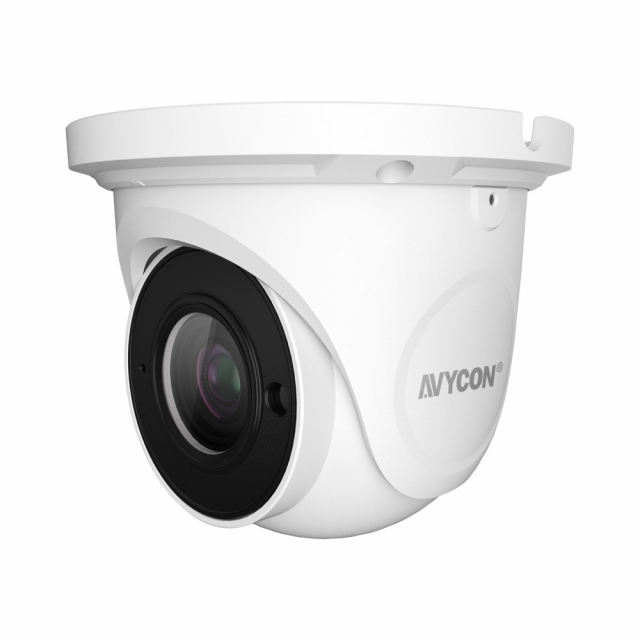

AVYCON AVC-TE21F36-G 2MP HD-TVI Fixed Turret Camera, Gray, 3.6mm Lens

Lens: 3.6 mm, Colour: Gray
  • Brand AVYCON
  • Part # AVC-TE21F36-G
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    Options and Related Products

    Lens:
    Lens: 3.6 mm
    Colour:
    Colour: Gray

    Features:

    • 2MP (1920 x 1080)
    • Fixed 3.6 mm Lens
    • HD-TVI / CVI / AHD / CVBS (Analog)
    • Easy-to-Use DIP Switch to Change Formats
    • True Day / Night
    • Smart IR Illumination Up to 66ft.
    • Digital NR
    • Defog
    • DWDR
    • IP67 Outdoor Rating
    • DC 12V (3W Consumption)
    • NDAA Compliant

    The Second Generation HD-TVI Series continues providing the quality expected from the Avycon brand. This 1080P Camera includes an upgraded Smart IR LED array, the DIP switch design for easily changing Video formats (HD-TVI, CVI, AHD and Analog), and a sleek magnetic ring designed to hide all mounting screws from view and create a seamless body look. With the generation chipset and board design, we have also increased power efficiency with a possible 20% savings in consumption.

    Dimensions:

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    All sales are final
    All sales are final
    • These are made-to-order items.
    • This product is not eligible for return or exchange unless defective.
    • The average lead-time is 1 or 2 weeks.

    Technical Details

    Optional Accessories
    Reviews
    Camera
    Image Sensor1/2.7" Progressive Scan Cmos
    Resolution2MP
    Image Size1920 x 1080
    Video Output1-channel BNC Video Output
    Image SystemPAL / NTSC
    Electronic Shutter1/15s to 1/50,000s
    IR DistanceUp to 66ft.
    Video FormatsHD-TVI / AHD / CVI / CVBS (Analog)
    Frame RateHD-TVI / AHD / CVI / CVBS (Analog): 30 FPS
    Min. Illumination0.01 Lux F1.2 (AGC ON), 0 Lux with IR ON
    LensFixed 3.6 mm Lens
    Lens MountM12
    S/N Ratio40dB
    Function ControlOSD, Control over Coax (UTC)
    Day and NightEXT / Auto / Color / BW (Black and White)
    Digital WDRYes
    Digital NRYes (3D DNR)
    Auto Gain Control (AGC)Yes
    Auto White Balance (AWB)Yes
    Backlight Compensation (BLC)Yes
    Edge Brightness CompensationYes
    DefogNo
    HLCNo
    SharpnessYes
    Mirror ImageYes
    Smart IR (Anti-SAT)Yes
    Image SettingYes
    Defect CorrectionAuto / Manual
    General
    Angle AdjustmentAny Angle
    Input VoltageDC 12V (±10%)
    Power ConsumptionMaximum 3W
    Ingress ProtectionIP67
    Working Temperature-22°~131° F (-30°~55° Celcius)
    Dimensions3.92" x 3.32" (100.5 mm x 85.2 mm)
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    Camera
    Image Sensor1/2.7" Progressive Scan Cmos
    Resolution2MP
    Image Size1920 x 1080
    Video Output1-channel BNC Video Output
    Image SystemPAL / NTSC
    Electronic Shutter1/15s to 1/50,000s
    IR DistanceUp to 66ft.
    Video FormatsHD-TVI / AHD / CVI / CVBS (Analog)
    Frame RateHD-TVI / AHD / CVI / CVBS (Analog): 30 FPS
    Min. Illumination0.01 Lux F1.2 (AGC ON), 0 Lux with IR ON
    LensFixed 3.6 mm Lens
    Lens MountM12
    S/N Ratio40dB
    Function ControlOSD, Control over Coax (UTC)
    Day and NightEXT / Auto / Color / BW (Black and White)
    Digital WDRYes
    Digital NRYes (3D DNR)
    Auto Gain Control (AGC)Yes
    Auto White Balance (AWB)Yes
    Backlight Compensation (BLC)Yes
    Edge Brightness CompensationYes
    DefogNo
    HLCNo
    SharpnessYes
    Mirror ImageYes
    Smart IR (Anti-SAT)Yes
    Image SettingYes
    Defect CorrectionAuto / Manual
    General
    Angle AdjustmentAny Angle
    Input VoltageDC 12V (±10%)
    Power ConsumptionMaximum 3W
    Ingress ProtectionIP67
    Working Temperature-22°~131° F (-30°~55° Celcius)
    Dimensions3.92" x 3.32" (100.5 mm x 85.2 mm)
