Buy AVYCON AVC-NSE21M, 2MP H.265 Motorized Eyeball Network Camera with FD

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Type:: Type: Motorized

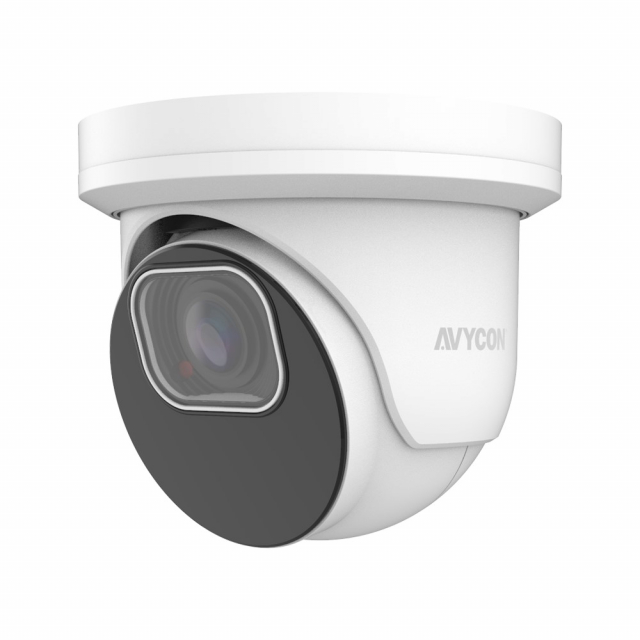

Avycon, AVC-NSE21M, 2MP H.265 Motorized Eyeball Network Camera with Face Detection

Features:

Max. Resolution: 1920 x 1080
Supports Smart H.265/H.264 Encoding
True Day & Night ICR
Up to 147 ft. IR Illumination
Motorized Varifocal 2.7-13.5mm Lens
3D DNR, True WDR, HLC, BLC, and ROI Encoding
Supports Triple Streams
Supports Remote Access with Windows, macOS, iOS, and Android
IP67 Ingress Protection
Operating Temperature: -22°F - 131°F (-30°- 55°C)
DC12V / PoE (802.3af, ≤6W)
Built-in MicroSD Card Slot
Built-in Reset Button
NDAA Compliant

The Avycon AVC-NSE21M camera is a 2MP H.265 Eyeball Network Camera. This 2MP IP camera supports True Day and Night mode, PoE, and up to 147ft. of Smart IR Illumination, and also incorporates an InfiniteStar sensor which allows viewing of video in the lowest of light environments, even in color. This camera includes a Motorized 2.7-13.5mm Lens with Auto-focus capabilities that can be controlled through an NVR. Also standard with this series are Digital NR, ROI, HLC, DWDR, and BLC capabilities.

Technology:

Dimensions:

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Camera
Image Sensor	1/2.7" Progressive Scan CMOS
Resolution	2MP
Image Size	1920 x 1080
Min. Illumination	Color: 0.05lux at F1.2(AGC ON) BW: 0lux w IR ON
Shutter Speed	1/20,000s ~ 1/5s
Slow Shutter	Supported
IR Distance	Up to 147 ft. (45m)
Lens	Motorized Varifocal 2.7-13.5mm
Field of View	Horizontal: 101 ~ 32°, Vertical: 71 ~ 23°, Diagonal: 129 ~ 40°
WDR	120dB
Video Stream
Max. Image Resolution	1920 x 1080
Supported Resolutions	1920 x 1080, 1280 x 720, 640 x 480, 320 x 240 at 30fps
Main Stream	1920 x 1080, 1280 x 720
Sub Stream	1280 x 720, 640 x 480, 320 x 240
Third Stream	640 x 480, 320 x 240
Video Compression	H.265 / H.264
Video Bit Rate	8 Kbps ~ 8 Mbps (CBR / VBR Adjustable)
Max. Framerate	50Hz: 25fps at5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA, 60Hz: 30fps at5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA
Network
Ethernet	1 x RJ45 10M / 100M(BASE-T)
ONVIF	ONVIF Profile S / G
Protocol	HTTP, HTTPs, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, PPPoE, DHCP
Security	IP Address Filter; Complicated Password; Authenticated Username and Password
Day and Night	IR cut filter with auto switch (Day/Night/Auto/Schedule)
True WDR	Yes
Digital NR	Yes (3D DNR)
Backlight Compensation (BLC)	Off/On (5 Zone)
Motion Detection	Off/On (8 Level)
Gain Control	Auto
White Balance	Auto/Manual/Indoor
Privacy Mask	Off/On (4 Zone, Rectangle)
Flip / Mirror	Flip/Corridor/Rotation
Sharpness	Yes
Image Setting	Yes
Language	Support for English and Korean
Video Analytics
Supported Recorders	Diversity Series
On-Board Storage	Micro SD slot, up to 256GB
Alarm/Audio	No / Built-in Microphone
Hardware Reset	Yes
Smart Feature	PID,LCD,PD/VD,FD
Smart Events	Human Detection, Face Detection, Vehicle Detection
Alarm Link Events	Motion Detection, Sensor Alarm
General
Angle Adjustment	Any Angle
Input Voltage	DC 12V / PoE (IEEE802.3af)
Power Consumption	≤6W
Ingress Protection	IP67
Working Temperature	-22°~131° F (-30°~55° C)

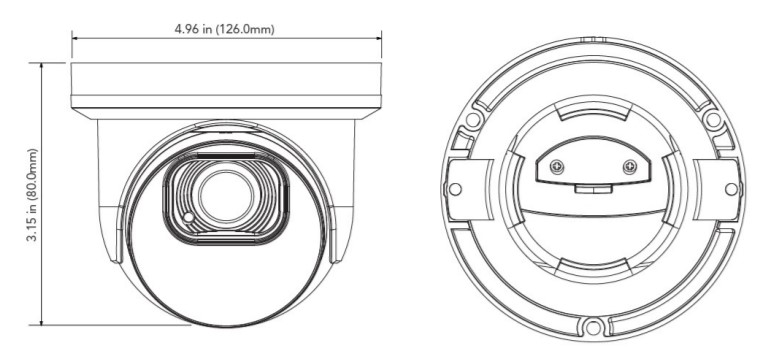

Dimensions	4.96" x 3.15" (126.0mm x 80.0mm)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Camera
Image Sensor	1/2.7" Progressive Scan CMOS
Resolution	2MP
Image Size	1920 x 1080
Min. Illumination	Color: 0.05lux at F1.2(AGC ON) BW: 0lux w IR ON
Shutter Speed	1/20,000s ~ 1/5s
Slow Shutter	Supported
IR Distance	Up to 147 ft. (45m)
Lens	Motorized Varifocal 2.7-13.5mm
Field of View	Horizontal: 101 ~ 32°, Vertical: 71 ~ 23°, Diagonal: 129 ~ 40°
WDR	120dB
Video Stream
Max. Image Resolution	1920 x 1080
Supported Resolutions	1920 x 1080, 1280 x 720, 640 x 480, 320 x 240 at 30fps
Main Stream	1920 x 1080, 1280 x 720
Sub Stream	1280 x 720, 640 x 480, 320 x 240
Third Stream	640 x 480, 320 x 240
Video Compression	H.265 / H.264
Video Bit Rate	8 Kbps ~ 8 Mbps (CBR / VBR Adjustable)
Max. Framerate	50Hz: 25fps at5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA, 60Hz: 30fps at5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA
Network
Ethernet	1 x RJ45 10M / 100M(BASE-T)
ONVIF	ONVIF Profile S / G
Protocol	HTTP, HTTPs, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, PPPoE, DHCP
Security	IP Address Filter; Complicated Password; Authenticated Username and Password
Day and Night	IR cut filter with auto switch (Day/Night/Auto/Schedule)
True WDR	Yes
Digital NR	Yes (3D DNR)
Backlight Compensation (BLC)	Off/On (5 Zone)
Motion Detection	Off/On (8 Level)
Gain Control	Auto
White Balance	Auto/Manual/Indoor
Privacy Mask	Off/On (4 Zone, Rectangle)
Flip / Mirror	Flip/Corridor/Rotation
Sharpness	Yes
Image Setting	Yes
Language	Support for English and Korean
Video Analytics
Supported Recorders	Diversity Series
On-Board Storage	Micro SD slot, up to 256GB
Alarm/Audio	No / Built-in Microphone
Hardware Reset	Yes
Smart Feature	PID,LCD,PD/VD,FD
Smart Events	Human Detection, Face Detection, Vehicle Detection
Alarm Link Events	Motion Detection, Sensor Alarm
General
Angle Adjustment	Any Angle
Input Voltage	DC 12V / PoE (IEEE802.3af)
Power Consumption	≤6W
Ingress Protection	IP67
Working Temperature	-22°~131° F (-30°~55° C)
Dimensions	4.96" x 3.15" (126.0mm x 80.0mm)
