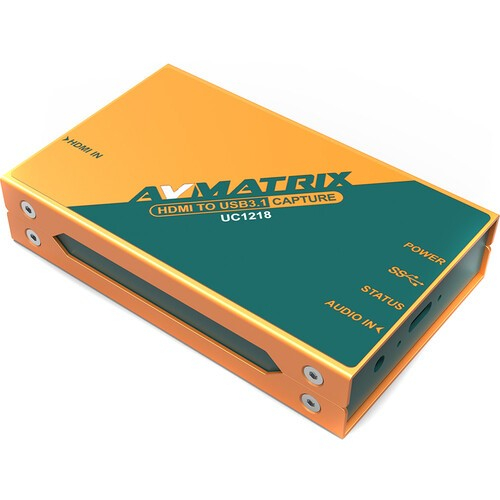

Buy AVMATRIX UC1218, HDMI to USB3.1 TYPE-C Uncompressed Video Capture

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Input/Output Connectors:: Input/Output Connectors: HDMI to USB3.1

UC1118 Includes Only:

UC1218 HDMI to USB 3.0 Video Capture
USB Type-A Cable

Features:

Plug-and-Play, driver free & power free
HDMI in, and USB 3.1 Gen1(USB3.0) out
Automatic input signal detection, up to 1080p60
Uncompressed transmission rate up to 200MB/s via USB 3.1 Gen1
Comply with UVC video capture and YUY2 video output
Comply with UAC audio out from HDMI embedded audio or line in
Compatible with Windows, Linux, macOS
Compatible with OBS, ZOOM, Teams & Twitch, etc.

For more information, please see Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Host Connection

USB Type-A (USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0)

Input

Video Input Connectors

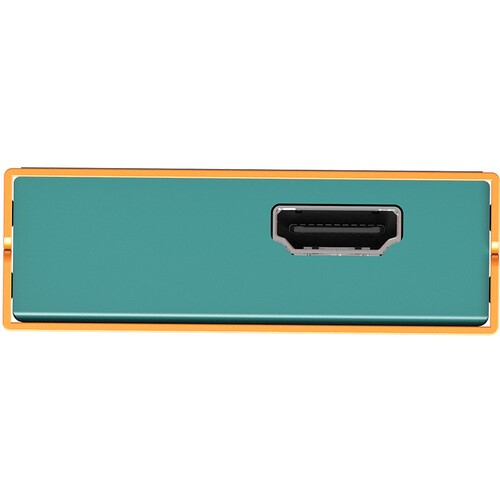

1 x HDMI

Input Video Format

HDMI

1080p: 24/25/30/50/60 fps
1080i: 50/60 fps
720p: 50/60 fps
576p
PAL
480p
NTSC

Audio Input Connectors

None

Embedded Audio Input

HDMI

Output

Output Video Format

USB Type-A

WUXGA (1920 x 1200): 25/29.97/30/50/59.94/60 fps
1080p: 25/29.97/30/50/59.94/60 fps
UXGA (1600 x 1200): 25/29.97/30/50/59.94/60 fps
WXGA+ (1440 x 900): 25/29.97/30/50/59.94/60 fps
WUXGA+ (1680 x 1050): 25/29.97/30/50/59.94/60 fps
1368 x 768: 25/29.97/30/50/59.94/60 fps
SXGA (1280 x 1024): 25/29.97/30/50/59.94/60 fps
1280 x 960: 25/29.97/30/50/59.94/60 fps
WXGA (1280 x 800): 25/29.97/30/50/59.94/60 fps
720p: 25/29.97/30/50/59.94/60 fps
XGA (1024 x 768): 25/29.97/30/50/59.94/60 fps
1024 x 576: 25/29.97/30/50/59.94/60 fps
SVGA (800 x 600): 25/29.97/30/50/59.94/60 fps
PAL (768 x 576): 25/29.97/30/50/59.94/60 fps
576p: 25/29.97/30/50/59.94/60 fps
480p: 25/29.97/30/50/59.94/60 fps
960 x 540: 25/29.97/30/50/59.94/60 fps
856 x 480: 29.97/30/50/59.94/60 fps
VGA (640 x 480): 25/29.97/30/50/59.94/60 fps
640 x 360: 25/29.97/30/50/59.94/60 fps

Embedded Audio Output

HDMI

Hardware

OS Compatibility

Windows 7
Windows 8
Windows 10
Linux 2.6.38 or Later
macOS 10.8 or Later

Power

Power Consumption

Device: 5 VDC (2.5 W)

Environmental

Operating Temperature

32 to 122°F / 0 to 50°C

Storage Temperature

32 to 140°F / 0 to 60°C

Operating Humidity

20 to 90%

General

Dimensions

3.9 x 2.2 x 0.6" / 98 x 56 x 16 mm

Weight

3.9 oz / 110 g

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Host Connection

USB Type-A (USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0)

Input

Video Input Connectors

1 x HDMI

Input Video Format

HDMI

1080p: 24/25/30/50/60 fps
1080i: 50/60 fps
720p: 50/60 fps
576p
PAL
480p
NTSC

Audio Input Connectors

None

Embedded Audio Input

HDMI

Output

Output Video Format

USB Type-A

WUXGA (1920 x 1200): 25/29.97/30/50/59.94/60 fps
1080p: 25/29.97/30/50/59.94/60 fps
UXGA (1600 x 1200): 25/29.97/30/50/59.94/60 fps
WXGA+ (1440 x 900): 25/29.97/30/50/59.94/60 fps
WUXGA+ (1680 x 1050): 25/29.97/30/50/59.94/60 fps
1368 x 768: 25/29.97/30/50/59.94/60 fps
SXGA (1280 x 1024): 25/29.97/30/50/59.94/60 fps
1280 x 960: 25/29.97/30/50/59.94/60 fps
WXGA (1280 x 800): 25/29.97/30/50/59.94/60 fps
720p: 25/29.97/30/50/59.94/60 fps
XGA (1024 x 768): 25/29.97/30/50/59.94/60 fps
1024 x 576: 25/29.97/30/50/59.94/60 fps
SVGA (800 x 600): 25/29.97/30/50/59.94/60 fps
PAL (768 x 576): 25/29.97/30/50/59.94/60 fps
576p: 25/29.97/30/50/59.94/60 fps
480p: 25/29.97/30/50/59.94/60 fps
960 x 540: 25/29.97/30/50/59.94/60 fps
856 x 480: 29.97/30/50/59.94/60 fps
VGA (640 x 480): 25/29.97/30/50/59.94/60 fps
640 x 360: 25/29.97/30/50/59.94/60 fps

Embedded Audio Output

HDMI

Hardware

OS Compatibility

Windows 7
Windows 8
Windows 10
Linux 2.6.38 or Later
macOS 10.8 or Later

Power

Power Consumption

Device: 5 VDC (2.5 W)

Environmental

Operating Temperature

32 to 122°F / 0 to 50°C

Storage Temperature

32 to 140°F / 0 to 60°C

Operating Humidity

20 to 90%

General

Dimensions

3.9 x 2.2 x 0.6" / 98 x 56 x 16 mm

Weight

3.9 oz / 110 g

Note

Note: Please read description carefully. Do not base your order on the picture presented.
