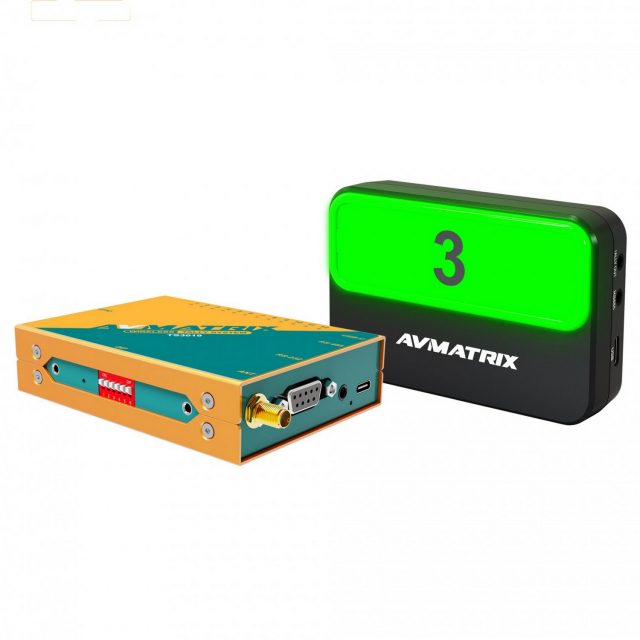

AVMATRIX TS3019 Wireless Multi-Camera Tally System

  • Brand AVMATRIX
  • Part # TS3019
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Quantity
Share:
Ask a question

Features:

  • Support 433Mhz wireless or wired tally connection
  • Up to 200m wireless connection distance (line-of-sight)
  • The tally box with multiple interfaces including GPIO/USB/RS-485/RS-232
  • GPIO compatible with AVMATRIX and other video switchers
  • Compatible with VMix via USB type-c
  • Wireless PTZ camera control via RS-232/RS-485 pass through
  • Up to 16 tally lamps can be supported
  • Both front and rear indicators on the lamps with 4-level adjustable brightness
  • Visible signal strength and battery status on the tally lamp
  • Tally lamp can be powered by USB type-c or 18650 li-ion battery

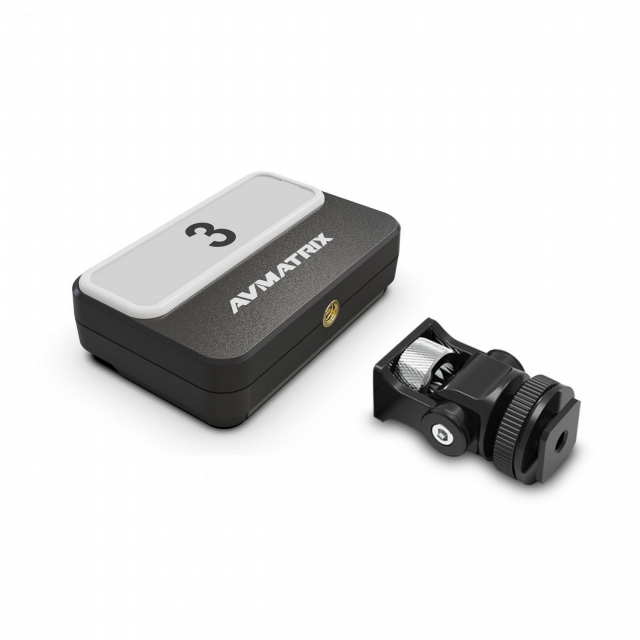

  • 1/4 inch hot shoe for tally lamp installation

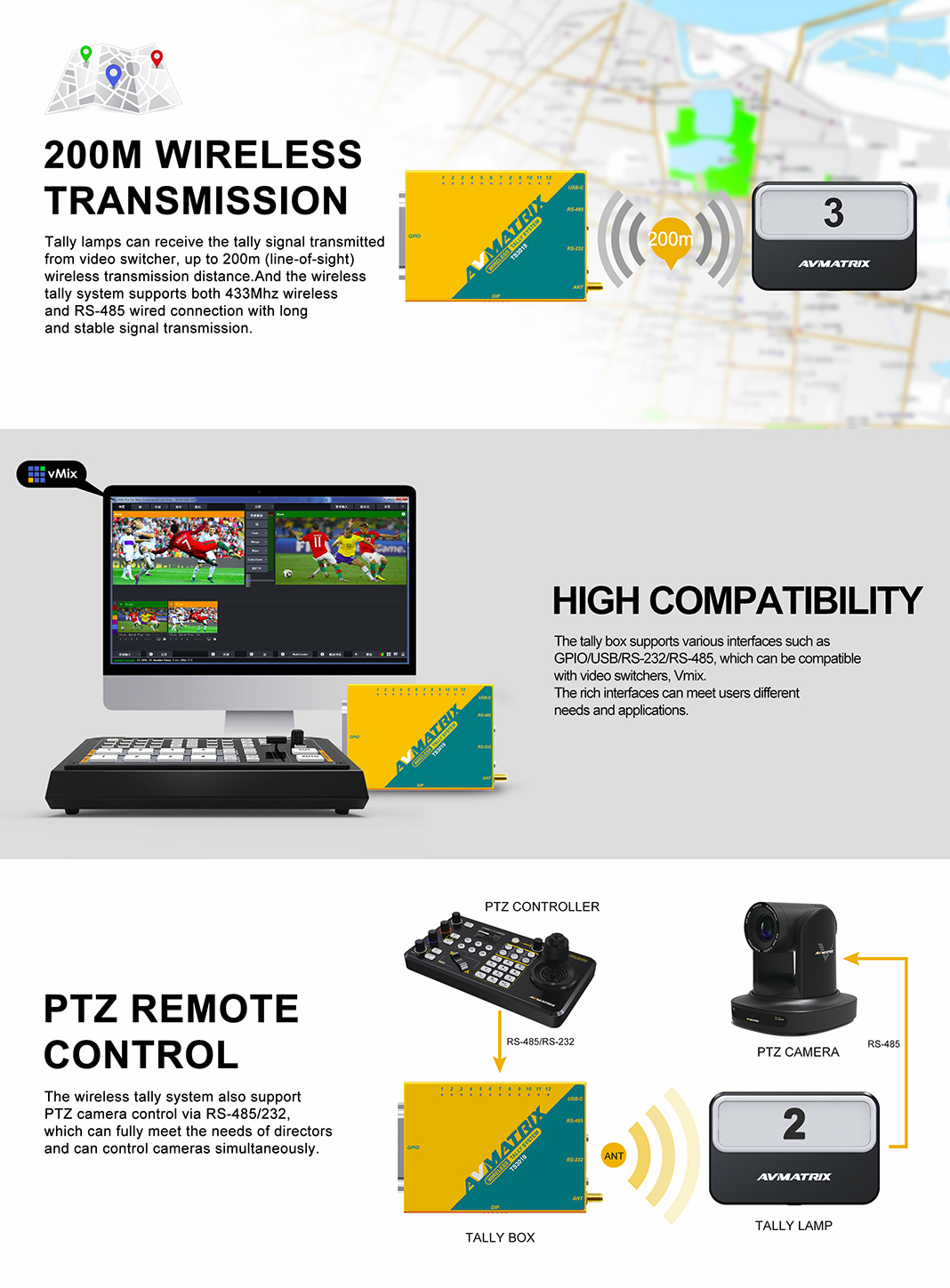

200M Wireless Transmission

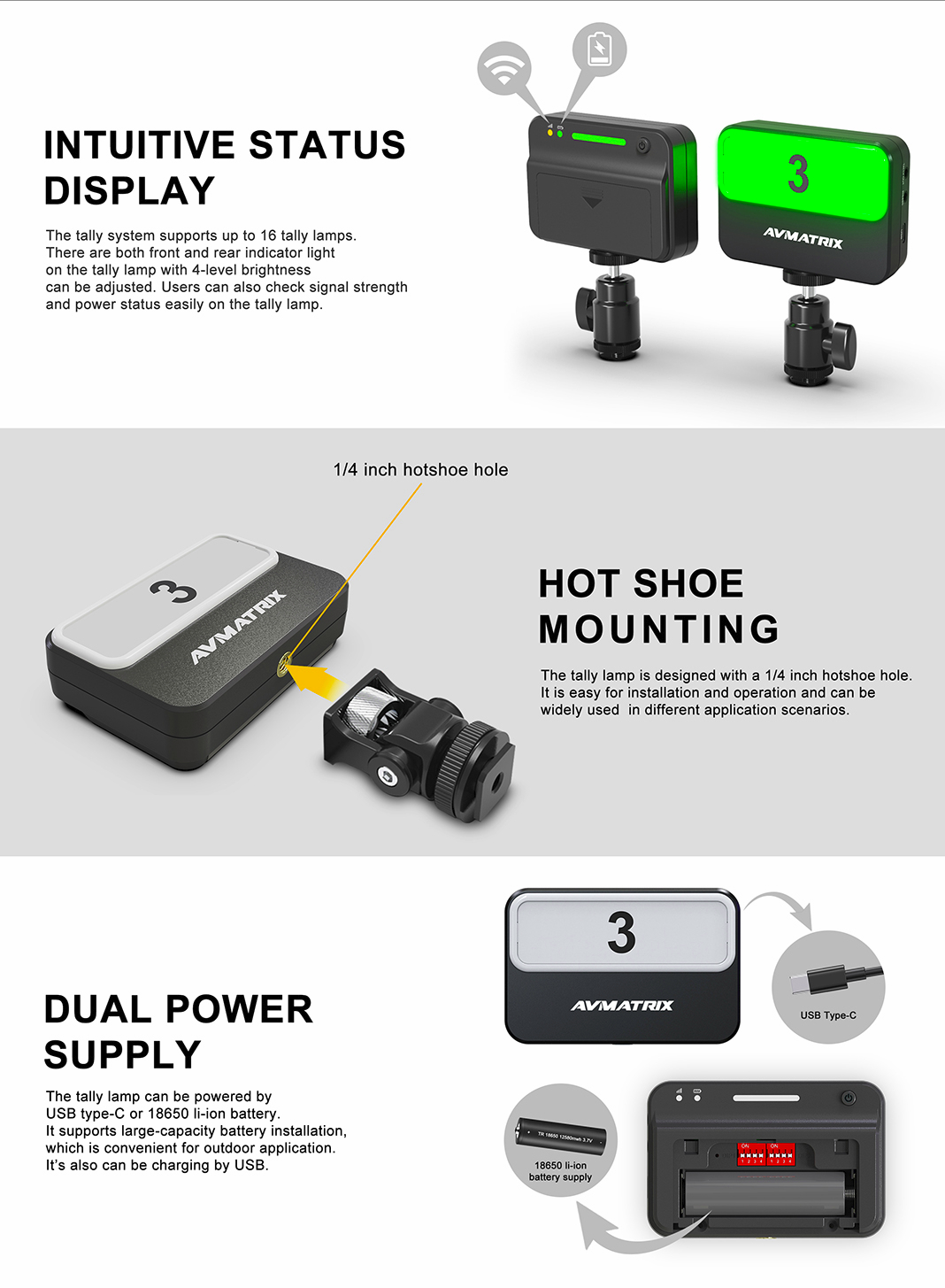

Intuitive Status Display

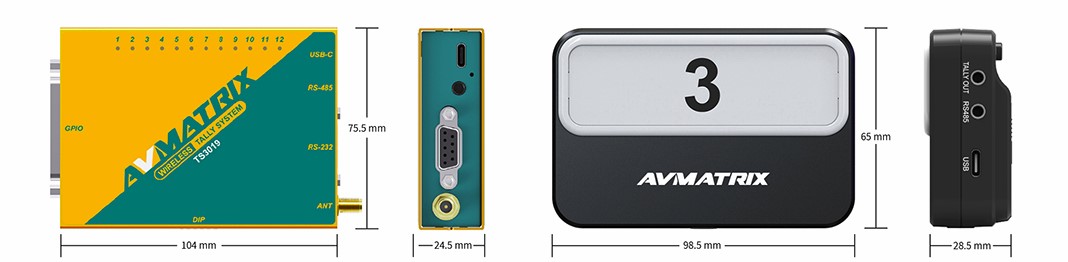

Dimension

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

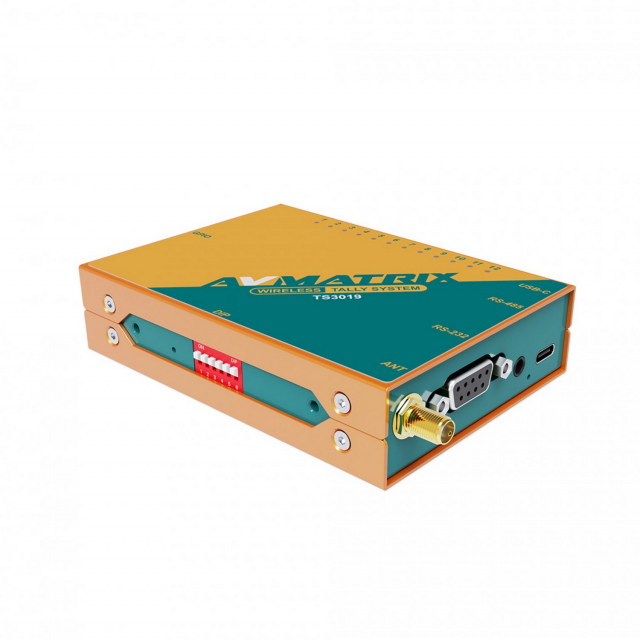

Tally Box Parameters
Connections1xGPIO, 1xRS-232 terminal, 1xRS-485 terminal, 1xUSB type-c
Number of LampsSupport up to 16 tally lamps (12 LED indicator)
Wireless DistanceTransmission up to 200m (line-of-sight)
Wireless Frequency433MHz
Wireless ConnectivityRS-485 serial connection
Application SupportVmix, Video switchers with GPIO-tally interface such as AVMATRIX, Roland, SONY, NewTek, Panasonic, DataVideo, or tally converter box with GPIO such as BMD's GPI and tally interface
PowerWorking Voltage: 5V, Power Consumption: ≤0.2W
Tally Lamp Parameters
Connections1xUSB Type-C, 1xRS-485, TALLY OUT
Power Supply5V USB power supply or 18650 li-ion battery (optional) power supply
BrightnessSupport 4-level brightness
Battery Operating Timeup to 9 hours (depending on battery capacity & lamp brightness & usage environment)
PowerWorking Voltage: 5V; Power Consumption: ≤2.5W; Battery Charging Current: 5V 1A
Mounting Hole1/4 inch hotshoe hole
Dimension (LWD)Tally box: 10475.524.5mm; Tally lamp: 98.56526.5mm
WeightTally box: 327g; Tally lamp: 90g (without battery)
TemperatureWorking temperature: -20°C ~60°C; storage temperature: -30°C ~70°C
Others
AccessoriesTS3019-4 (4 Lamp Suits): 1xTally Box, 4xTally Lamps, 1xSuitcases, 1xPower Supply (5V 1A), 5xUSB2.0 Type-C Cables, 1xAntenna, 1xGPIO Connector
Product Details
Tally Box Parameters
Connections1xGPIO, 1xRS-232 terminal, 1xRS-485 terminal, 1xUSB type-c
Number of LampsSupport up to 16 tally lamps (12 LED indicator)
Wireless DistanceTransmission up to 200m (line-of-sight)
Wireless Frequency433MHz
Wireless ConnectivityRS-485 serial connection
Application SupportVmix, Video switchers with GPIO-tally interface such as AVMATRIX, Roland, SONY, NewTek, Panasonic, DataVideo, or tally converter box with GPIO such as BMD's GPI and tally interface
PowerWorking Voltage: 5V, Power Consumption: ≤0.2W
Tally Lamp Parameters
Connections1xUSB Type-C, 1xRS-485, TALLY OUT
Power Supply5V USB power supply or 18650 li-ion battery (optional) power supply
BrightnessSupport 4-level brightness
Battery Operating Timeup to 9 hours (depending on battery capacity & lamp brightness & usage environment)
PowerWorking Voltage: 5V; Power Consumption: ≤2.5W; Battery Charging Current: 5V 1A
Mounting Hole1/4 inch hotshoe hole
Dimension (LWD)Tally box: 10475.524.5mm; Tally lamp: 98.56526.5mm
WeightTally box: 327g; Tally lamp: 90g (without battery)
TemperatureWorking temperature: -20°C ~60°C; storage temperature: -30°C ~70°C
Others
AccessoriesTS3019-4 (4 Lamp Suits): 1xTally Box, 4xTally Lamps, 1xSuitcases, 1xPower Supply (5V 1A), 5xUSB2.0 Type-C Cables, 1xAntenna, 1xGPIO Connector
Note

Note: Please read description carefully. Do not base your order on the picture presented.
