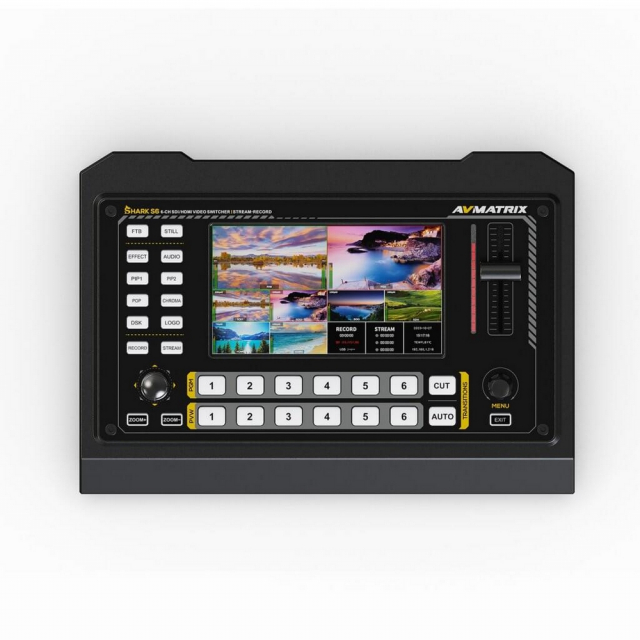

Buy AVMATRIX Shark S6, 6-CH HDMI/SDI Video Switcher

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

Built-in 5 inch LCD display
Input: 4xSDI and 2xHDMI
Output: 2xSDI, 1xHDMI PGM, 2xSDI AUX ,1xHDMI Multiview, 1xUSB Type-C
RTMP stream & USB Disk & SD Card Record
USB for capturing and streaming on PC
Professional chroma Key, downstream key, 2PIP/ POP, and LOGO overlay
T-bar/ Auto/ Cut transitions, various effects: MIX/ DIP/WIPE effects
Audio mixer:4xSDI, 2xHDMI audio & 2xMIC in
PTZ camera control: VISCA, VISCA over IP, Pelco D/P & ONVIF
Layout style: landscape & portrait mode
FTB/ STILL, GPIO port for tally system, RS232/RS422/RS485

Live Stream Via Ethernet

Usb Disk & SD Card Record

Dimension

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

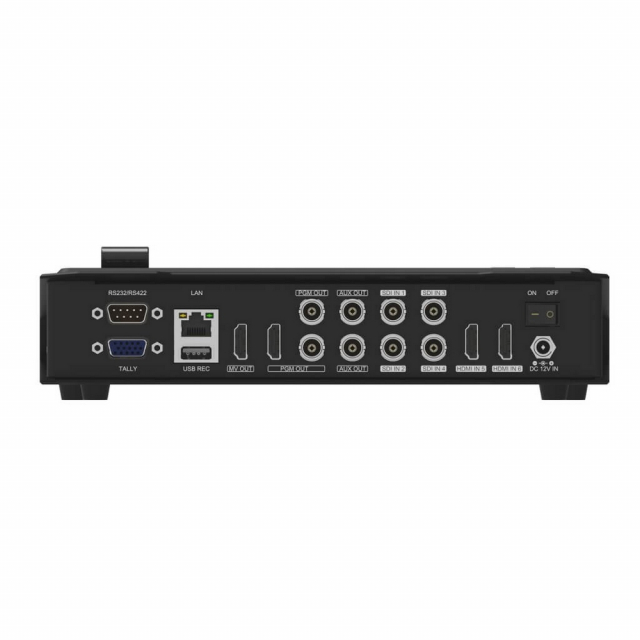

Connections
Video Input	SD/HD/3G-SDI (75Ω) x4, HDMI type-A (100Ω) x2
Media Port	USB type-A
Stream Output	LAN
Capture Output	USB type-C
PGM Outputs	HD/3G-SDI (75Ω) x2, HDMI type-A (100Ω) x1
Multiview Outputs	HDMI type-A (100Ω) x1
AUX Outputs	3G-SDI (75Ω) x2, including IN~6, PVW, PGM, Color Bar, Multiview
Audio Inputs	MIC x2
Audio Output	Line x1, Earphone slot x1
Camera Control Port	LAN, RS-232/RS-422/RS-485
Tally Port	DB-15
Power In	DC 12V
STREAM & REC
Bitrate	2M~32Mbps
Rate Control	CBR/VBR
Stream Protocols	RTMP(S)/RTSP/SRT
REC SD Card Format	FAT32/exFAT/NTFS
REC USB Disk Format	FAT32/exFAT/NTFS
REC File Segment	1~120mins
Functions
Transitions	T-Bar/AUTO/CUT
Effects	WIPE (11x3 patterns)/MIX/DIP/STILL (freeze)/FTB
Multiview Layout	Landscape & Portrait Mode
Upstream Key	Chroma Key x1, PIP x2, POP
Downstream Key	DSK x1, Logo x1
Audio Function	AFV, Mix, Audio delay
Logo Library	Up to 8 PNG image
Display	5 inch HD LCD display
Others
Power	DC 12V 1.5A, 18W
Dimension (LWD)	238.5 x 162.8 x 47.5mm
Weight	Net weight: 1450g, Gross weight: 2370g
Temperature	Working: -20°C ~ 60°C; Storage: -30°C ~ 70°C
Standards
SDI Input Format Support	1080p 60/59.94/50/30/29.97/25/24/23.981080PsF 30/29.97/25/24/23.981080i 60/59.94/50720p 60/50/30/29.97/25/24/23.98625i 50, 525i 59.94 NTSC
HDMI Input Format Support	1080p 60/59.94/50/30/29.97/25/24/23.981080PsF 30/29.97/25/24/23.981080i 60/59.94/50720p 60/50/30/29.97/25/24625i 50, 525i 59.94 NTSC
PGM Output Format	1080p 60/59.94/50
Multiview Output Format	1080p 60
Color Space	RGB Full, RGB Limited, YUV
SDI Video Rate	Auto detection, SD/HD/3G-SDI
SDI Compliance	SMPTE 292M/SMPTE 259M/SMPTE 424M
USB Capture Out	MJPG, up to 1080p 60
Supported OS	Windows 7/8/10/11, Linux (Kernel version 2.6.38 and above)Mac OS (10.8 and above)
Capture Compatibility	OBS studio, Skype, ZOOM, Teams, YouTube Live, etc.

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Connections
Video Input	SD/HD/3G-SDI (75Ω) x4, HDMI type-A (100Ω) x2
Media Port	USB type-A
Stream Output	LAN
Capture Output	USB type-C
PGM Outputs	HD/3G-SDI (75Ω) x2, HDMI type-A (100Ω) x1
Multiview Outputs	HDMI type-A (100Ω) x1
AUX Outputs	3G-SDI (75Ω) x2, including IN~6, PVW, PGM, Color Bar, Multiview
Audio Inputs	MIC x2
Audio Output	Line x1, Earphone slot x1
Camera Control Port	LAN, RS-232/RS-422/RS-485
Tally Port	DB-15
Power In	DC 12V
STREAM & REC
Bitrate	2M~32Mbps
Rate Control	CBR/VBR
Stream Protocols	RTMP(S)/RTSP/SRT
REC SD Card Format	FAT32/exFAT/NTFS
REC USB Disk Format	FAT32/exFAT/NTFS
REC File Segment	1~120mins
Functions
Transitions	T-Bar/AUTO/CUT
Effects	WIPE (11x3 patterns)/MIX/DIP/STILL (freeze)/FTB
Multiview Layout	Landscape & Portrait Mode
Upstream Key	Chroma Key x1, PIP x2, POP
Downstream Key	DSK x1, Logo x1
Audio Function	AFV, Mix, Audio delay
Logo Library	Up to 8 PNG image
Display	5 inch HD LCD display
Others
Power	DC 12V 1.5A, 18W
Dimension (LWD)	238.5 x 162.8 x 47.5mm
Weight	Net weight: 1450g, Gross weight: 2370g
Temperature	Working: -20°C ~ 60°C; Storage: -30°C ~ 70°C
Standards
SDI Input Format Support	1080p 60/59.94/50/30/29.97/25/24/23.981080PsF 30/29.97/25/24/23.981080i 60/59.94/50720p 60/50/30/29.97/25/24/23.98625i 50, 525i 59.94 NTSC
HDMI Input Format Support	1080p 60/59.94/50/30/29.97/25/24/23.981080PsF 30/29.97/25/24/23.981080i 60/59.94/50720p 60/50/30/29.97/25/24625i 50, 525i 59.94 NTSC
PGM Output Format	1080p 60/59.94/50
Multiview Output Format	1080p 60
Color Space	RGB Full, RGB Limited, YUV
SDI Video Rate	Auto detection, SD/HD/3G-SDI
SDI Compliance	SMPTE 292M/SMPTE 259M/SMPTE 424M
USB Capture Out	MJPG, up to 1080p 60
Supported OS	Windows 7/8/10/11, Linux (Kernel version 2.6.38 and above)Mac OS (10.8 and above)
Capture Compatibility	OBS studio, Skype, ZOOM, Teams, YouTube Live, etc.

Note

Note: Please read description carefully. Do not base your order on the picture presented.
