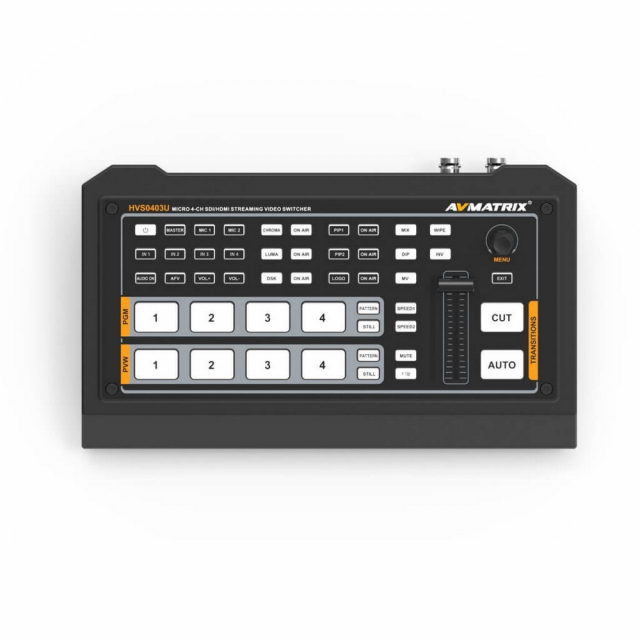

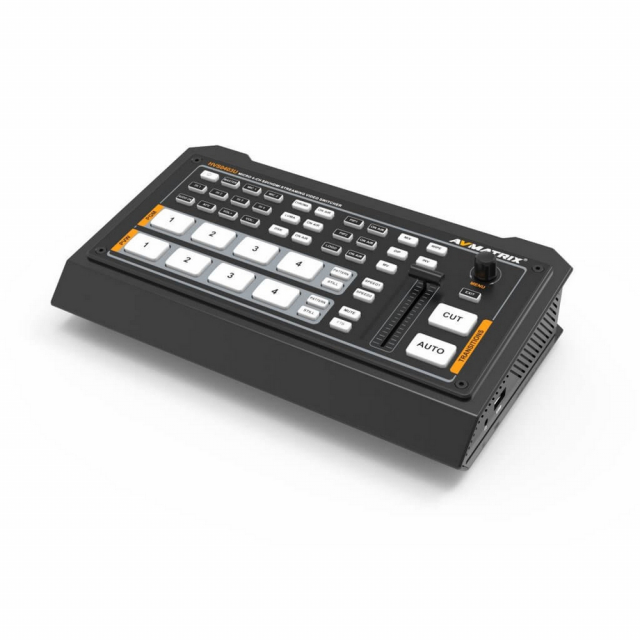

Buy AVMATRIX HVS0403U, Micro 4 Channel SDI & HDMI Video Switcher

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Type:: Type: SDI&HDMI Video Switcher

HVS0403U Includes Only:

Micro 4 Channel SDI&HDMI Video Switcher12V Power Supply
USB-A to USB-C Cable
Tally Connector

Features:

2xHDMI & 2x3G-SDI inputs, support auto-detected
2xHDMI PGM outputs,1xHDMI multiview output, 1xUSB type-C output
All outputs are configurable and assignable
USB for capturing and streaming on PC or Android phone

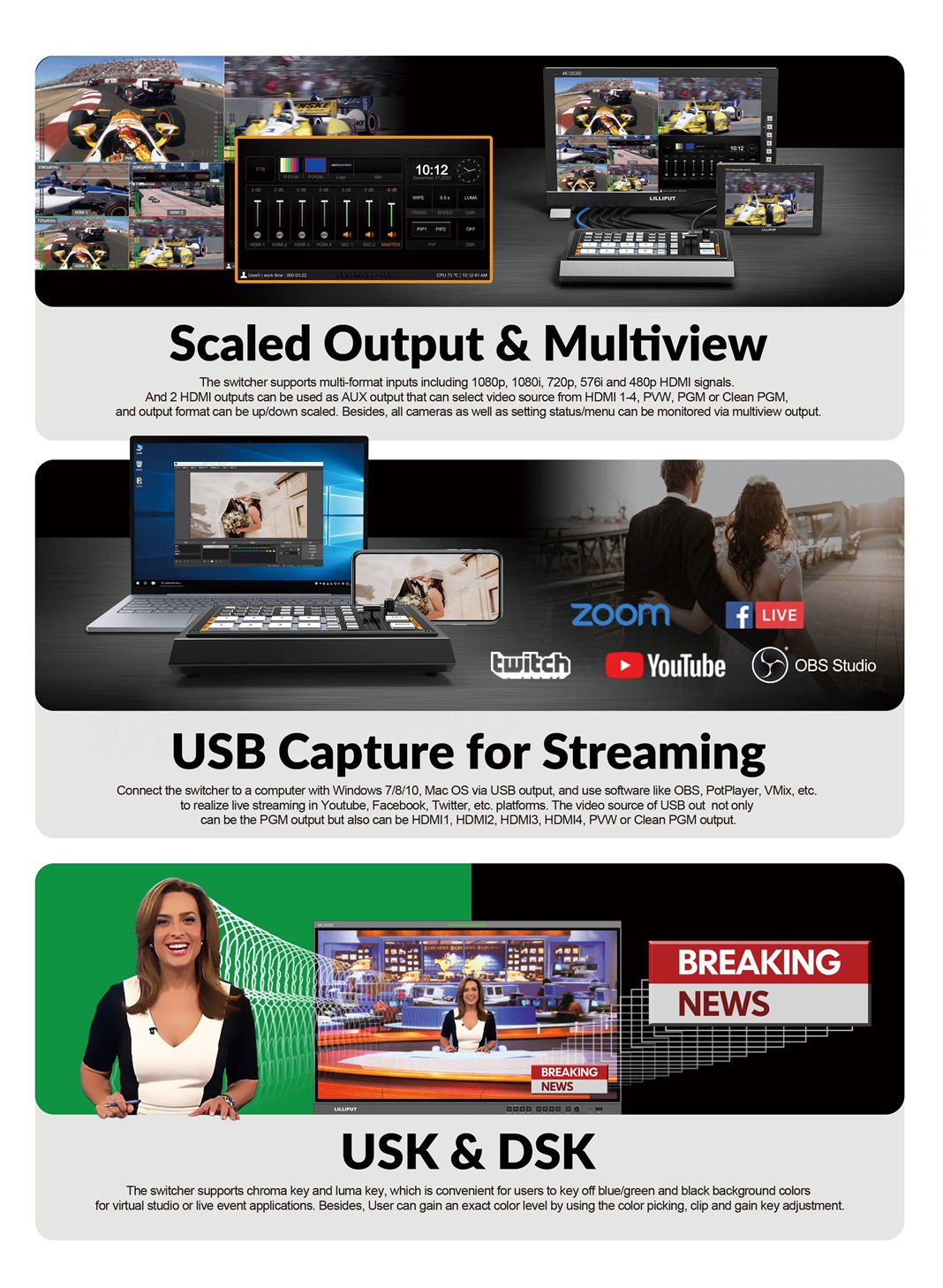

Clearly visible multiview & status page
Upstream key: Luma key, Chroma key, 2xPIP/ POP
Downstream key and LOGO overlay
T-bar/ Auto/ Cut transitions; various effects: WIPE(11x2 patterns)/ MIX/ DIP
Audio mixer: 2xSDI, 2xHDMI embedded audio and 2xMIC/ line In; audio delay available
Media library: 39 default patterns, 16 imported images, 16 captured images, 2 color generators
LAN port for PC software remote control
FTB/ MUTE/ STILL/ GPIO for tally

Live Stream Video

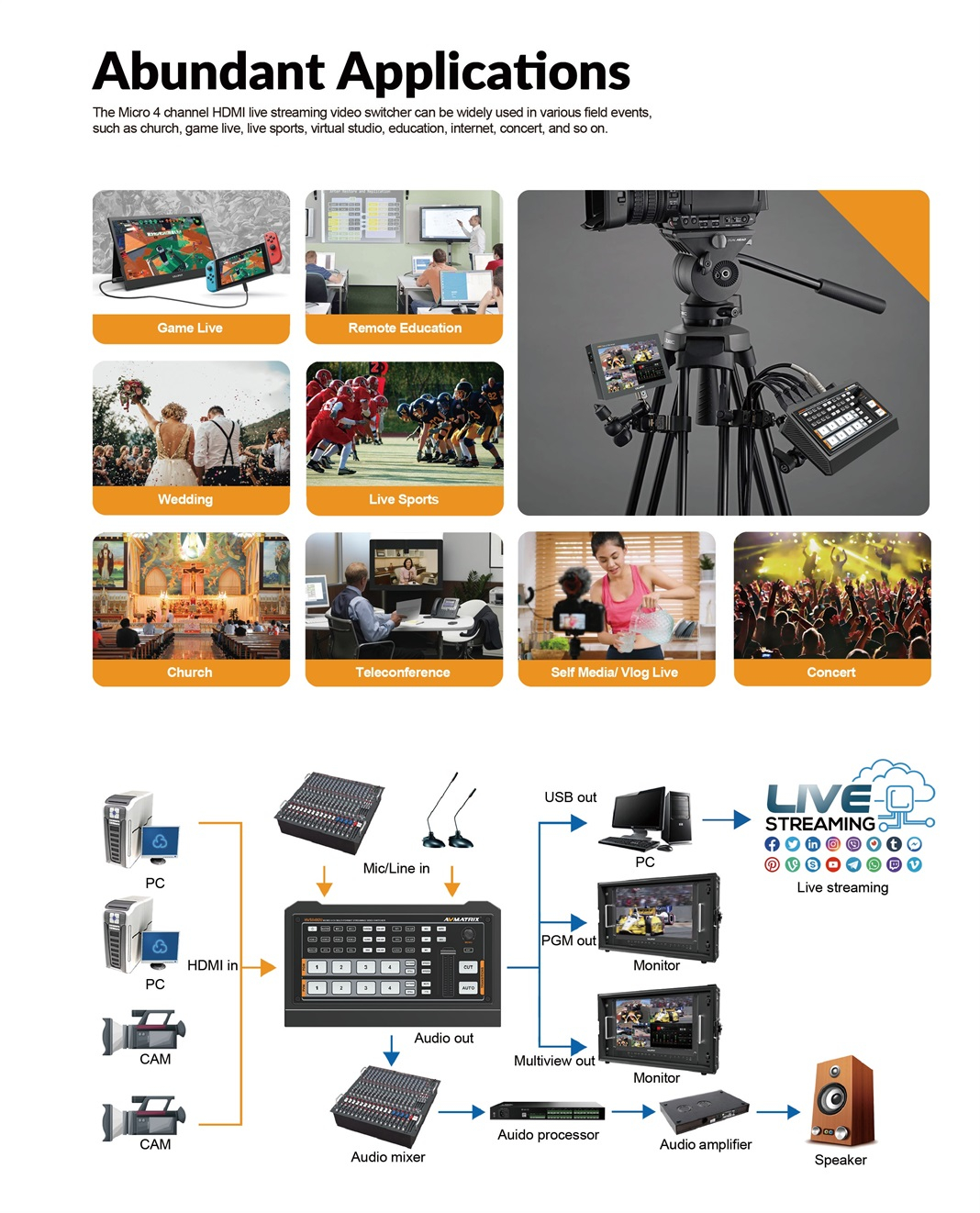

Abundant Applications

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Processing

Switching Type

Pushbutton, Software, T-Bar

Processing Resolution

1080p

Color Processing

Input

Number of Video Input Sources

Video Inputs

2x HDMI Female
2x BNC (3G-SDI) Female

Input Video Format (HDMI)

1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 23.98/24/25/29.97/30/50/59.94/60 fps
576p at 50 fps
576i / 625 lines at 50 fps
480p at 59.94/60 fps
480i / 525 lines at 59.94/60 fps

Audio Inputs

2x 1/8" / 3.5 mm TRS Stereo Analog Female

Input Audio Format

Analog

Embedded Audio Input

HDMI: 2-Channel (per Input)
SDI: 2-Channel (per Input)

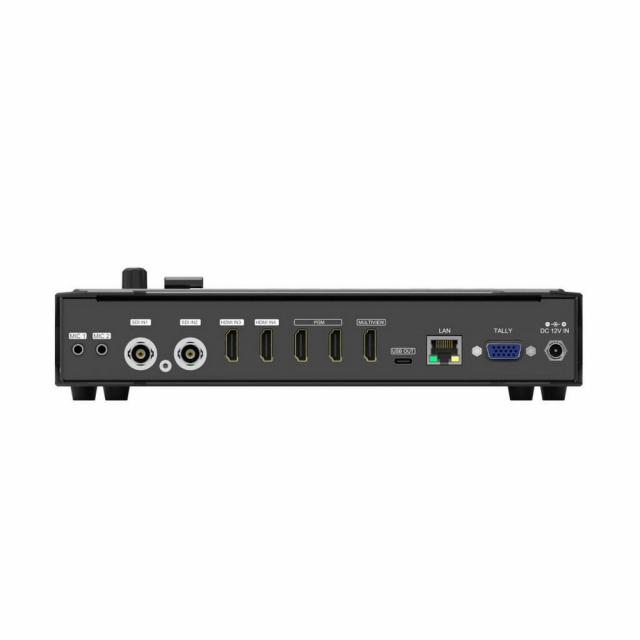

Output

Video Output Channels

Video Outputs

2x HDMI Female (Program)
1x HDMI Female (Preview)
1x USB-C (USB Video) Female

Output Video Format

HDMI
- 1080p at 24/25/30/50/60 fps
- 1080i at 50/60 fps
USB-C
- 1080p at 60 fps

Embedded Audio Output

HDMI: 2-Channel (per Output)
USB-C: 2-Channel (per Output)

Multiview Output

4-Way Multiview via HDMI

Monitor Output

1x HDMI

General

Dimensions

9.63 x 5.64 x 1.75" / 24.45 x 14.32 x 4.45cm

Weight

2.3lb / 1kg

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Processing

Switching Type

Pushbutton, Software, T-Bar

Processing Resolution

1080p

Color Processing

Input

Number of Video Input Sources

Video Inputs

2x HDMI Female
2x BNC (3G-SDI) Female

Input Video Format (HDMI)

1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 23.98/24/25/29.97/30/50/59.94/60 fps
576p at 50 fps
576i / 625 lines at 50 fps
480p at 59.94/60 fps
480i / 525 lines at 59.94/60 fps

Audio Inputs

2x 1/8" / 3.5 mm TRS Stereo Analog Female

Input Audio Format

Analog

Embedded Audio Input

HDMI: 2-Channel (per Input)
SDI: 2-Channel (per Input)

Output

Video Output Channels

Video Outputs

2x HDMI Female (Program)
1x HDMI Female (Preview)
1x USB-C (USB Video) Female

Output Video Format

HDMI
- 1080p at 24/25/30/50/60 fps
- 1080i at 50/60 fps
USB-C
- 1080p at 60 fps

Embedded Audio Output

HDMI: 2-Channel (per Output)
USB-C: 2-Channel (per Output)

Multiview Output

4-Way Multiview via HDMI

Monitor Output

1x HDMI

General

Dimensions

9.63 x 5.64 x 1.75" / 24.45 x 14.32 x 4.45cm

Weight

2.3lb / 1kg

Note

Note: Please read description carefully. Do not base your order on the picture presented.
