Buy AVMATRIX HVS0401U, Micro 4-CH HDMI & DP Video Switcher Live Streaming

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Type:: Type: HDMI/DP Live Streaming Switcher

AVMATRIX, HVS0401U, Micro 4 Channel HDMI/ DP Video Switcher Live Streaming

HVS0401U Includes Only:

Micro 4 Channel HDMI/ DP Video Switcher
12V Power Supply
USB-A to USB-C Cable
Tally Connector

Features:

Inputs 1~3: HDMI, Input 4: HDMI/DP
Outputs: HDMI PGMx2, HDMI multiviewx1, USB type-Cx1, LANx1
USB Type-C for video capturing (UVC)
PIP function, adjustable size and position
Audio mixer: 3.5mm MIC/ RCA/ HDMI embedded audio
AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
GPIO interface for live tally system
FTB for emergency situation

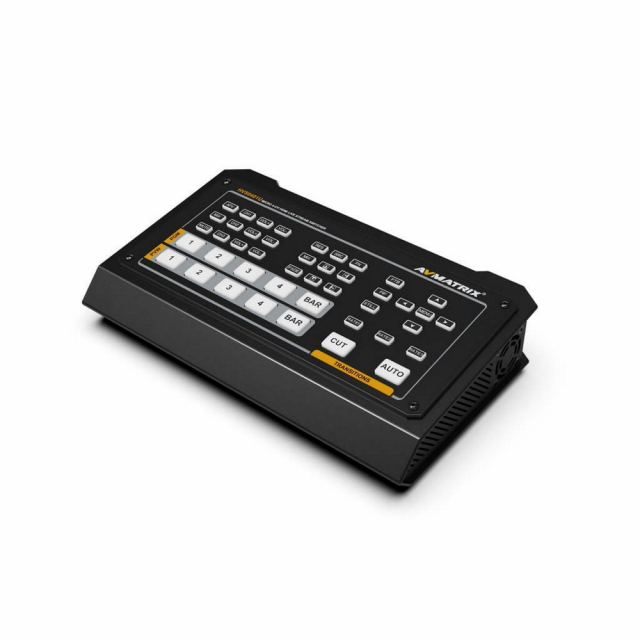

Micro 4 Channel HDMI/ DP Video Switcher

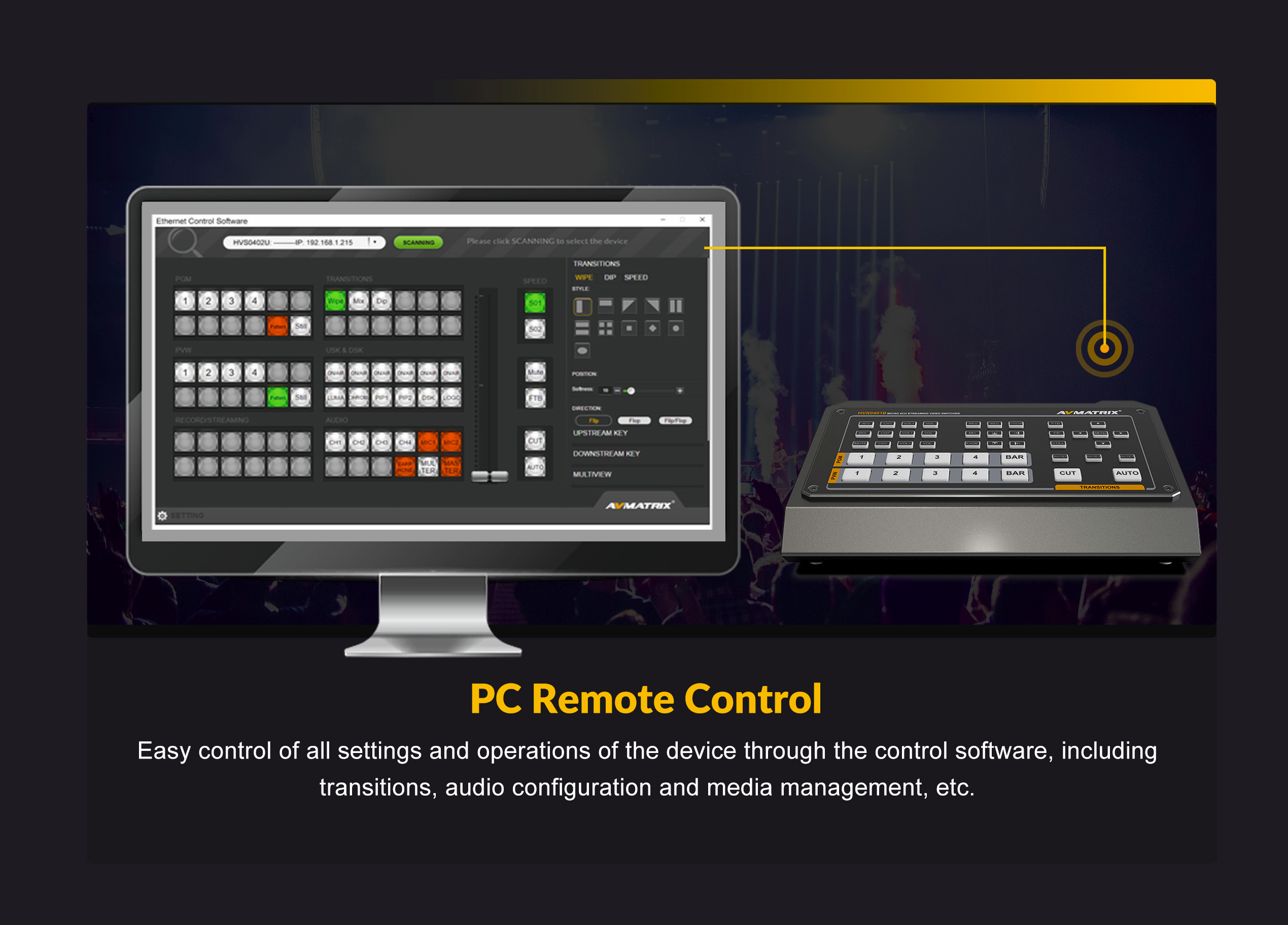

PC Remote Control

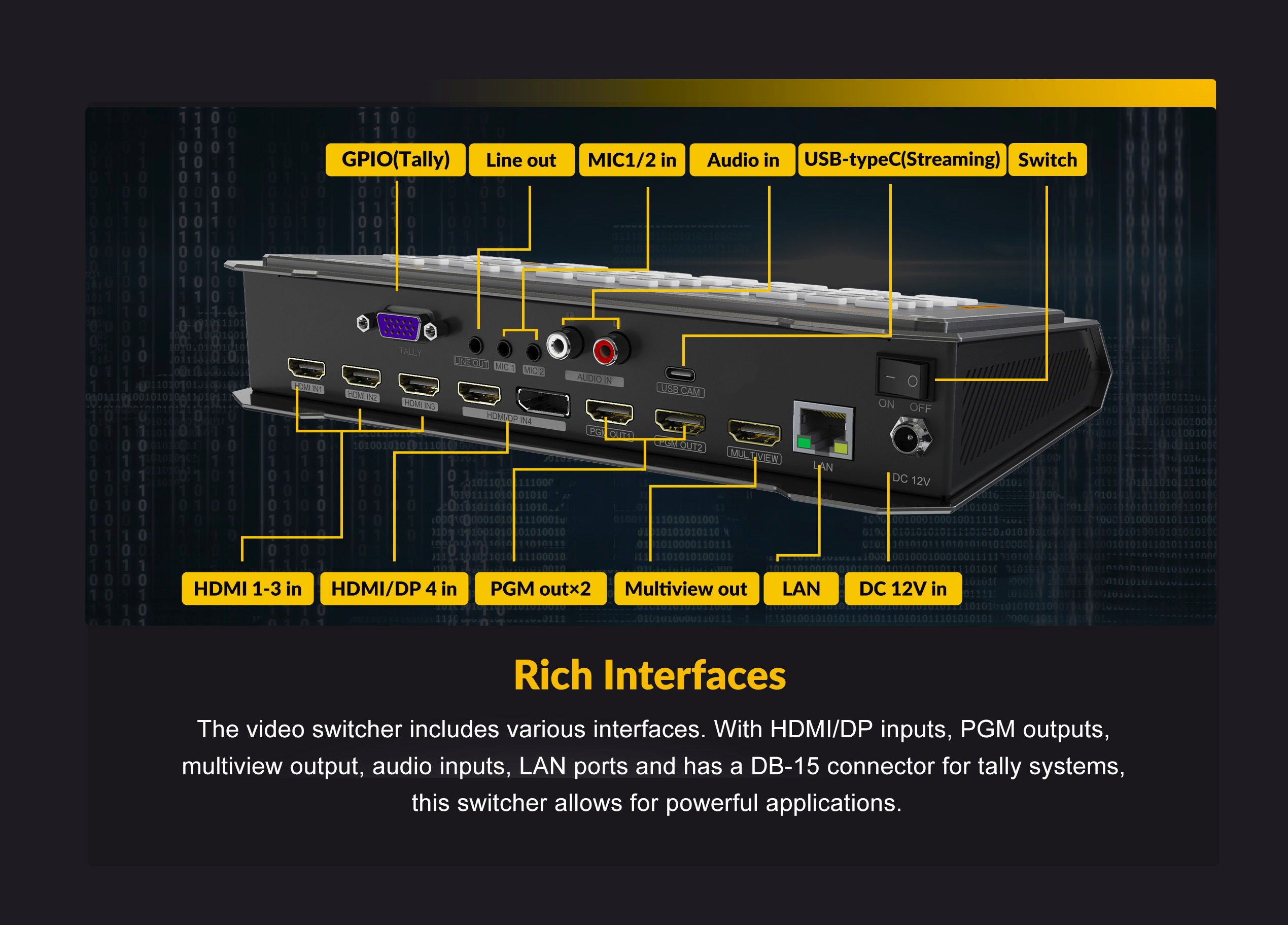

Rich Interfaces

Convenient Control Panel

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Connections

Video In

IN1~IN3: HDMI type-A x3; IN4: HDMI type-A/Display Port x1

Video Out

PGM: HDMI type-A x2; Multiview: HDMI type-A x1
USB Capture: USB type-C x1

Audio In

MIC/Line x2 (3.5mm audio); RCA x2 (stereo audio)

Tally Out

DB-15 x1

Power In

DC 12V IN x1

Functions

Functions

Image Still/Transition Speed/MUTE/Audio follows Video/Audio Mixer

Transition

AUTO/CUT/ WIPE/MIX/FADE/FTB

Layouts

PIP, Multiview

Video Format

HDMI In Format Support

1080p 60/59.94/50/30/29.97/25/24/23.98/23.976
1080i 60/59.94/50
720p 60/59.94/50/30/25/24
576i 50, 576p 50, 480p 59.94/60, 480i 59.94/60

PC HDMI/DP Input Format Support

1440x900, 1366x768, 1360x768, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768, 800x600, 1152x864, 1024x768, 1280x800, 640x480

HDMI PGM Out

1080p 60/50/30/25/24

HDMI Multiview Out

1080p60

HDMI Color Space

RGB/YCbCr

USB Capture Out

MJPG, Up to 1080p60

Others

Power

≤18W (12V 1.5A)

Dimension (LWD)

238.5x140.4x43.5mm

Weight

Net: 785g, Gross: 1500g

Temperature

Working: -10°C~60°C, Storage: -30°C~70°C

Accessories

Standard

Power supply(12V 2A) x1, USB cable(type-A C) x1, Tally connector(DB-15) x1

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Connections

Video In

IN1~IN3: HDMI type-A x3; IN4: HDMI type-A/Display Port x1

Video Out

PGM: HDMI type-A x2; Multiview: HDMI type-A x1
USB Capture: USB type-C x1

Audio In

MIC/Line x2 (3.5mm audio); RCA x2 (stereo audio)

Tally Out

DB-15 x1

Power In

DC 12V IN x1

Functions

Functions

Image Still/Transition Speed/MUTE/Audio follows Video/Audio Mixer

Transition

AUTO/CUT/ WIPE/MIX/FADE/FTB

Layouts

PIP, Multiview

Video Format

HDMI In Format Support

1080p 60/59.94/50/30/29.97/25/24/23.98/23.976
1080i 60/59.94/50
720p 60/59.94/50/30/25/24
576i 50, 576p 50, 480p 59.94/60, 480i 59.94/60

PC HDMI/DP Input Format Support

1440x900, 1366x768, 1360x768, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768, 800x600, 1152x864, 1024x768, 1280x800, 640x480

HDMI PGM Out

1080p 60/50/30/25/24

HDMI Multiview Out

1080p60

HDMI Color Space

RGB/YCbCr

USB Capture Out

MJPG, Up to 1080p60

Others

Power

≤18W (12V 1.5A)

Dimension (LWD)

238.5x140.4x43.5mm

Weight

Net: 785g, Gross: 1500g

Temperature

Working: -10°C~60°C, Storage: -30°C~70°C

Accessories

Standard

Power supply(12V 2A) x1, USB cable(type-A C) x1, Tally connector(DB-15) x1

Note

Note: Please read description carefully. Do not base your order on the picture presented.
