| Subject to the use of all the optional accessories |
| Form factor | micro-ATX |
| Overall dimensions | 9.6'' x 9.6'' (24.4 cm x 24.4 cm) |
| Processor unit |
| CPU | AMD AM4 Socket Ryzen Series CPUs (Raven Ridge and Pinnacle Ridge) and Ryzen 7nm CPUs |
| Connector | AM4 PGA 1331 |
| Chipset | AMD X470 |
| Memory |
| Capacity | 4 x 288-pin DDR4 DIMM slots Support up to 128GB DDR4 ECC/UDIMM |
| A type | Dual Channel DDR4 memory technology Support DDR4 ECC/UDIMM |
| DIMM Size Per DIMM | ECC / UDIMM: 32GB, 16GB, 8GB |
| DIMM Frequency | ECC/UDIMM: 2666/2400/2133 MHz |
| Voltage | 1.2V |
| Expansion slots |
| PCIe 3.0 x 16 | PCIE6: Gen3 x16 link (splittable in x4/4/4/4); auto switch to x8 link when PCIE4 is occupied. PCIE4: Gen3 x8 link |
| PCIe 2.0 x 1 | PCIE5: Gen2 x1 link |
| Data storage |
| SATA controller | 6 x SATA3 6.0 Gb/s (1x SATA DOM port), support RAID 0, 1, 10 |
| M.2 slot | 2 (2242/2260/2280/22110, supports SATA3 and PCIe 3.0 x2 or supports PCIe 2.0 x4 only) |
| Network |
| Interface | 10000/1000 /100 /10 Mbps |
| LAN controller | 2 x RJ45 10G base-T by Intel® X550-AT2 1 x RJ45 Dedicated IPMI LAN port by RTL8211E Supports Wake-On-LAN Supports Energy Efficient Ethernet 802.3az Supports Dual LAN with Teaming function Supports PXE LAN3 supports NCSI |
| Control |
| BMC controller | ASPEED AST2500 |
| IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
| Functions | Watch Dog |
| Graphic arts |
| Controller | ASPEED AST2500 |
| VRAM | DDR4 256MB |

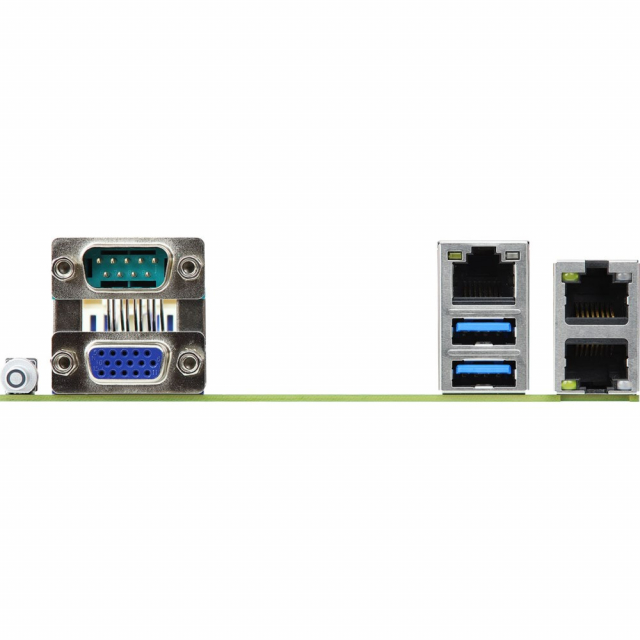

| Rear Panel I / O |
| VGA port | 1 x D-Sub |
| USB 3.2 ports | 2 |
| Port Lan | 2 x RJ45 10 Gigabit Ethernet LAN ports 1 x RJ45 Dedicated IPMI LAN port LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Serial port | 1 x COM port |
| UID Button/UID LED | 1 |
| Internal Connector |
| SATA DOM | 1 |
| M.2 | 2(M2_1: 2242/2260/2280/22110, PCIE(X4); M2_2:2242/2260/2280/22110, SATA/PCIE(X2)) |
| Auxiliary Panel Header | 1 (includes chassis intrusion, location button & LED, front LAN LED, system fault, and BMC alert) |
| TPM | 1 |
| IPMB | 1 |
| Buzzer | 1 |
| Fan | 6 Fans x 4-pin (FAN1(CPU)/FAN2~FAN6(5Front)) |
| ATX power | 1 x (24-pin) + 1 x (8-pin) |
| USB 3.2 (Gen1) Header | 1 (supports 2 USB 3.1 Gen1 ports) |
| PSU SMB Header | 1 |
| Front panel | 1 (RST, PWRBTN, HDDLED, PWRLED) |
| BMC_SMB Header | 1 |
| Clear CMOS | 1 (short pad) |
| Onboard LED |
| Port 80 LED | 1 |
| Fan Fail LED | 6 (only Fan Fail LED) |
| BIOS |
| BIOS type | 16MB AMI UEFI Legal BIOS |
| BIOS Features | Plug and Play (PnP) ACPI 2.0 Compliance Wake Up Events SMBIOS 2.8 Support ASRock Rack Instant Flash |
| Hardware monitoring |
| Temperature | CPU/DDR/LAN Temperature Sensing MB/Card Side Temperature Sensing |
| Fan | Fan Tachometer Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB |
| Compatible OS |
| OS | Microsoft®Windows: Windows®10 (64 bit) Linux: UBuntu 16.04.4 (64 bit) RedHat Enterprise Linux Server 7.3 (64bit) / 7.4 (64bit) |
| terms of Use |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
