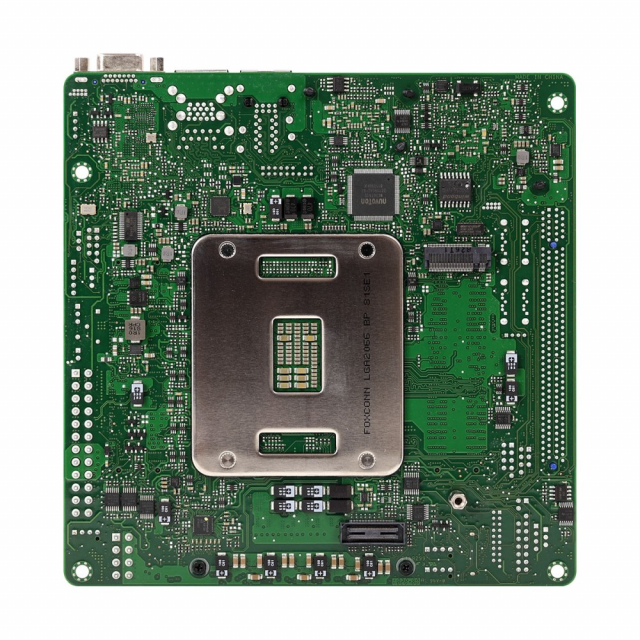

Buy ASRock Rack X299 WSI/IPMI, Motherboard 4 SATA3 By X299

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

Support Intel Core™ X-Series Processor Family for the LGA 2066 Socket)
Support four channels DDR4 SODIMM & ECC SODIMM
Support 4 SATA3 by X299
Support 1x PCIe 3.0 x16
Support Intel i350

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Physical Status
Form Factor	Mini ITX
Dimensions	6.7'' x 6.7'' (17.02 cm x17.02 cm)
Processor System
CPU	Intel^® Core™ X-Series Processor Family
Socket	Single Socket R4(LGA 2066)
Chipset	Intel^® X299
System Memory
Capacity	4 DIMM slots
Type	Quad Channel memory technology Support DDR4 2666/2400/2133 SODIMM Support DDR4 2666/2400/2133 ECC SODIMM
DIMM Size Per DIMM	SODIMM: 16GB, 8GB ECC SODIMM: 32GB,16GB, 8GB, 4GB
Voltage	1.2V
Expansion Slot
PCIe 3.0 x 16	-1 slot
Storage
SATA Controller	X299: 4x SATA3 6Gb/s
OCuLink for U.2	1(from PCH)
Ethernet
Interface	1000 /100 /10 Mbps
LAN Controller	2 x RJ45 GLAN by Intel^® i350 Supports Wake-On-LAN Supports Energy Efficient Ethernet 802.3az Supports Dual LAN with Teaming function Supports PXE
Management
BMC Controller	ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0 with Ikvm vMedia support
IPMI Dedicated GLAN	1 x Realtek RTL8211E for dedicated management GLAN
Features	Watch Dog NMI
Graphics
Controller	ASPEED AST2500
VRAM	DDR4 4GB
Rear Panel I/O
PS/2 KB/Mouse	N/A
VGA Port	1 x D-Sub
USB 3.2 Gen1 Port	2
Lan Port	RJ45:2+1(IPMI) LAN Ports with LED (ACT/LINK LED and SPEED LED)
Internal Connector
COM Header	1 (from SIO)
M.2	1 slot
Auxiliary Panel Header	1 (include chassis intrusion, location button & LED, front LAN LED)
TR1 Header	1
TPM Header	1
IPMB Header	1
Fan Header	3 Fans (1CPU/2 system)
ATX Power	1x (24-pin) + 1x (8-pin) )
USB 3.2 (Gen1) Header	1 ( support 2 USB3.0)
NMI Button	1
Front Panel	1(rst, pwrbtn, hddled, pwrled)
Speaker Header	1(4 pin)
Clear CMOS	1
System BIOS
BIOS Type	256Mb AMI UEFI Legal BIOS
BIOS Features	Plug and Play (PnP) ACPI 2.0 Compliance Wake Up Events SMBIOS 2.8.0 Support ASRock Rack Instant Flash
Hardware Monitor
Temperature	CPU Temperature Sensing System Temperature Sensing Card side Temperature Sensing System TR Temperature Sensing
Fan	CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control
Voltage	Voltage Monitoring: Vcore, VCCSA, VCCIO, VCCMAB, VCCMCD, 3v, 5v, 12v,1.05V_PCH, 1.05V_PCH_PHY, +BAT, 3VSB, 5VSB, 5V_Dual
Support OS
OS	Microsoft^®Windows^®Windows^®10 (64 bit)
Environment
Temperature	Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Physical Status
Form Factor	Mini ITX
Dimensions	6.7'' x 6.7'' (17.02 cm x17.02 cm)
Processor System
CPU	Intel^® Core™ X-Series Processor Family
Socket	Single Socket R4(LGA 2066)
Chipset	Intel^® X299
System Memory
Capacity	4 DIMM slots
Type	Quad Channel memory technology Support DDR4 2666/2400/2133 SODIMM Support DDR4 2666/2400/2133 ECC SODIMM
DIMM Size Per DIMM	SODIMM: 16GB, 8GB ECC SODIMM: 32GB,16GB, 8GB, 4GB
Voltage	1.2V
Expansion Slot
PCIe 3.0 x 16	-1 slot
Storage
SATA Controller	X299: 4x SATA3 6Gb/s
OCuLink for U.2	1(from PCH)
Ethernet
Interface	1000 /100 /10 Mbps
LAN Controller	2 x RJ45 GLAN by Intel^® i350 Supports Wake-On-LAN Supports Energy Efficient Ethernet 802.3az Supports Dual LAN with Teaming function Supports PXE
Management
BMC Controller	ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0 with Ikvm vMedia support
IPMI Dedicated GLAN	1 x Realtek RTL8211E for dedicated management GLAN
Features	Watch Dog NMI
Graphics
Controller	ASPEED AST2500
VRAM	DDR4 4GB
Rear Panel I/O
PS/2 KB/Mouse	N/A
VGA Port	1 x D-Sub
USB 3.2 Gen1 Port	2
Lan Port	RJ45:2+1(IPMI) LAN Ports with LED (ACT/LINK LED and SPEED LED)
Internal Connector
COM Header	1 (from SIO)
M.2	1 slot
Auxiliary Panel Header	1 (include chassis intrusion, location button & LED, front LAN LED)
TR1 Header	1
TPM Header	1
IPMB Header	1
Fan Header	3 Fans (1CPU/2 system)
ATX Power	1x (24-pin) + 1x (8-pin) )
USB 3.2 (Gen1) Header	1 ( support 2 USB3.0)
NMI Button	1
Front Panel	1(rst, pwrbtn, hddled, pwrled)
Speaker Header	1(4 pin)
Clear CMOS	1
System BIOS
BIOS Type	256Mb AMI UEFI Legal BIOS
BIOS Features	Plug and Play (PnP) ACPI 2.0 Compliance Wake Up Events SMBIOS 2.8.0 Support ASRock Rack Instant Flash
Hardware Monitor
Temperature	CPU Temperature Sensing System Temperature Sensing Card side Temperature Sensing System TR Temperature Sensing
Fan	CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control
Voltage	Voltage Monitoring: Vcore, VCCSA, VCCIO, VCCMAB, VCCMCD, 3v, 5v, 12v,1.05V_PCH, 1.05V_PCH_PHY, +BAT, 3VSB, 5VSB, 5V_Dual
Support OS
OS	Microsoft^®Windows^®Windows^®10 (64 bit)
Environment
Temperature	Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C

Note

Note: Please read description carefully. Do not base your order on the picture presented.
