ASRock MXM-IPC-Q370-12V Motherboard 2xM.2 Key M, 1xM.2 Key E

  • Brand ASRock
  • Part # MXM-IPC-Q370-12V
  • Condition
    Brand New
    Availability
    Contact Us
    Quantity
    Share:
    Ask a question

    Features:

    • Intel® 9th / 8th Gen (Coffee Lake-S) Core™ Processors with Q370 chipset
    • 2 x 260-pin SO-DIMM up to 64GB DDR4 2666 MHz (32GB per DIMM)
    • 1 x MXM PCIe x16 (Gen3), 4 x USB 3.1 Gen1, 3 x USB 2.0, 2 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 2 x SATA3
    • 2 x Intel Gigabit LAN
    • Supports Hexa Display, 5 x DP 1.2, 1 x VGA, 1 x eDP
    • TPM Header
    • Supports Intel® vPro, AMT, RAID 0/1
    • 12V DC-In (4-pin plug PWR cable for maximum 200 watt DC input)
    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    DimensionsMicro-STX (5.8-in x 7.4-in)
    CPUIntel® 9th / 8th Gen (Coffee Lake-S) Core™ Processors
    ChipsetIntel® Q370
    SocketLGA1151
    BIOSAMI SPI 128 Mbit
    TechnologyDual Channel DDR4 2666 MHz
    Capacity64GB Intel Core i3/Pentium/Celeron CPUs support up to 32GB (16GB per DIMM)
    Socket2 x 260-pin SO-DIMM
    ControllerIntel® Gen9 Graphics DX 11 / 12
    eDPeDP 1.4 Max resolution up to 4096 x 2304 at60Hz
    VGAMax resolution up to 1920 x 1200 at60Hz
    DisplayPortDisplayPort 1.2, DP++ Max resolution up to 4096 x 2304 at60Hz
    MultiDisplayHexa Display
    M.21 x M.2 (Key E, 2230) with PCIe x1, CNVi and shared USB 2.0 for Wireless
    PCIe1 x MXM PCIe x16 (Gen3) Supports NVIDIA Quadro P5000 & GTX Series
    InterfaceRealtek ALC233, High Definition Audio.
    Controller/ SpeedLAN1: 1 x Intel® I210 with 10/100/1000 Mbps LAN2: 1 x Intel® I219LM with 10/100/1000 Mbps, supports AMT / vPro

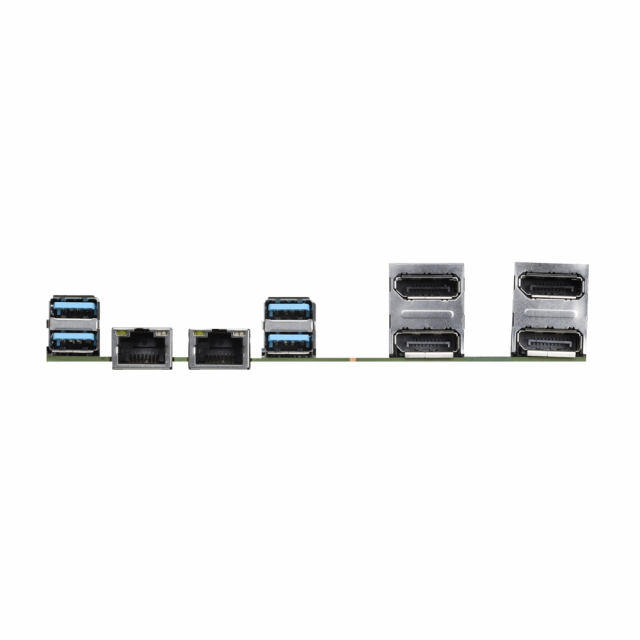

    Connector2 x RJ-45
    DisplayPort1 x DP 1.2
    USB1 x USB 2.0
    Audio1 (Mic-in, Line-out)
    DisplayPort4 x DP 1.2
    Ethernet2 x 1 Gigabit LAN
    USB4 x USB 3.1 (Gen1)
    USB2 x USB 2.0 (2 x 2.54 pitch header)
    TPMTPM Header
    eDP1
    VGA1
    COMCOM1 (RS-232)
    M.22 x M.2 (Key M, 2242 / 2260 / 2280) with PCIe x4 & SATA3 for SSD
    SATA2 x SATA3 (6Gb/s)
    RAIDIntel® SATA RAID 0/1
    OutputFrom Super I/O to drag RESETCON#
    Interval256 Segments, 0, 1, 2, ...255sec
    Input PWR12V DC-In (4-pin plug PWR cable for maximum 200 watt DC input)
    Power OnAT/ATX Supported - AT : Directly PWR on as po wer input ready - ATX : Press button to PWR on after po wer input ready
    Operating Temp0ºC ~ 60ºC
    Storage Temp-40ºC – 85° C
    Operating Humidity5% ~ 90%
    Storage Humidity5% ~ 90%
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    DimensionsMicro-STX (5.8-in x 7.4-in)
    CPUIntel® 9th / 8th Gen (Coffee Lake-S) Core™ Processors
    ChipsetIntel® Q370
    SocketLGA1151
    BIOSAMI SPI 128 Mbit
    TechnologyDual Channel DDR4 2666 MHz
    Capacity64GB Intel Core i3/Pentium/Celeron CPUs support up to 32GB (16GB per DIMM)
    Socket2 x 260-pin SO-DIMM
    ControllerIntel® Gen9 Graphics DX 11 / 12
    eDPeDP 1.4 Max resolution up to 4096 x 2304 at60Hz
    VGAMax resolution up to 1920 x 1200 at60Hz
    DisplayPortDisplayPort 1.2, DP++ Max resolution up to 4096 x 2304 at60Hz
    MultiDisplayHexa Display
    M.21 x M.2 (Key E, 2230) with PCIe x1, CNVi and shared USB 2.0 for Wireless
    PCIe1 x MXM PCIe x16 (Gen3) Supports NVIDIA Quadro P5000 & GTX Series
    InterfaceRealtek ALC233, High Definition Audio.
    Controller/ SpeedLAN1: 1 x Intel® I210 with 10/100/1000 Mbps LAN2: 1 x Intel® I219LM with 10/100/1000 Mbps, supports AMT / vPro
    Connector2 x RJ-45
    DisplayPort1 x DP 1.2
    USB1 x USB 2.0
    Audio1 (Mic-in, Line-out)
    DisplayPort4 x DP 1.2
    Ethernet2 x 1 Gigabit LAN
    USB4 x USB 3.1 (Gen1)
    USB2 x USB 2.0 (2 x 2.54 pitch header)
    TPMTPM Header
    eDP1
    VGA1
    COMCOM1 (RS-232)
    M.22 x M.2 (Key M, 2242 / 2260 / 2280) with PCIe x4 & SATA3 for SSD
    SATA2 x SATA3 (6Gb/s)
    RAIDIntel® SATA RAID 0/1
    OutputFrom Super I/O to drag RESETCON#
    Interval256 Segments, 0, 1, 2, ...255sec
    Input PWR12V DC-In (4-pin plug PWR cable for maximum 200 watt DC input)
    Power OnAT/ATX Supported - AT : Directly PWR on as po wer input ready - ATX : Press button to PWR on after po wer input ready
    Operating Temp0ºC ~ 60ºC
    Storage Temp-40ºC – 85° C
    Operating Humidity5% ~ 90%
    Storage Humidity5% ~ 90%
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
