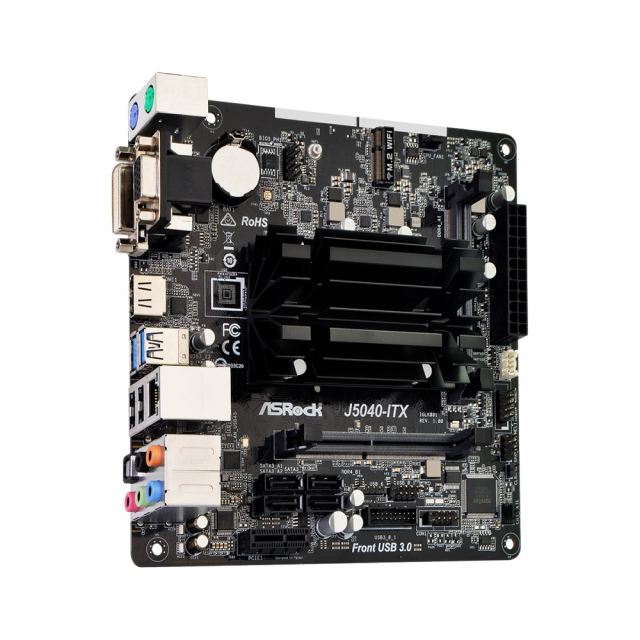

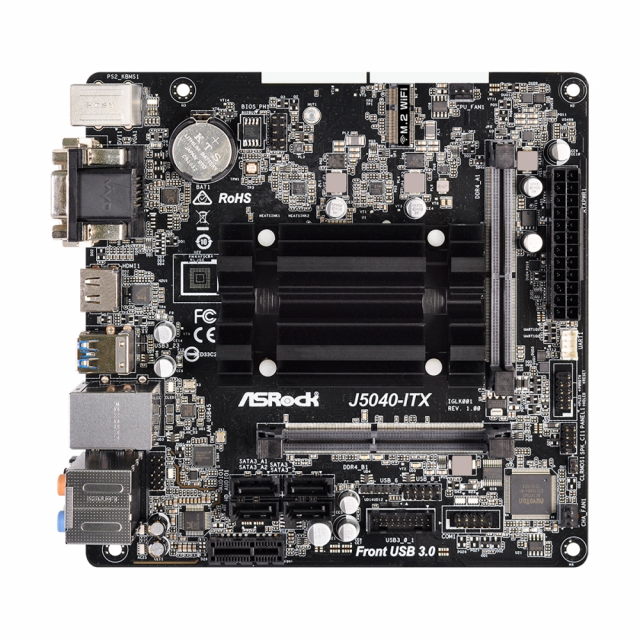

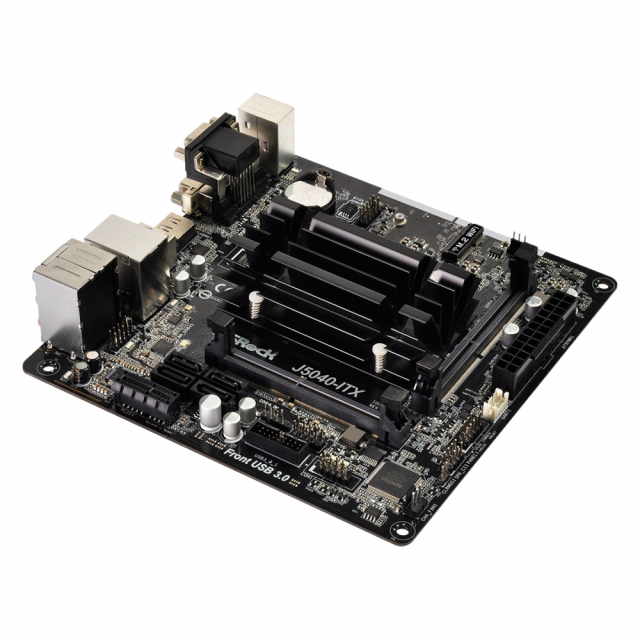

ASRock J5040-ITX Motherboard 1 PCIe 2.0 x1, 1 M.2

  • Brand ASRock
  • Part # J5040-ITX
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Quantity
Share:
Ask a question

Features:

  • ASRock Super Alloy
  • Intel® Quad-Core Pentium® Processor J5040 (up to 3.2 GHz)
  • Supports DDR4 2133/2400 SO-DIMM
  • 1 PCIe 2.0 x1, 1 M.2 (Key E)
  • Graphics Output Options: D-Sub, HDMI, DVI-D
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
  • 4 SATA3
  • 4 USB 3.2 Gen1 (2 Front, 2 Rear)
  • Supports Full Spike Protection, ASRock Live Update & APP Shop

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Supports HEVC 10-bit Decoding/Encoding to provide substantially improved video quality and higher bit depth video experience.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final
All sales are final
  • These are made-to-order items.
  • This product is not eligible for return or exchange unless defective.
  • The average lead-time is 1 or 2 weeks.

Technical Details

Reviews
CPUIntel Quad-Core Pentium Silver Processor J5040 (up to 3.2 GHz)
Number of Memory Slots2x260pin
Memory StandardSupports DDR4 2400 / 2133 non-ECC, un-buffered memory
Maximum Memory Supported8GB
Channel SupportedDual Channel
PCI Express x11 x PCI Express 2.0 x1 Slot
Other Slots1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT)
SATA2 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug 2 x SATA3 6.0Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
Onboard Video ChipsetIntegrated Intel UHD Graphics 605: 18 EUs inside (Up to 800MHz) DX12, OpenGL 4.4, OGL ES 3.1, OpenCL 1.2 HW Acceleration Decode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 at Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit, VP9 10 bit HW Acceleration Encode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 at Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (4096x2160) at 60Hz Supports DVI-D with max. resolution up to 1920x1200 at 60Hz Supports D-Sub with max. resolution up to 2048x1536 at 60Hz Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports HDCP 2.2 with DVI-D and HDMI Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
Audio ChipsetRealtek ALC892
Audio Channels7.1 Channels
LAN ChipsetRealtek RTL8111H
LAN Speed10/100/1000Mbps
PS/21 x PS/2 Mouse Port 1 x PS/2 Keyboard Port
Video Ports1 x D-Sub Port 1 x DVI-D Port
HDMI1 x HDMI
RJ451 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 1.1/2.02 x USB 2.0 Ports (Supports ESD Protection)
USB 3.02 x USB 3.2 Gen1 Ports (Supports ESD Protection)
S/PDIF Out1 x Optical
Audio PortsHD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Onboard USB2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors1 x COM Port Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (3-pin) 1 x Chassis Fan Connector (3-pin) 1 x 24-pin ATX Power Connector 1 x Front Panel Audio Connector
Product Details
CPUIntel Quad-Core Pentium Silver Processor J5040 (up to 3.2 GHz)
Number of Memory Slots2x260pin
Memory StandardSupports DDR4 2400 / 2133 non-ECC, un-buffered memory
Maximum Memory Supported8GB
Channel SupportedDual Channel
PCI Express x11 x PCI Express 2.0 x1 Slot
Other Slots1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT)
SATA2 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug 2 x SATA3 6.0Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
Onboard Video ChipsetIntegrated Intel UHD Graphics 605: 18 EUs inside (Up to 800MHz) DX12, OpenGL 4.4, OGL ES 3.1, OpenCL 1.2 HW Acceleration Decode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 at Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit, VP9 10 bit HW Acceleration Encode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 at Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (4096x2160) at 60Hz Supports DVI-D with max. resolution up to 1920x1200 at 60Hz Supports D-Sub with max. resolution up to 2048x1536 at 60Hz Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports HDCP 2.2 with DVI-D and HDMI Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
Audio ChipsetRealtek ALC892
Audio Channels7.1 Channels
LAN ChipsetRealtek RTL8111H
LAN Speed10/100/1000Mbps
PS/21 x PS/2 Mouse Port 1 x PS/2 Keyboard Port
Video Ports1 x D-Sub Port 1 x DVI-D Port
HDMI1 x HDMI
RJ451 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 1.1/2.02 x USB 2.0 Ports (Supports ESD Protection)
USB 3.02 x USB 3.2 Gen1 Ports (Supports ESD Protection)
S/PDIF Out1 x Optical
Audio PortsHD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Onboard USB2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors1 x COM Port Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (3-pin) 1 x Chassis Fan Connector (3-pin) 1 x 24-pin ATX Power Connector 1 x Front Panel Audio Connector
Note

Note: Please read description carefully. Do not base your order on the picture presented.
