ASRock IMB-1220-D Mini-ITX Motherboard 1xM.2 Key M, 1xM.2 Key B

  • Brand ASRock
  • Part # IMB-1220-D
  • Condition
    Brand New
    Availability
    Contact Us
    Quantity
    Share:
    Ask a question

    Features with all optional accessories:

    • Intel® 10th Gen (Comet lake-S) Core™ Processors with Q470E chipset
    • 2 x 260-pin SO-DIMM Support Dual Channel DDR4 2933 (i9 / i7 CPU) / 2666 (i5 / i3 CPU) / 2400 (Pentium / Celeron CPU), up to 64GB
    • 1 x PCIe x 16 Gen3, 6 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 5 x COM, 4 x SATA3
    • 1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
    • Support Triple display, 2 x DP 1.2, 1 x eDP, 1 x HDMI 2.0a
    • TPM 2.0 onboard
    • Special Feature: Supports Intel® vPro, AMT, RAID 0/1/5/10
    • ATX-PWR (24+4-pin)
    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    DimensionsMini-ITX (6.7-in x 6.7-in x 1.5-in)
    CPUIntel® 10th Gen (Cometlake-S) Core™ Processors, up to 80W
    ChipsetIntel® Q470E
    SocketLGA1200
    BIOSAMI SPI 256 Mbit
    TechnologyDual Channel DDR4 2933 / 2666 / 2400 MHz - Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz - Intel Core i5/i3 CPUs support DDR4 up to 2666 MHz - Intel Pentium/Celeron CPU support DDR4 up to 2400 MHz
    Capacity64GB (32 GB per DIMM)
    Socket2 x 260-pin SO-DIMM
    ControllerIntel® UHD Graphics
    DisplayPortDisplayPort 1.2, DP++ Max resolution up to 4096 x 2160 at60Hz
    eDPeDP 1.4, Max resolution up to 4096 x 2304 at60Hz
    MultiDisplayTriple Display
    HDMIHDMI 2.0a, Max resolution up to 4096 x 2160 at60Hz
    PCIe1 x PCIe x 16 (Gen3, Support riser card x8 / x8, x8 / x4 / x4)
    M.21 x M.2 (Key E, 2230) with PCIe x 1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042) with PCIe x 1 / USB 3.0 / USB2.0 and SIM for 4G / 5G
    SIM Socket1 x SIM socket connected to M.2 Key B
    InterfaceRealtek ALC887 HD, High Definition Audio. Line-out, Mic-in
    Controller/ SpeedLAN1: Intel® I225LM with 10/100/1000/2500 Mbps LAN2: Intel® I219LM with 10/100/1000 Mbps, support AMT / vPro

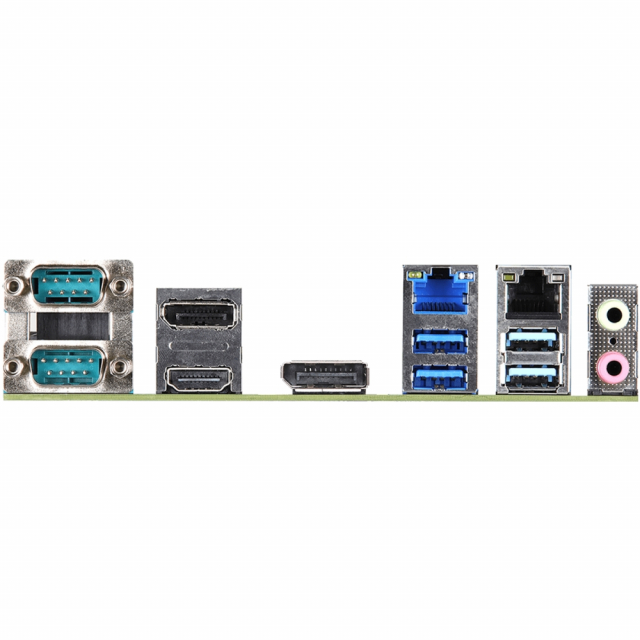

    Connector2 x RJ-45
    DisplayPort2 x DP 1.2
    Ethernet1 x 1 Gigabit LAN 1 x 2.5 Gigabit LAN
    USB4 x USB 3.2 (Gen1)
    Audio2 (Mic-in, Line-out)
    COM2 x COM (RS-232/422/485)
    HDMI1 x HDMI 2.0a
    USB2 x USB 3.2 Gen1 (1 x USB 3.2 Gen1 header) 4 x USB 2.0 (2 x 2.54 pitch header)
    COM3 x COM (RS-232)
    GPIO4 x GPI, 4 x GPO
    TPMTPM 2.0 onboard
    eDP1
    Speaker Header1
    SATA PWR Output1
    M.21 x M.2 (Key M, 2242 / 2260 / 2280) with PCIE x 4 or SATA3
    SATA4 x SATA3 (6Gb/s)
    RAIDIntel® SATA RAID 0/1/5/10
    OutputFrom Super I/O to drag RESETCON#
    Interval256 Segments, 0, 1, 2, ...255sec
    Input PWRATX PWR (24+4-pin)
    Power OnAT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready
    Operating Temp0ºC ~ 60ºC
    Storage Temp-40° C ~ 85° C
    Operating Humidity5% ~ 90%
    Storage Humidity5% ~ 90%
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    DimensionsMini-ITX (6.7-in x 6.7-in x 1.5-in)
    CPUIntel® 10th Gen (Cometlake-S) Core™ Processors, up to 80W
    ChipsetIntel® Q470E
    SocketLGA1200
    BIOSAMI SPI 256 Mbit
    TechnologyDual Channel DDR4 2933 / 2666 / 2400 MHz - Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz - Intel Core i5/i3 CPUs support DDR4 up to 2666 MHz - Intel Pentium/Celeron CPU support DDR4 up to 2400 MHz
    Capacity64GB (32 GB per DIMM)
    Socket2 x 260-pin SO-DIMM
    ControllerIntel® UHD Graphics
    DisplayPortDisplayPort 1.2, DP++ Max resolution up to 4096 x 2160 at60Hz
    eDPeDP 1.4, Max resolution up to 4096 x 2304 at60Hz
    MultiDisplayTriple Display
    HDMIHDMI 2.0a, Max resolution up to 4096 x 2160 at60Hz
    PCIe1 x PCIe x 16 (Gen3, Support riser card x8 / x8, x8 / x4 / x4)
    M.21 x M.2 (Key E, 2230) with PCIe x 1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042) with PCIe x 1 / USB 3.0 / USB2.0 and SIM for 4G / 5G
    SIM Socket1 x SIM socket connected to M.2 Key B
    InterfaceRealtek ALC887 HD, High Definition Audio. Line-out, Mic-in
    Controller/ SpeedLAN1: Intel® I225LM with 10/100/1000/2500 Mbps LAN2: Intel® I219LM with 10/100/1000 Mbps, support AMT / vPro
    Connector2 x RJ-45
    DisplayPort2 x DP 1.2
    Ethernet1 x 1 Gigabit LAN 1 x 2.5 Gigabit LAN
    USB4 x USB 3.2 (Gen1)
    Audio2 (Mic-in, Line-out)
    COM2 x COM (RS-232/422/485)
    HDMI1 x HDMI 2.0a
    USB2 x USB 3.2 Gen1 (1 x USB 3.2 Gen1 header) 4 x USB 2.0 (2 x 2.54 pitch header)
    COM3 x COM (RS-232)
    GPIO4 x GPI, 4 x GPO
    TPMTPM 2.0 onboard
    eDP1
    Speaker Header1
    SATA PWR Output1
    M.21 x M.2 (Key M, 2242 / 2260 / 2280) with PCIE x 4 or SATA3
    SATA4 x SATA3 (6Gb/s)
    RAIDIntel® SATA RAID 0/1/5/10
    OutputFrom Super I/O to drag RESETCON#
    Interval256 Segments, 0, 1, 2, ...255sec
    Input PWRATX PWR (24+4-pin)
    Power OnAT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready
    Operating Temp0ºC ~ 60ºC
    Storage Temp-40° C ~ 85° C
    Operating Humidity5% ~ 90%
    Storage Humidity5% ~ 90%
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
