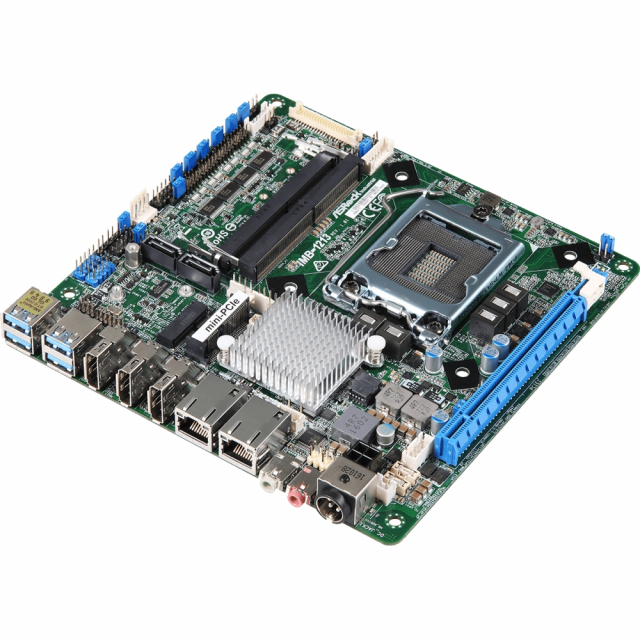

ASRock IMB-1213 Mini-ITX Motherboard 1xMini-PCIe, 1xM.2 Key E

  • Brand ASRock
  • Part # IMB-1213
  • Condition
    Brand New
    Availability
    Contact Us
    Quantity
    Share:
    Ask a question

    Features:

    • Intel® 9th/ 8th Gen (Coffee Lake-S) Core™ Processors with Q370 chipset
    • 2 x 260-pin SO-DIMM up to 64GB DDR4 2666MHz
    • 1 x PCIe x16 (Gen3), 4 x USB 3.1 Gen1, 4 x USB 2.0, 1 x mini-PCIe, 1 x M.2 Key E, 1 x M.2 Key M, 4 x COM, 2 x SATA3
    • 2 x Intel 1 Gigabit LAN
    • Supports triple display, 3 x DP 1.2, 1 x LVDS or eDP
    • TPM 2.0 onboard IC , supports Intel® vPro, AMT, RAID 0/1
    • 12V/19~28V DC-In
    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    DimensionsMini-ITX (6.7-in x 6.7-in)
    CPUIntel® 9th/ 8th Gen (Coffee Lake-S) Core™ Processors, up to 65W
    ChipsetIntel® Q370
    SocketLGA1151
    BIOSAMI SPI 128 Mbit
    TechnologyDual Channel DDR4 2666 MHz
    Capacity64GB Intel Core i3/Pentium/Celeron CPUs support up to 32GB (16GB per DIMM)
    Socket2 x 260-pin SO-DIMM
    ControllerCoffee Lake integrated graphics
    DisplayPortDisplayPort 1.2, DP++ Max resolution up to 4096x2304 at60Hz
    LVDSDual channel 24 bit up to 1920x1200 at60Hz
    eDPeDP 1.4 Max resolution up to 4096x2304 at60Hz
    MultiDisplayTriple Display
    PCIe1 x PCIe x16 (Gen3, Support riser card x8/x8, x8/x4/x4)
    mini-PCIe1 x Full/Half size with PCIe x1 and USB 2.0
    M.21 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
    InterfaceRealtek ALC887, High Definition Audio. Line-out,Mic-in
    Controller/ SpeedLAN1: Intel® I219LM with 10/100/1000 Mbps, supports AMT/vPro LAN2: Intel® I210 with 10/100/1000 Mbps
    Connector2 x RJ-45
    DisplayPort3 x DP 1.2
    Ethernet2 x 1 Gigabit LAN
    USB4 x USB 3.1 (Gen1)
    Audio2 (Mic-in, Line-out)
    DC Jack1
    USB4 x USB 2.0 (2 x 2.54 pitch header)
    COMCOM3, 4(RS232/422/485) COM1, 2(RS232)
    GPIO4 x GPI, 4 x GPO
    TPMTPM 2.0 onboard IC
    LVDS1 (shared with eDP, by jumper setting)
    eDP1 (shared with LVDS, by jumper setting)
    SATA PWR Output1
    Speaker Header1
    M.21 x M.2 (Key M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD
    SATA2 x SATA3 (6Gb/s)
    RAIDIntel® SATA RAID 0/1
    OutputFrom Super I/O to drag RESETCON#
    Interval256 Segments, 0, 1, 2, ...255sec
    Input PWR12V or 19~28V DC-In with 4-pin plug PWR cable or 4-pin DC Jack
    Power OnAT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready
    Operating Temp0ºC ~ 60ºC
    Storage Temp-40° C ~ 85° C
    Operating Humidity5% ~ 90%
    Storage Humidity5% ~ 90%
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    DimensionsMini-ITX (6.7-in x 6.7-in)
    CPUIntel® 9th/ 8th Gen (Coffee Lake-S) Core™ Processors, up to 65W
    ChipsetIntel® Q370
    SocketLGA1151
    BIOSAMI SPI 128 Mbit
    TechnologyDual Channel DDR4 2666 MHz
    Capacity64GB Intel Core i3/Pentium/Celeron CPUs support up to 32GB (16GB per DIMM)
    Socket2 x 260-pin SO-DIMM
    ControllerCoffee Lake integrated graphics
    DisplayPortDisplayPort 1.2, DP++ Max resolution up to 4096x2304 at60Hz
    LVDSDual channel 24 bit up to 1920x1200 at60Hz
    eDPeDP 1.4 Max resolution up to 4096x2304 at60Hz
    MultiDisplayTriple Display
    PCIe1 x PCIe x16 (Gen3, Support riser card x8/x8, x8/x4/x4)
    mini-PCIe1 x Full/Half size with PCIe x1 and USB 2.0
    M.21 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
    InterfaceRealtek ALC887, High Definition Audio. Line-out,Mic-in
    Controller/ SpeedLAN1: Intel® I219LM with 10/100/1000 Mbps, supports AMT/vPro LAN2: Intel® I210 with 10/100/1000 Mbps
    Connector2 x RJ-45
    DisplayPort3 x DP 1.2
    Ethernet2 x 1 Gigabit LAN
    USB4 x USB 3.1 (Gen1)
    Audio2 (Mic-in, Line-out)
    DC Jack1
    USB4 x USB 2.0 (2 x 2.54 pitch header)
    COMCOM3, 4(RS232/422/485) COM1, 2(RS232)
    GPIO4 x GPI, 4 x GPO
    TPMTPM 2.0 onboard IC
    LVDS1 (shared with eDP, by jumper setting)
    eDP1 (shared with LVDS, by jumper setting)
    SATA PWR Output1
    Speaker Header1
    M.21 x M.2 (Key M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD
    SATA2 x SATA3 (6Gb/s)
    RAIDIntel® SATA RAID 0/1
    OutputFrom Super I/O to drag RESETCON#
    Interval256 Segments, 0, 1, 2, ...255sec
    Input PWR12V or 19~28V DC-In with 4-pin plug PWR cable or 4-pin DC Jack
    Power OnAT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready
    Operating Temp0ºC ~ 60ºC
    Storage Temp-40° C ~ 85° C
    Operating Humidity5% ~ 90%
    Storage Humidity5% ~ 90%
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
