Buy ASRock H610M-HDV, Motherboard LGA1700 Max 64GB DDR4 PCIe SATA

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Configuration:: Configuration: DDR4 PCIe SATA

Features:

Supports 12th Gen Intel^® Core™ Processors (LGA1700)
5 Phase Power Design
Supports DDR4 3200MHz
1 PCIe 4.0 x16, 1 PCIe 3.0 x1
Graphics Output Options: HDMI, DisplayPort, D-Sub
Realtek ALC887/897 7.1 CH HD Audio Codec
4 SATA3
4 USB 3.2 Gen1 (2 Rear, 2 Front)
6 USB 2.0 (4 Rear, 2 Front)
Realtek Gigabit LAN

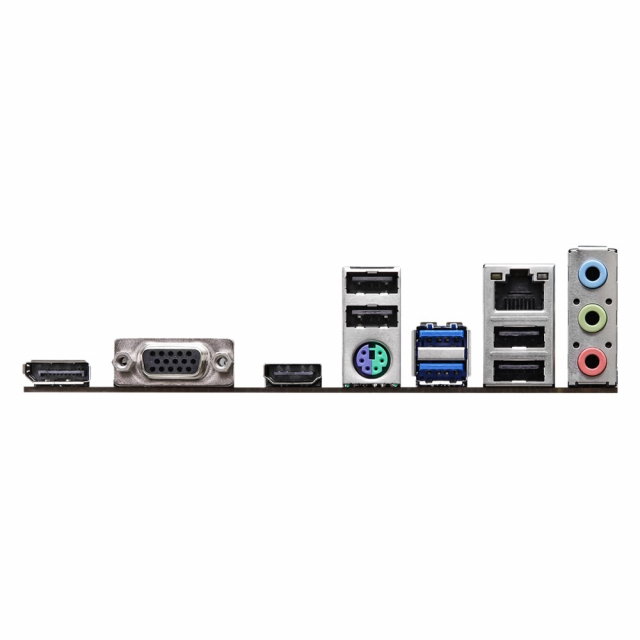

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

HDMI 4k at60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Unique Feature

ASRock Super Alloy
Premium Power Choke
Sapphire Black PCB
High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)

CPU

Supports 12th Gen Intel^®Core™ Processors (LGA1700)
5 Power Phase design
Supports Intel^®Hybrid Technology
Supports Intel^®Turbo Boost Max 3.0 Technology

Chipset

Intel® H610

Memory

Dual Channel DDR4 Memory Technology
2 x DDR4 DIMM Slots
Supports DDR4 non-ECC, un-buffered memory up to 3200
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Max. capacity of system memory: 64GB
Supports Intel® Extreme Memory Profile (XMP) 2.0

BIOS

128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment

Graphics

Intel® Xe Graphics Architecture (Gen 12)
Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) at 60Hz
Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) at 60Hz / 5K (5120x3200) at 120Hz
Supports D-Sub with max. resolution up to 1920x1200 at 60Hz
Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

Audio

7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)
Supports Surge Protection

LAN

PCIE x1 Gigabit LAN 10/100/1000 Mb/s
1 x Realtek RTL8111H
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE

Slots

CPU:
1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode
Chipset:
1 x PCIe 3.0 x1 Slot (PCIE1)

Storage

4 x SATA3 6.0 Gb/s Connectors

Product Details

Unique Feature

ASRock Super Alloy
Premium Power Choke
Sapphire Black PCB
High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)

CPU

Supports 12th Gen Intel^®Core™ Processors (LGA1700)
5 Power Phase design
Supports Intel^®Hybrid Technology
Supports Intel^®Turbo Boost Max 3.0 Technology

Chipset

Intel® H610

Memory

Dual Channel DDR4 Memory Technology
2 x DDR4 DIMM Slots
Supports DDR4 non-ECC, un-buffered memory up to 3200
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Max. capacity of system memory: 64GB
Supports Intel® Extreme Memory Profile (XMP) 2.0

BIOS

128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment

Graphics

Intel® Xe Graphics Architecture (Gen 12)
Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) at 60Hz
Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) at 60Hz / 5K (5120x3200) at 120Hz
Supports D-Sub with max. resolution up to 1920x1200 at 60Hz
Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

Audio

7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)
Supports Surge Protection

LAN

PCIE x1 Gigabit LAN 10/100/1000 Mb/s
1 x Realtek RTL8111H
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE

Slots

CPU:
1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode
Chipset:
1 x PCIe 3.0 x1 Slot (PCIE1)

Storage

4 x SATA3 6.0 Gb/s Connectors

Note

Note: Please read description carefully. Do not base your order on the picture presented.
