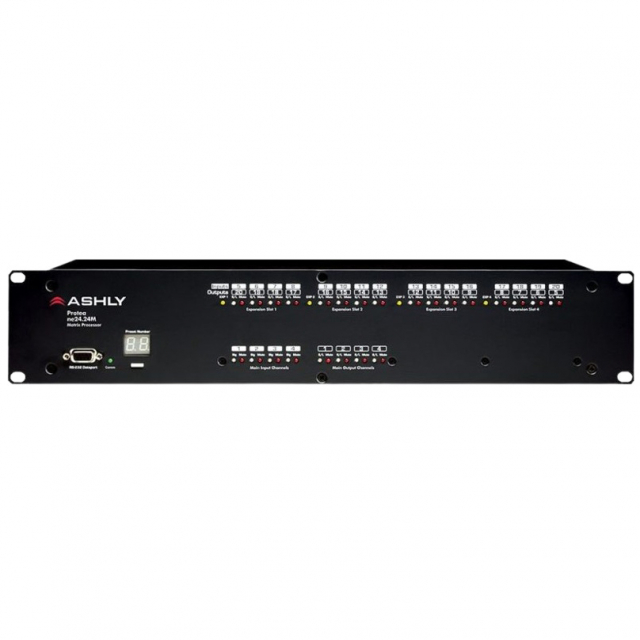

Ashly NE24.24M(4X20) Protea NE Series 4x20 DSP Matrix Mixer

Ashly Audio, NE24.24M(4X20), Protea NE Series DSP Matrix Mixer, 4 Inputs x 20 Outputs

Features:

• 10/100 Ethernet & RS-232 computer interface standard
• Easy and intuitive user interface
• Control with free Ashly Remote iOS App Mic/line inputs
• 24-bit A/D-D/A audio resolution
• Up to 24 channels of audio processing
• 4x4 base unit configuration
• Expand inputs or outputs 4 channels per module
• Modules easily field installable
• Euroblock connectors for audio, preset recall, DC remote level control, and data in/out
• 31 preset locations
• Remote controls for level, preset recall, and programmable functions
• Third-party control-friendly
• Input and output metering viewable in dBu
• Multi-level security
• Safety/Compliance: cTUVus, FCC, CE, RoHS

Protea™ ne24.24M Matrix Processor will more than satisfy your requirements for any zoned system.

When your installation requires input/output matrixing with signal processing, it isn't much easier than programming your channels using Protea™ ne Software on your PC. The ne24.24M uses modular expansion cards to provide up to 24 audio matrixing and processing channels. The base unit offers a 4-input/4-output configuration. Each input and output expansion card has an individual DSP processor allowing you to expand the total input or output 4 channels of DSP processing at a time. These cards are easily installed in the field without reprogramming the device.

Matrixing allows you to route any input to any output and control individual levels once they have been assigned. Fixed path architecture and extensive processing power per channel will reduce the amount of time it takes to set up your system.

For more information, please see Data Sheet
