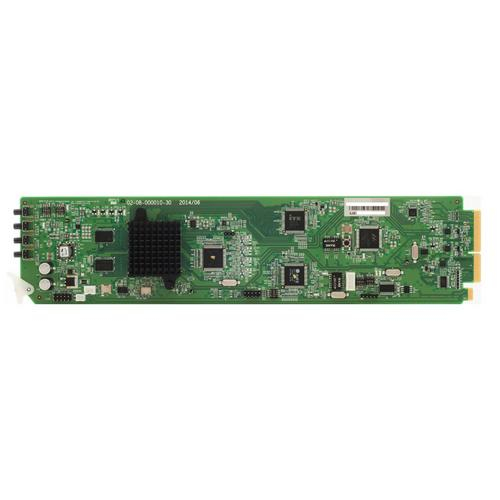

Buy Apantac OG-Micro-UDX-MB, SDI Up/Down/Cross Converter with HDMI Output

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Input	3G/HD/SD-SDI/Composite
Total Windows	1
Serial Digital	SMPTE 424M 292M, 259M
Equalization	120m at 2.97 Gbps, 140m at 1.48 Gbps, 400m at 270 Mbps with Belden 1694A
Return Loss	> 15db up to 1.485 Gbps, > 10db up to 3G
Embedded Audio	SMPTE-272M-A
Composite	NTSC (SMPTE-170M), PAL (ITU624-2)
Signal Level	1V nominal Power 12W
Impedance	75 ohm
Output	2 x SDI loopout, 1 x HDMI/DVI, 1 x SDI
HDMI (OG-MicroUDX-RM)	800x480 to 1920x1200 (1080p) 50/59.94/60Hz
RJ45 (OG-MicroUDX-RMx)	Up to 35 feet with passive receiver Up to 115 feet with active receiver (option: HDMI-1-R)
SDI	Matching the HDMI output resolution up to 3G
IP	100 Base-T, TSL, AXP_Lite protocol
DC Offset	0V, + - 0.1V
Return Loss	40db up to 5MHz

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Input	3G/HD/SD-SDI/Composite
Total Windows	1
Serial Digital	SMPTE 424M 292M, 259M
Equalization	120m at 2.97 Gbps, 140m at 1.48 Gbps, 400m at 270 Mbps with Belden 1694A
Return Loss	> 15db up to 1.485 Gbps, > 10db up to 3G
Embedded Audio	SMPTE-272M-A
Composite	NTSC (SMPTE-170M), PAL (ITU624-2)
Signal Level	1V nominal Power 12W
Impedance	75 ohm
Output	2 x SDI loopout, 1 x HDMI/DVI, 1 x SDI
HDMI (OG-MicroUDX-RM)	800x480 to 1920x1200 (1080p) 50/59.94/60Hz
RJ45 (OG-MicroUDX-RMx)	Up to 35 feet with passive receiver Up to 115 feet with active receiver (option: HDMI-1-R)
SDI	Matching the HDMI output resolution up to 3G
IP	100 Base-T, TSL, AXP_Lite protocol
DC Offset	0V, + - 0.1V
Return Loss	40db up to 5MHz

Note: Please read description carefully. Do not base your order on the picture presented.
