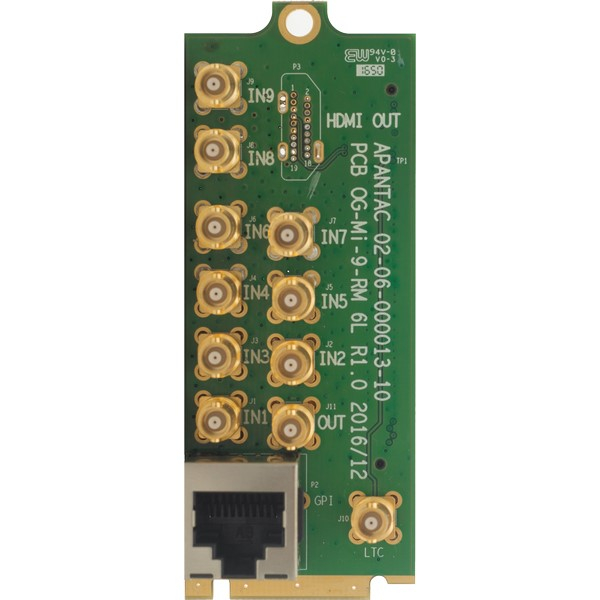

Buy Apantac OG-Mi-9+-SET-1, OpenGear 9 x 1 SDI Video Multiviewers

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Option:: Option: 1 Output

Features:

OpenGear 3.0 card-based form factor
Low energy - only uses 15 W of power
Low latency - single frame processing delay
Windows can be sized and moved freely
Accepts 9 auto-detect 3G Level A&B /HD/SD-SDI inputs
Requires an OpenGear frame with Advanced Networking (onboard Ethernet Switch)
Decode up to 16 embedded audio per SDI input
Ethernet for configuration and external control
Dynamic UMD/labels & Tallies (TSL)
Stand alone labels, customizable logos
9 GPIs for tallies, count up/down triggers or preset recall
Built-in analog/digital clocks can sync with LTC or NTP
Borders can be turned on or off
Two sets of safe area markers
Visual Alarm tags for video/audio alarm detection

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Description

9 x 2 SDI Multiviewer Card with HDMI and SDI Output (dual Outputs)

Inputs

9x 3G (level A/B)/HD/SD-SDI

Video Outputs

Identical 1 x HDMI and 1x SDI

Connector Type

HD-BNC

Total Windows

Audio Outputs

Embedded stereo audio pair

Output Resolution

HDMI: 1920x1080P 50/59.94 Hz
SDI: 1080P/1080i 50/59.94 Hz

Output Resolution

16:9 for all or 4:3 for Standard definition

Latency

1 frame

Serial Digital

SMPTE 424M, 292M, 259M Supports 525i59.94, 626i50, 720p50, 720p 59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p50, 1080p59.94, 1080p60 Level A/B

Equalization

120m at 2.97 Gbps
140m at 1.48 Gbps
400m at 270 Mbps
with Belden 1694A

Return Loss

> 15db up to 1.485 Gbps
> 10db up to 3G

Embedded Audio

SMPTE-272M-A

On-Screen Display

Borders, Static and Dynamic Labels/UMDs, Tally LEDs, Alarm Tags, Clocks and Logos

Sdi Color Encoding

10 bit 4:2:2

Gpi

9 for tally or AXP (ASCII command)

100 Base-T for control and configuration and TSL, AXP protocol

Supported Ip Protocol

TSL 3.1 for dynamic tallies and labels Optional: Utah and PESA router protocols

Alarms

No audio, audio high/low, no video, video format display

Electrical

15 W, 90 - 250 V 50/60 Hz

Emi/Rfi

Complies with FCC Part 15, Class A, CE, EU EMC, C-tick

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Description

9 x 2 SDI Multiviewer Card with HDMI and SDI Output (dual Outputs)

Inputs

9x 3G (level A/B)/HD/SD-SDI

Video Outputs

Identical 1 x HDMI and 1x SDI

Connector Type

HD-BNC

Total Windows

Audio Outputs

Embedded stereo audio pair

Output Resolution

HDMI: 1920x1080P 50/59.94 Hz
SDI: 1080P/1080i 50/59.94 Hz

Output Resolution

16:9 for all or 4:3 for Standard definition

Latency

1 frame

Serial Digital

SMPTE 424M, 292M, 259M Supports 525i59.94, 626i50, 720p50, 720p 59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p50, 1080p59.94, 1080p60 Level A/B

Equalization

120m at 2.97 Gbps
140m at 1.48 Gbps
400m at 270 Mbps
with Belden 1694A

Return Loss

> 15db up to 1.485 Gbps
> 10db up to 3G

Embedded Audio

SMPTE-272M-A

On-Screen Display

Borders, Static and Dynamic Labels/UMDs, Tally LEDs, Alarm Tags, Clocks and Logos

Sdi Color Encoding

10 bit 4:2:2

Gpi

9 for tally or AXP (ASCII command)

100 Base-T for control and configuration and TSL, AXP protocol

Supported Ip Protocol

TSL 3.1 for dynamic tallies and labels Optional: Utah and PESA router protocols

Alarms

No audio, audio high/low, no video, video format display

Electrical

15 W, 90 - 250 V 50/60 Hz

Emi/Rfi

Complies with FCC Part 15, Class A, CE, EU EMC, C-tick

Note

Note: Please read description carefully. Do not base your order on the picture presented.
