Apantac, HDM2.0-FIB-II-E-HID-SM, HDMI 2.0 Fiber Extender with HID support, Up to 10 KM Cable Length

Features:

Front View

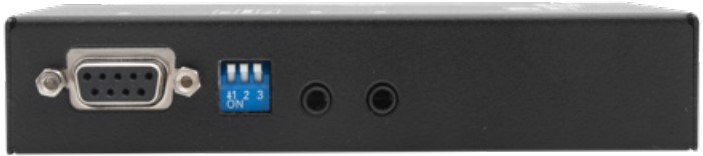

Rear View

For more information, please see Data Sheet

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Video Input	HDMI
Video Output	LC fiber
Audio	Supports multi-channel PCM, Dolby True-HD and DTS HD master Audio
RS-232	For FW upgrade
IR In/Out	1 x 3/5 mm stereo jack each.
Maximum Video Resolution	Up to 4096x2160 at 60Hz
Interconnect Cable	LC fiber, single mode
Maximum Cable Length	10 Km on single-mode fiber
Temperatures	Operating temperature: 0 ~ 50 C, storage temperature: -20 ~ 85C
Environmental Humidity	0 ~ 80% (non-condensing)
Power Consumption	1.155 mW
Power / Weight / Dimension	DC 12V, 1.5A. 600g. 122 x 74 x 29 mm

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Video Input	HDMI
Video Output	LC fiber
Audio	Supports multi-channel PCM, Dolby True-HD and DTS HD master Audio
RS-232	For FW upgrade
IR In/Out	1 x 3/5 mm stereo jack each.
Maximum Video Resolution	Up to 4096x2160 at 60Hz
Interconnect Cable	LC fiber, single mode
Maximum Cable Length	10 Km on single-mode fiber
Temperatures	Operating temperature: 0 ~ 50 C, storage temperature: -20 ~ 85C
Environmental Humidity	0 ~ 80% (non-condensing)
Power Consumption	1.155 mW
Power / Weight / Dimension	DC 12V, 1.5A. 600g. 122 x 74 x 29 mm
