Buy AOpen 91.DEK00.A1A0, Media Player DE5500 i5-7287U CPU 4GBX2 DDR4

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Version:: Version: i5-7287U CPU 4GX2

Features:

Supports two 4K2K UHD resolution (3840x2160 at60Hz) displays
Supports HEVC/H.265 & VP9 high-definition video playback
Powerful computing, low power consumption
Various I/O connectivity: dual Giga LAN & 4 x USB3.0 & 1 x DB9 RS232
Support AOPEN AiCU technology

The Digital Engine DE5500 is supported by the 7th generation Intel® Core i5. It consumes little power due to the of this mobile processor. It supports a DDR4 dual channel memory with a maximum capacity of 32GB. The standard Digital Engine small form factor can easily be integrated into a kiosk or behind a screen for a digital signage application. Furthermore, the latest AOPEN intelligent Control Unit (AiCU) is optional. This feature provides an easy management tool that can monitor and control the device.

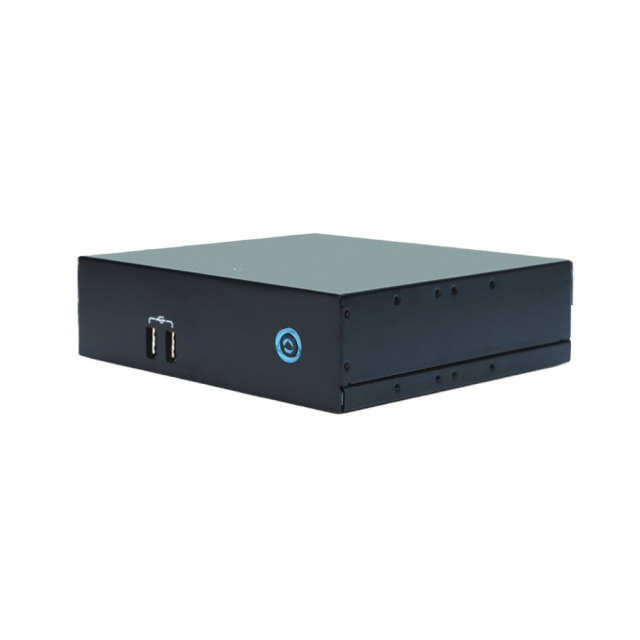

Front Panel DE5500

Rear Panel DE5500

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Dimension

166 x 48 x 157.5 mm
6.54 x 1.89 x 6.18 inch

Volume

1.25L

Weight

1.12 kgs/2.46 lbs

CPU

Socket: CPU on board
Type: Intel 7th Gen Kaby Lake U TDP ≦15W/28W

AiCU

1.0 (option)

Memory

Channels: Dual Channel
Type: DDR4 SO-DIMM 2133 x 2
Data rate: 2133
Memory: 4GBx2

Graphics

Chip: Intel HD Graphics Iris Plus 650

Audio

Type: Realtek HD Audio ALC269Q
Channel: Stereo

LAN

Intel GIGA LAN x 2 (i210AT/ i219LM) 10/100/1000 Mbps

Storage Bay

2.5" SATA HDD x 1
M.2 SSD x 1

Front Panel IO

USB 3.0 Port x 2
Others: Power Button x 1

Rear Panel IO

DC Jack: 12/19V, 5517 x 1
HDMI 2.0 Port x 2
USB 3.0 Port x 2
RJ 45 LAN Jack x 2
Audio Line-out x 1
Antenna Holes x 2
COM Port RS232 x 2
Others: Extend power SW x 1

CPU Thermal Module

AOpen Thermal Module

WatchDog Timer

1 ~ 255 SEC./min

Adapter

65W (19V, 3.424A) AC Adapter

Input Voltage

AC 100 ~ 240V

Environment

MTBF

50,000hrs

Operating Temperature

0 ~50ºC (32 ~ 122ºF)

Storage Temperature

-20 ~ 60ºC (-4 ~ 140ºF)

Relative Humidity

95% RH (non-Condensing)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Dimension

166 x 48 x 157.5 mm
6.54 x 1.89 x 6.18 inch

Volume

1.25L

Weight

1.12 kgs/2.46 lbs

CPU

Socket: CPU on board
Type: Intel 7th Gen Kaby Lake U TDP ≦15W/28W

AiCU

1.0 (option)

Memory

Channels: Dual Channel
Type: DDR4 SO-DIMM 2133 x 2
Data rate: 2133
Memory: 4GBx2

Graphics

Chip: Intel HD Graphics Iris Plus 650

Audio

Type: Realtek HD Audio ALC269Q
Channel: Stereo

LAN

Intel GIGA LAN x 2 (i210AT/ i219LM) 10/100/1000 Mbps

Storage Bay

2.5" SATA HDD x 1
M.2 SSD x 1

Front Panel IO

USB 3.0 Port x 2
Others: Power Button x 1

Rear Panel IO

DC Jack: 12/19V, 5517 x 1
HDMI 2.0 Port x 2
USB 3.0 Port x 2
RJ 45 LAN Jack x 2
Audio Line-out x 1
Antenna Holes x 2
COM Port RS232 x 2
Others: Extend power SW x 1

CPU Thermal Module

AOpen Thermal Module

WatchDog Timer

1 ~ 255 SEC./min

Adapter

65W (19V, 3.424A) AC Adapter

Input Voltage

AC 100 ~ 240V

Environment

MTBF

50,000hrs

Operating Temperature

0 ~50ºC (32 ~ 122ºF)

Storage Temperature

-20 ~ 60ºC (-4 ~ 140ºF)

Relative Humidity

95% RH (non-Condensing)
