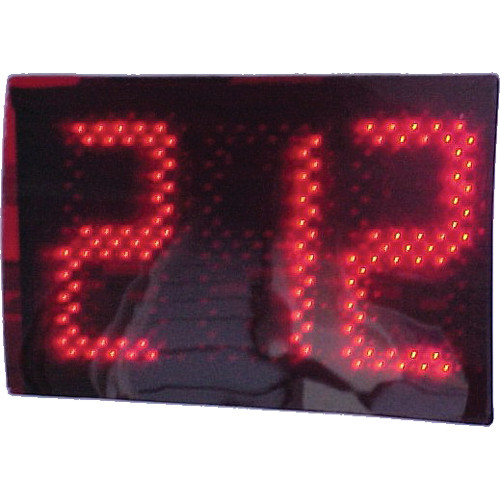

Alzatex dsp703b 3-Digit Display, 7" High Digits, Metal Frame

dsp703b Includes Only:

• Large LED Display
• RC Reference card
• WD Wiring diagram
• M8BK003F Cable, 3ft, Cat-5
• Not Included: Keypad, transformer

Features:

• 2-digit count up timer settable to Day, Hour, Min or Sec.
• 2-digit count down timer settable to Day, Hour, Min or Sec.
• Count Up Timer with ground closure inputs or optional Start, Stop and Reset buttons.
• Digital Counter with ground closure inputs or optional Next (Increment), Previous (Decrement) and Reset buttons.
• Connect two or more TimeKeepers together. One becomes the timer, and the others become remote displays.

Features with optional button module:

• Count Up and Count Down Timer. (0 to 99.59 MM:SS or 0 to 99:59:59 HH:MM:SS).
• User-programmable stored settings.
• Built-in time-of-day clock displays hours/minutes in 12/24 hour time or minutes/seconds.

Mounting methods

Standard mounting is two D-rings, one at either end of the display. 1/4-20 nuts on the bottom of the unit for attaching feet or wall bracket. The feet or wall brackets are NOT included and may be ordered separately. The display has holes in the top for adding a handle. The handle is NOT included and may be ordered separately.
