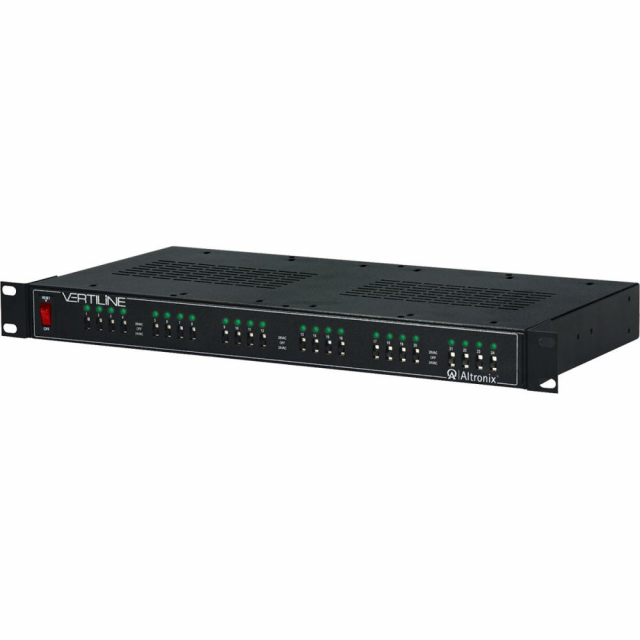

Altronix VERTILINE24C Vertiline CCTV Power Supply, 24 Fused Outputs

Output: 24 Fused Output
  • Brand Altronix
  • Part # VERTILINE24C
  • Model # Vertiline
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Quantity
Share:
Ask a question

Options and Related Products

Output:
Output: 24 Fused Output

Features:

  • Twenty-four (24) power LEDs.
  • Illuminated master power disconnect circuit breaker with manual reset.
  • IEC 320 - 3-wire grounded line cord (detachable).

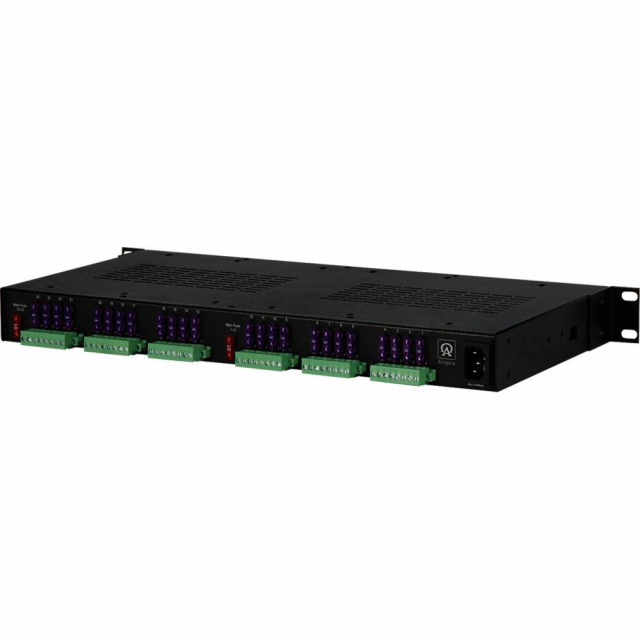

  • Removable terminal blocks with locking screw flange.

Vertiline24C CCTV Rack Mount Power Supply provides 24 fuse protected power outputs in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. This unit features individually selectable 24VAC and/or 28VAC power outputs with surge suppression.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews
Input Voltage115VAC 60 Hz., 3A.
OutputTwenty-four (24) individually selectable 24VAC or 28VAC power outputs with OFF position. 24VAC or 28VAC at 10A max. total (0.417A per device, 3A max.). Twenty-four (24) external blade fuse protected outputs rated at 3A. Main fuse rated at 10A. Surge suppression.
TemperatureOperating 0° C to 49° C (32° F to 120° F). Storage - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity 85% +/- 5%. BTU/Hr. (approx.): 24VAC: 123 BTU/Hr. 28VAC: 143 BTU/Hr. System AC input VA requirement: 345VA.
Indicators (LED)Master Illuminated master power disconnect circuit breaker with manual reset. Output Twenty-four (24) individual LEDs.
Dimensions (H x W x D)1.625" x 19.125" x 8.5" (41.3mm x 486mm x 216mm).
Product Details
Input Voltage115VAC 60 Hz., 3A.
OutputTwenty-four (24) individually selectable 24VAC or 28VAC power outputs with OFF position. 24VAC or 28VAC at 10A max. total (0.417A per device, 3A max.). Twenty-four (24) external blade fuse protected outputs rated at 3A. Main fuse rated at 10A. Surge suppression.
TemperatureOperating 0° C to 49° C (32° F to 120° F). Storage - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity 85% +/- 5%. BTU/Hr. (approx.): 24VAC: 123 BTU/Hr. 28VAC: 143 BTU/Hr. System AC input VA requirement: 345VA.
Indicators (LED)Master Illuminated master power disconnect circuit breaker with manual reset. Output Twenty-four (24) individual LEDs.
Dimensions (H x W x D)1.625" x 19.125" x 8.5" (41.3mm x 486mm x 216mm).
Note

Note: Please read description carefully. Do not base your order on the picture presented.
