Buy Altronix NETWAYSP4WPX, NetWay 4 Port PoE+ Hardened Switch

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

Two (2) Gigabit SFP ports.
120W total power: Four (4) PoE/PoE+ (up to 30W) ports or two (2) Hi-PoE (60W) ports.
Four (4) 10/100/1000 Mbps ports.
IEEE 802.3at (30W), IEEE 802.3af (15W) compliant, or Hi-PoE (60W).
PoE activity LED indicators.
Automatic switch over to stand-by battery when AC fails.
VLAN (Virtual Local Area Networks) subnetwork allows for the grouping together of devices for improved network traffic and higher security.
UL Listed in the U.S. and Canada.
CE Approved.

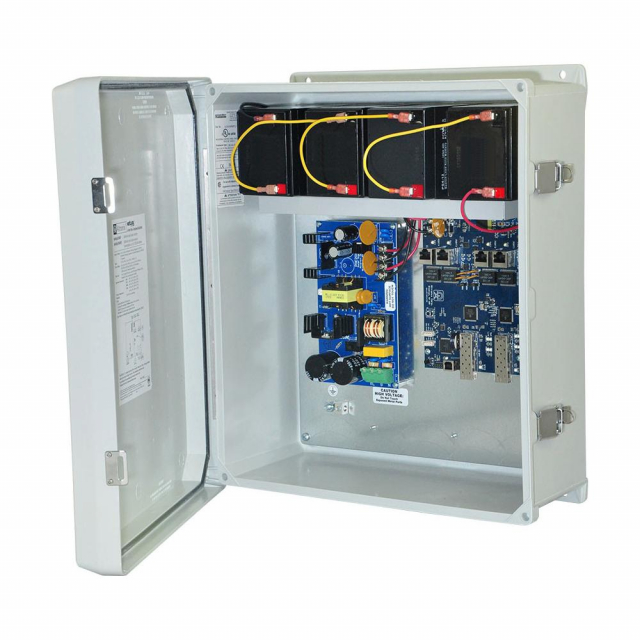

Altronix NetWaySP4WPX Outdoor PoE+ Hardened Switch provides two (2) 1Gb SFP (Fiber) ports and four (4) PoE+ (30W) or two (2) Hi-PoE (60W) ports, passing data for PoE/PoE+/Hi-PoE compliant devices. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control, and report power and diagnostics from anywhere.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Subject to the use of all the optional accessories
Input Voltage	115VAC, 60 Hz, 2.5A or 230VAC, 50/60 Hz, 1.3A. Fusing: 5A/250V.
Power Output	Four (4) ports PoE+ (30W) or up to two (2) Hi-PoE (60W) ports. IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant. 120W total power. Integral surge protection.
Fiber Port	Two (2) Gigabit SFP ports. Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).
Ethernet Ports	Four (4) 10/100/1000 Mbps ports. Connectivity: RJ45, auto-crossover. Wire type: 4-pair CAT5 or better structured cable. Distance: up to 100m. Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
Battery Backup (not included)	Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails.
LEDs	Individual PoE On LEDs for each port. Individual IP Link status, 10/100Base-T/active LEDs for each port. ALOS LED indicates fiber connection for SFP port. Heartbeat LED indicates proper operation of the unit.
VLAN	Multiple management VLAN assignment. 802.1Q Tagged VLAN. Up to 10 VLAN groups. ID Range 2-4095.
LINQ Technology	Remote network management allows for camera/device reset and monitoring. Provides local and/or remote access to critical information via LAN/WAN. Email and Windows Dashboard Alert notifications report real-time diagnostics. Event log tracks history.
Temperature	Operating: 60W: - 40° C to 75° C ( - 40° F to 167° F). 75W: - 40° C to 70° C ( - 40° F to 158° F). 100W: - 40° C to 55° C ( - 40° F to 131° F). 120W: - 40° C to 45° C ( - 40° F to 113° F). Storage: - 40° C to 85° C ( - 40° F to 185° F). Relative Humidity: 85% +/- 5% BTU/Hr. (approx.): 61 BTU/Hr.
Operating Altitude	- 304.8 to 2,000m.
Enclosure Dimensions (H x W x D approx.)	17.53" x 15.3" x 6.67" (445.3mm x 388.6mm x 169.4mm).
Agency Listings	UL/cUL UL60950-1 (Information Technology Equipment). UL60950-22 (Information Technology Equipment to be installed Outdoors). CE European Conformity.

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Subject to the use of all the optional accessories
Input Voltage	115VAC, 60 Hz, 2.5A or 230VAC, 50/60 Hz, 1.3A. Fusing: 5A/250V.
Power Output	Four (4) ports PoE+ (30W) or up to two (2) Hi-PoE (60W) ports. IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant. 120W total power. Integral surge protection.
Fiber Port	Two (2) Gigabit SFP ports. Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).
Ethernet Ports	Four (4) 10/100/1000 Mbps ports. Connectivity: RJ45, auto-crossover. Wire type: 4-pair CAT5 or better structured cable. Distance: up to 100m. Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
Battery Backup (not included)	Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails.
LEDs	Individual PoE On LEDs for each port. Individual IP Link status, 10/100Base-T/active LEDs for each port. ALOS LED indicates fiber connection for SFP port. Heartbeat LED indicates proper operation of the unit.
VLAN	Multiple management VLAN assignment. 802.1Q Tagged VLAN. Up to 10 VLAN groups. ID Range 2-4095.
LINQ Technology	Remote network management allows for camera/device reset and monitoring. Provides local and/or remote access to critical information via LAN/WAN. Email and Windows Dashboard Alert notifications report real-time diagnostics. Event log tracks history.
Temperature	Operating: 60W: - 40° C to 75° C ( - 40° F to 167° F). 75W: - 40° C to 70° C ( - 40° F to 158° F). 100W: - 40° C to 55° C ( - 40° F to 131° F). 120W: - 40° C to 45° C ( - 40° F to 113° F). Storage: - 40° C to 85° C ( - 40° F to 185° F). Relative Humidity: 85% +/- 5% BTU/Hr. (approx.): 61 BTU/Hr.
Operating Altitude	- 304.8 to 2,000m.
Enclosure Dimensions (H x W x D approx.)	17.53" x 15.3" x 6.67" (445.3mm x 388.6mm x 169.4mm).
Agency Listings	UL/cUL UL60950-1 (Information Technology Equipment). UL60950-22 (Information Technology Equipment to be installed Outdoors). CE European Conformity.

Note

Note: Please read description carefully. Do not base your order on the picture presented.
