Buy Altronix NETWAY81G, PoE Midspan 8 Port 30W 115/230VAC Input

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Altronix, NETWAY81G, PoE Midspan, 8 Port, 10/100/1000, 30W Max Per Port (240W Total Power), Battery Charging, 115/230VAC Input

Features:

IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant
Eight (8) ports for cameras/edge devices over ethernet
Speed: 10/100/1000 Mbps
30W maximum power per port
Port status LEDs
Auto detection and protection of legacy non-PoE cameras/devices
Built-in battery charger
CE European Conformity

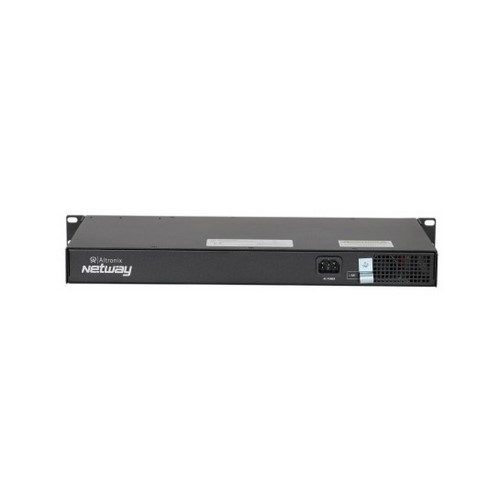

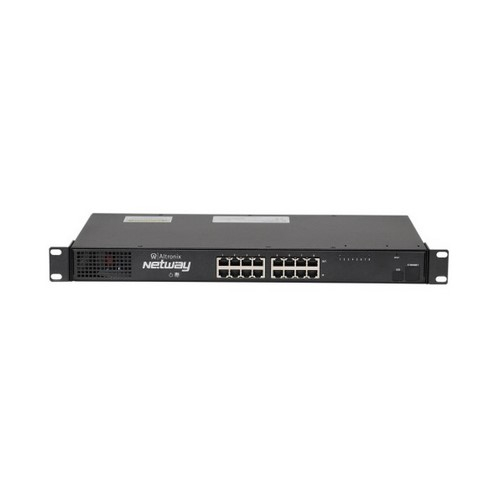

Altronix NetWay81G is an 8 port midspan in a 1U rack enclosure. It provides PoE/PoE+ (up to 30W power per port), and passes data at 10/100/1000 Mbps at distances up to 100m. Features also include an integral battery charger for applications requiring backup.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Input

115VAC 60Hz, 3.25A or 230VAC 50/60Hz, 2A

Power

Unit provides PoE / PoE+
30W full power per port
Total power: 240W

Ethernet

Connectivity: RJ45, auto-crossover
Wire type: 4-pair CAT5e or better structured cable
Distance: up to 100m
Speed: 10/100/1000 BaseT, half/full duplex, auto negotiation

Functions

Auto detection and protection of legacy non-PoE cameras/edge devices.

Battery Charging

Built-in battery charger (optional rack mount battery enclosure - RE2).
Automatic switchover to stand-by battery when AC fails.
(Batteries are sold separately).

Temperature

Operating: - 20° C to 50° C ( - 4° F to 122° F).
Storage: - 20° to 70° C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 123 BTU/Hr.
Operating Altitude: Up to 2,000m.

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Input

115VAC 60Hz, 3.25A or 230VAC 50/60Hz, 2A

Power

Unit provides PoE / PoE+
30W full power per port
Total power: 240W

Ethernet

Connectivity: RJ45, auto-crossover
Wire type: 4-pair CAT5e or better structured cable
Distance: up to 100m
Speed: 10/100/1000 BaseT, half/full duplex, auto negotiation

Functions

Auto detection and protection of legacy non-PoE cameras/edge devices.

Battery Charging

Built-in battery charger (optional rack mount battery enclosure - RE2).
Automatic switchover to stand-by battery when AC fails.
(Batteries are sold separately).

Temperature

Operating: - 20° C to 50° C ( - 4° F to 122° F).
Storage: - 20° to 70° C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 123 BTU/Hr.
Operating Altitude: Up to 2,000m.

Note

Note: Please read description carefully. Do not base your order on the picture presented.
