NETWAY4ESK Includes Only:

NetWay4ES Switch, 4 Port PoE/PoE+, Enables 4 IP Devices over 1 structured cable, Input Power PoE/PoE+/Hi-PoE, Typically used with Netway1D
NetWay1D Midspan Injector, Single Port, 10/100/1000, PoE/PoE+/Hi-PoE or 56VDC Aux. Output, 60W, 115/230VAC

Features:

Auto detection and protection of legacy non-PoE cameras/devices.
Manual PoE shutdown (Spring terminals).
IEC 320 - 3-wire grounded line cord (detachable).

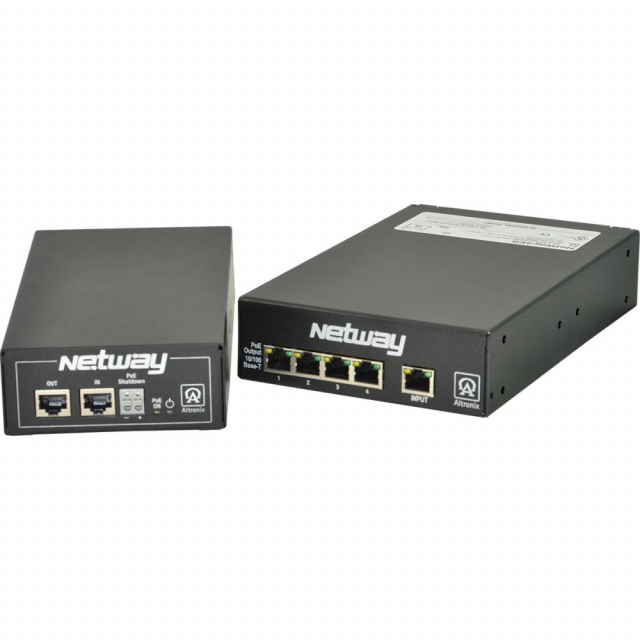

Altronix NetWay4ESK kit includes NetWay4ES and NetWay1D. NetWay4ES, a 4-Port PoE/PoE+ switch, is designed for installation at the IDF (Intermediate Distribution Frame). It allows for system expansion by accommodating up to four (4) IP cameras/devices over a single CAT-5 or higher structured cable. NetWay1D midspan injector provides up to 60W of power and is typically located at the MDF (Main Distribution Frame).

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Subject to the use of all the optional accessories
Input Voltage	NetWay1D: 115VAC, 60Hz, 1.2A or 230VAC, 50/60Hz, 0.75A. NetWay4ES: powered by Netway1D (included).
Power Output	Maximum power per port: PoE+ (30W) Total maximum power: 60W.
Ethernet	Connectivity: RJ45, auto-crossover. Wire type: 4-pair Cat-5 or better structured cable. Distance: up to 100m. Speed: 10/100BaseT, half/full duplex, auto negotiation.
LED Indicators	NetWay1D: AC Power. Yellow - IP Link status, Green - 10/100Base-T/active. NetWay4ES: Yellow - IP Link status, Green - 10/100Base-T/active.
Temperature	NetWay1D: Operating: 30W: - 30° C to 50° C (-22° F to 122° F). 60W: - 30° C to 40° C (-22° F to 104° F). NetWay4ES: Operating: 60W: - 40° C to 75° C (-40° F to 167° F). Greater than 60W: - 40° C to 50° C (-40° F to 122° F). Storage: - 40° C to 70° C (-40° to 158° F). Relative Humidity 85% +/- 5%. Operating Altitude: - 304.8 to 2,000m.
Dimensions (W x L x H)	NetWay1D: 1.75" x 4.125" x 7.25" (44.4mm x 104.8mm x 184.1mm). NetWay4ES: 1.7" x 5.23" x 8.42" (43.18mm x 132.84mm x 213.87mm).

Product Details

Subject to the use of all the optional accessories
Input Voltage	NetWay1D: 115VAC, 60Hz, 1.2A or 230VAC, 50/60Hz, 0.75A. NetWay4ES: powered by Netway1D (included).
Power Output	Maximum power per port: PoE+ (30W) Total maximum power: 60W.
Ethernet	Connectivity: RJ45, auto-crossover. Wire type: 4-pair Cat-5 or better structured cable. Distance: up to 100m. Speed: 10/100BaseT, half/full duplex, auto negotiation.
LED Indicators	NetWay1D: AC Power. Yellow - IP Link status, Green - 10/100Base-T/active. NetWay4ES: Yellow - IP Link status, Green - 10/100Base-T/active.
Temperature	NetWay1D: Operating: 30W: - 30° C to 50° C (-22° F to 122° F). 60W: - 30° C to 40° C (-22° F to 104° F). NetWay4ES: Operating: 60W: - 40° C to 75° C (-40° F to 167° F). Greater than 60W: - 40° C to 50° C (-40° F to 122° F). Storage: - 40° C to 70° C (-40° to 158° F). Relative Humidity 85% +/- 5%. Operating Altitude: - 304.8 to 2,000m.
Dimensions (W x L x H)	NetWay1D: 1.75" x 4.125" x 7.25" (44.4mm x 104.8mm x 184.1mm). NetWay4ES: 1.7" x 5.23" x 8.42" (43.18mm x 132.84mm x 213.87mm).
