Features:

2-wire horn/strobe Sync mode allows audible notification appliances (horns) and visual notification appliances (strobes) to be silenced/deactivated at the same time.
Sync protocols include Potter/Amseco, Gentex®, System Sensor®, and CooperWheelock®.
Temporal Code 3, Steady Mode, Input to Output Follower Mode (maintains synchronization of notification appliances circuit).
Compatible with 12VDC or 24VDC fire panels.
Output loop supervision steered to Input 1 or Input 2.
Signal circuit trouble memory (helps identify intermittent loop problems).
Common trouble input and output for external trouble signals tie-in.
Ground fault detection.

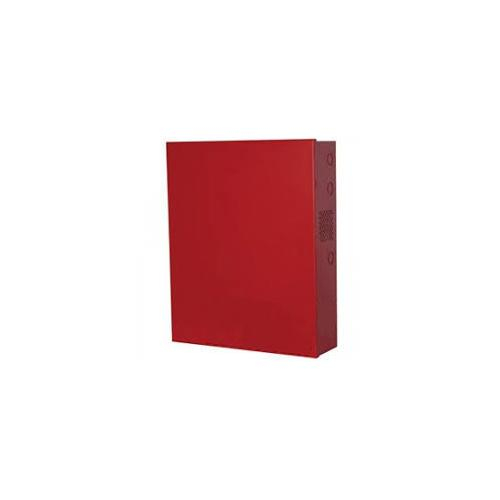

AL1002ULADA is an extremely cost effective voltage regulated remote NAC Power Extender. It may be connected to any 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC) expansion (supports ADA requirements) and providing auxiliary power to support system accessories.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Subject to the use of all the optional accessories
Input Voltage	120VAC, 60Hz, 5A. Two (2) Class A or two (2) Class B inputs. Two (2) NC dry contact trigger inputs. Input Ratings (INP1 and INP2): 8-30VDC 6.5mA max from FACP. 12V 6.5mA, 24V 6.5mA from FACP.
Output	Voltage: 24VDC power-limited outputs. Current: 10A max. total alarm current. 2.5A max. current per output. Two (2) outputs may be paralleled for more power on an indicating circuit. Auxiliary: 1A. Other: Thermal and short circuit protection with auto reset. Filtered and regulated outputs. Programmable Supervised Indicating Circuit Outputs: Four (4) Class B, or Two (2) Class A, or One (1) and Two (2) Class B.
Back-up Battery (not included)	Type: Sealed lead acid or gel type. Failover: Upon AC loss, instantaneous.
Supervision	AC Failure: Form “C" contacts. Battery: Form “C" contacts.
Indicators (LED)	AC Power (Green): Input voltage is present. DC Output (Red): Powered. Logic Board (Red and Green): Output status.
Temperature	Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70°C ( - 4° F to 158° F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 31 BTU/Hr.

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Subject to the use of all the optional accessories
Input Voltage	120VAC, 60Hz, 5A. Two (2) Class A or two (2) Class B inputs. Two (2) NC dry contact trigger inputs. Input Ratings (INP1 and INP2): 8-30VDC 6.5mA max from FACP. 12V 6.5mA, 24V 6.5mA from FACP.
Output	Voltage: 24VDC power-limited outputs. Current: 10A max. total alarm current. 2.5A max. current per output. Two (2) outputs may be paralleled for more power on an indicating circuit. Auxiliary: 1A. Other: Thermal and short circuit protection with auto reset. Filtered and regulated outputs. Programmable Supervised Indicating Circuit Outputs: Four (4) Class B, or Two (2) Class A, or One (1) and Two (2) Class B.
Back-up Battery (not included)	Type: Sealed lead acid or gel type. Failover: Upon AC loss, instantaneous.
Supervision	AC Failure: Form “C" contacts. Battery: Form “C" contacts.
Indicators (LED)	AC Power (Green): Input voltage is present. DC Output (Red): Powered. Logic Board (Red and Green): Output status.
Temperature	Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70°C ( - 4° F to 158° F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 31 BTU/Hr.
