Buy AlgoLaser Alpha 10W, Diode Laser Engraver 10W

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Type:: Type: Alpha 10W

Features:

Upgraded Fixture of Laser Module
Spring-loaded Mechanical Focus
Nylon Rollers
Safety Precautions:
- a.Watch Dog (Incorrect settings of the machine cause disordered operation of the machine. it will stop the machine to avoid risks.)
- b.Laser detection and protection
- c.USB Connection Detection and Protection
- d.Machine Offset & Shake Detection Protection
- e.Emergency Stop Switch
- f.Voltage detection and protection
- g.Key Lock

Every 50 hours of use, please clean the lens with a medical cotton swab and alcohol.

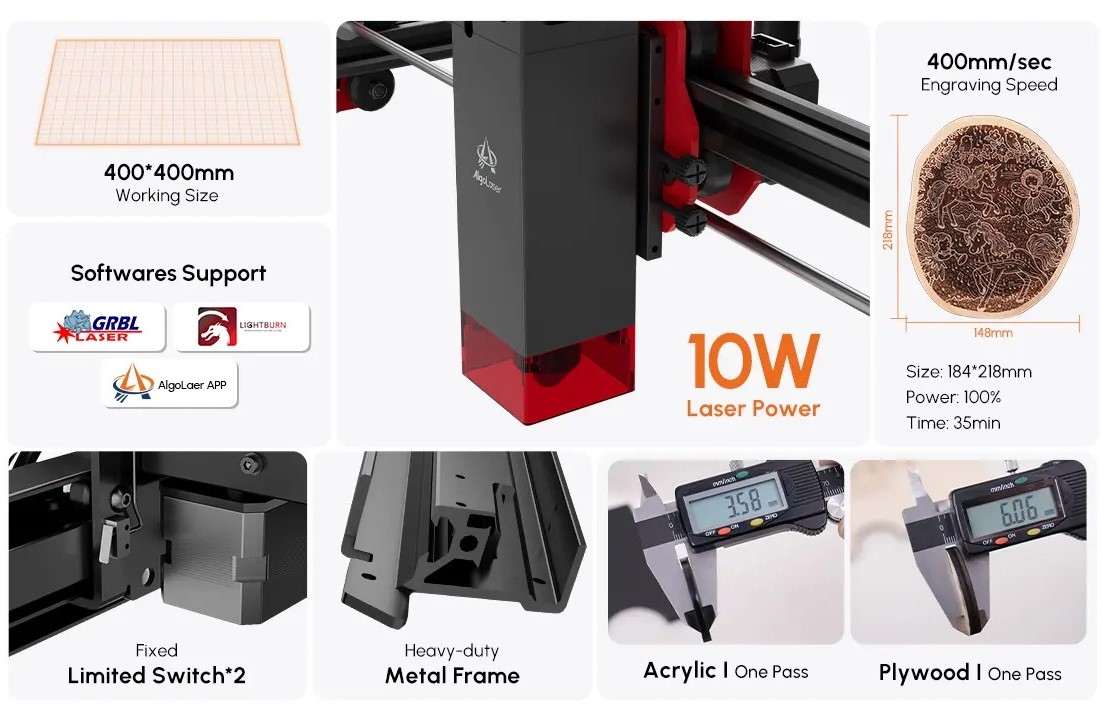

AlgoLaser Alpha 10W

AlgoLaser Alpha 10W Diode Laser Engraver

The 2nd COS Optical Technology

10X Faster Actual Engraving Speed

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Supplies

Optional Accessories

Reviews

AlgoLaser Alpha Mechanical Frame

Optical Power

22W

Machine Power

144W

Power Supply

24V/6A

Maximum Engraving Speed

20,000 mm/min

Maximum Motion Speed

30,000 mm/min

Spot Size

At 3% power: X 0.06mm - Y 0.05mm;
At 100% power: X 0.16mm - Y 0.14mm

Product Size

X585*Y674*Z200mm

Product Weight

5KG

Laser Head Life Expectancy

>8000 hours

Certification

FCC/CE/RoHS/FDA

Safety Features

Active Power-Out detection and protection,Laser Over-Exposure Time Limit,USB disconnect shutdown,Emergency stop button,Gyroscope detection,Motherboard over-temperature protection

22W One Pass cutting capacity

Birch plywood: 10mm
Basswood plywood: 15mm
Eucalyptus plywood: 5mm
Black acrylic: 10mm
Black ABS board: 4mm
MDF: 3mm
Paulownia wood: 15mm
Bamboo: 8.5mm
Gray cardboard: 3mm Steel

Software and Connection

System Supported

Android, iOS, Windows, Mac OS, Web-based

Control Software

AlgoLaser App / LightBurn/LaserGRBL

Compatible Accessories

22W laser module, Motorized Z-axis, Engraving Platform, Fireproof Box, Rotary Chuck, Rotary Roller

File Format Supported

JPG, SVG, PNG, BMP, G-code, CAD, AI, CDR, DWG, etc.

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
