ALF-SCK51TS-D Includes Only:
- 1 x 5x1 Seamless Presentation Switch

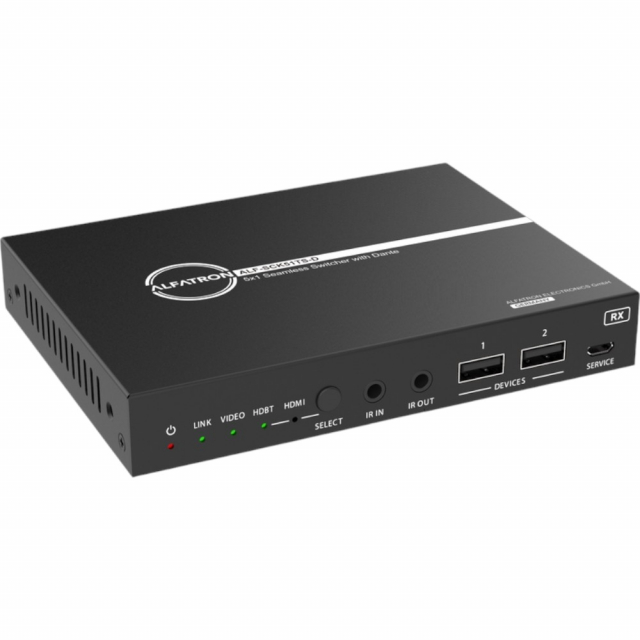

- 1 x HDBaseT Receiver
- 1 x IR Blaster Cable (1.5 meters)
- 1 x IR Wideband Receiver Cable (1.5 meters)
- 2 x 3pin-3.5mm Phoenix Connector (male)
- 3 x 5pin-3.5mm Phoenix Connector (male)
- 4 x Mounting Ear
- 8 x Machine Screw
- 1 x 24V/8A Desktop Power Supply
- 1 x AC Power Cord (1.5 meters)
- 1 x IR Remote
Features:
- HDMI 2.0b, HDCP 2. 2 , 18Gbps 4K at 6 0Hz 4:4:4
- 5 x 1 seamless switching and multi viewer
- Switcher Input: 2x USB C , 3 x HDMI , 1x Analog audio , 1x Dante 2ch, USB Host, 2x USB Peripheral inputs
- Switcher Output: 1 x HDMI and 1x HDBT mirrored , 1x Analog audio , 1x Dante 2ch

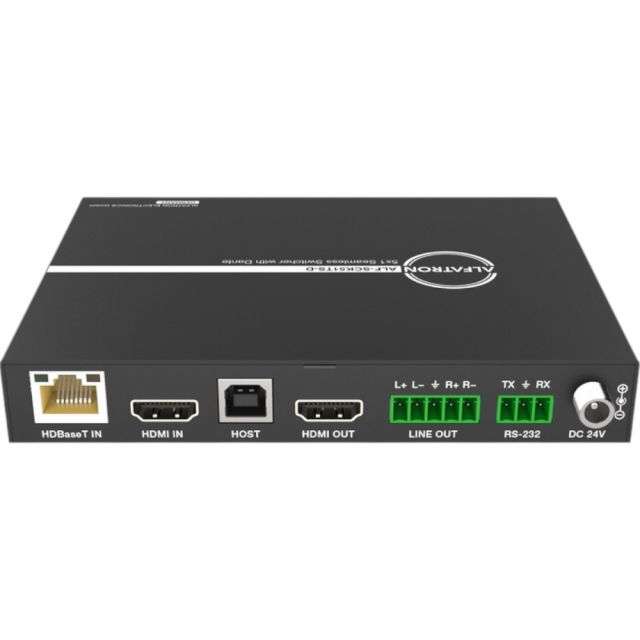

- Receiver Input: 1x HDMI, 1x HDBaseT, 1x USB Host
- Receiver Output: 1x HDMI, 1x Analog audio, RS232
- Auto or manual switching mode
- HDMI and HDBaseT mirrored outputs
- USB C supports ALT DP mode for A/V , USB 2 .0, 100M ethernet and 60W charging
- Local U SB 2 .0 KVM switching and extending USB 2.0 over HDBT 3.0
- USB Host Ports on the TX and RX.
- Uncompressed 4 K over HDBT 3.0 up to 132ft/40m via single Cat6a cable
- Uncompressed 1080P over HDBT 3.0 up to 230ft/70m via single Cat6a cable
- POE over HDBT to power RX from TX
- Audio embedded and de embedded
- Audio DSP for gain, equalizer , volume and delay
- Dante 2x2 audio input and output
- CEC /RS 232 control external device ON/OFF
- EDID management
- Front panel button, remote control, RS 232 , TCP/IP and Web GUI control
The ALF-SCK51TS-D is a 5 x 1 seamless presentation switcher with an HDBaseT3.0 receiver supports video resolutions up to 4K at 60Hz 4:4:4 8bitdeep color and HDCP 2. 2 compliant, it features multi view function for multi sources can be displayed on single screen. This switcher supports HDMI and HDBaseT mirrored outputs and HDBaseT extending uncompressed 4K up to 132ft/40m or 1080P up to 230ft/ 70m via single Cat6a cable.
This switcher has five video inputs: two USB C and three HDMI inputs . Each USB C input supports A LT DP mode up to 4K at 60Hz 4:4:4 8bit deep color USB 2 .0 data and 60W powercharging to USB C source device . It also features ethernet over USB C functionality to allow USB C source device to access internet seamlessly. Local USB KVM switching and extendingUSB 2.0 over HDBT can be allowed to connect external USB 2.0 devices or cameras for video conference.
This switcher has built in Dante audio input and output interface, and it can be seamlessly connected to any existing audio processing system with Dante enabled. This switcher can be controlled via front panel buttons, remote control, API commands using RS 232 or TCP/IP A Web server / GUI is built in that features A/V control, automatic display control and input EDID management. The product is ideal for software based video teleconference rooms.
