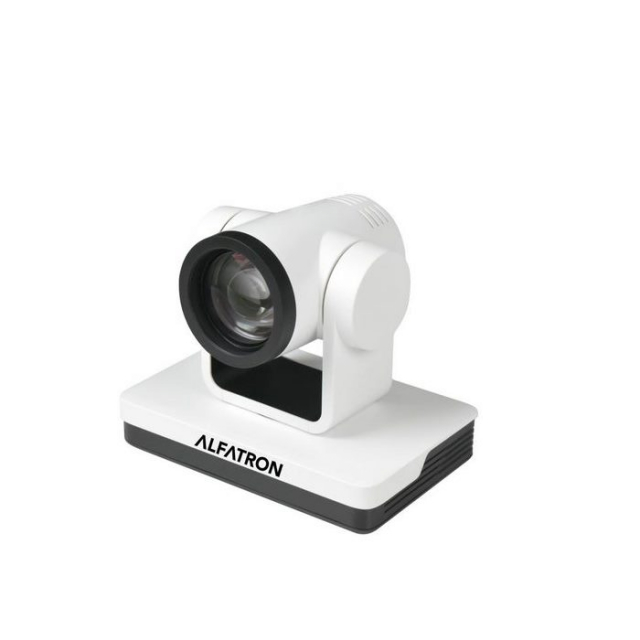

Alfatron ALF-20X-SDICW SDI PTZ Camera, 20X Zoom USB3.0 HDMI Out White

Color: White
  • Brand Alfatron
  • Part # ALF-20X-SDICW
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Quantity
Share:
Ask a question

Options and Related Products

Color:
Color: White

Alfatron, ALF-20X-SDICW, SDI PTZ Camera with 20X Optical Zoom. USB3.0 and HDMI outputs White

Features:

  • 1080P video with a Frame rate up to 60fps
  • 20x Zoom Lens which gives you a clear and fluent image
  • Leading Auto Focus Technology
  • Low Noise and High SNR
  • Quiet PTZ
  • 255 Presets
  • Supports Multiple Network Protocol - ONVIF, RTSP and RTMP
  • Control Protocols - VISCA IP, ONVIF, PELCO-D, PELCO-C and VISCA standard protocols
  • Field of view 3.3deg (Tele) - 54.7deg (Wide)
  • USB3.0, HDMI, SDI, CVBS, LAN, RS-232, audio input and is supplied with an IR remote control
  • PC control using Sony Visca or Pelco-D/P commands
  • 12V DC or POE Powered
  • Ships with either a Ceiling or Wall mount bracket

The ALF-20X-SDIC is an HD PTZ 1080p equipped camera with a 20x Zoom Lens.This PTZ camera is suitable for medium to large-sized meeting rooms, boardrooms, conference venues, and houses of worship. Alfatron ALF-20X-SDIC is compatible with video meeting software, such as Teams and Zoom. The Full HD 1080P camera is equipped for a high-quality video stream and high definition real-time synchronization.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews
ModelALF-20X-SDIC
Optical Zoom20X f=5.5~110mm
Sensor1/2.8-inch-high quality HD CMOS sensor
Effective Pixels16: 9, 2.07 megapixel
Video FormatHDMI/SDI video format1080P60/50/30/25/59.94/29.97, 1080I60/50/59.94, 720P60/50/30/25/59.94/29.97USB3.0 interface video format:1920X1080 at60fps Max
View Angle3.3 deg(tele)54.7 deg(wide)
AVF1.6 - F3.5
Digital Zoom10X
Minimum Illumination0.5Lux (F1.8, AGC ON)
DNR2D & 3D DNR
White BalanceAuto / Manual/ One Push/ 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
Focus/Aperture/Electronic ShutterAuto/Manual/One Push Focus
IrisAuto/Manual
ShutterAuto/Manual
BLCON/OFF
WDROFF/ Dynamic level adjustment
Video AdjustmentBrightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR>55dB
Video InterfacesALF-20X-SDIC Interfaces: USB3.0 (compatible with USB2.0), HDMI, SDI, LAN (POE), RS232-IN/OUT, RS422(compatible with RS485), A-IN, Rotary dial code, on-off switch
Video OutputHDMI, SDI, LAN, USB3.0, USB2.0
Video StreamDual stream output
Video Compression FormatLAN Interface: H.265, H.264, Dual stream output, USB2.0 Interface: H.265, H.264, MJPEG,USB3.0 Interface: YUV
Audio Input InterfaceDouble track 3.5mm linear input
Audio Output InterfaceHDMI, SDI, LAN
Audio Compression FormatAAC/MP3/G.711A
Network ProtocolRTSP, RTMP, ONVIF, GB/T28181, Support network VISCA control protocol Support remote upgrade, remote restart, remote reset
Control InterfaceRS232, RS485
Control ProtocolVISCA/Pelco-D/Pelco-P, Baud Rate: 115200/9600/4800/2400bps
Power InterfaceHEC3800 outlet (DC12V), POE
Input VoltageDC12V +/-10%
Input Electric CurrentMaximum: 1A
Power ConsumptionMaximum: 12W
Pan/Tilt Rotation+/-170 deg, -30 deg~+90 deg
Pan Control Speed0.1 -60 deg/sec
Tilt Control Speed0.1-30 deg/sec
Preset SpeedPan: 60 deg/sec, Tilt: 30 deg/sec
Preset Number255 presets (10 presets by remote controller)
Stored Temperature-10 deg~+60 deg
Storage Humidity20%~95%
Working Temperature-10 deg~+50 deg
Working Humidity20%~80%
Dimension178mmX115.5mmX150.9mm
Weight1.38KG
Product Details
ModelALF-20X-SDIC
Optical Zoom20X f=5.5~110mm
Sensor1/2.8-inch-high quality HD CMOS sensor
Effective Pixels16: 9, 2.07 megapixel
Video FormatHDMI/SDI video format1080P60/50/30/25/59.94/29.97, 1080I60/50/59.94, 720P60/50/30/25/59.94/29.97USB3.0 interface video format:1920X1080 at60fps Max
View Angle3.3 deg(tele)54.7 deg(wide)
AVF1.6 - F3.5
Digital Zoom10X
Minimum Illumination0.5Lux (F1.8, AGC ON)
DNR2D & 3D DNR
White BalanceAuto / Manual/ One Push/ 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
Focus/Aperture/Electronic ShutterAuto/Manual/One Push Focus
IrisAuto/Manual
ShutterAuto/Manual
BLCON/OFF
WDROFF/ Dynamic level adjustment
Video AdjustmentBrightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR>55dB
Video InterfacesALF-20X-SDIC Interfaces: USB3.0 (compatible with USB2.0), HDMI, SDI, LAN (POE), RS232-IN/OUT, RS422(compatible with RS485), A-IN, Rotary dial code, on-off switch
Video OutputHDMI, SDI, LAN, USB3.0, USB2.0
Video StreamDual stream output
Video Compression FormatLAN Interface: H.265, H.264, Dual stream output, USB2.0 Interface: H.265, H.264, MJPEG,USB3.0 Interface: YUV
Audio Input InterfaceDouble track 3.5mm linear input
Audio Output InterfaceHDMI, SDI, LAN
Audio Compression FormatAAC/MP3/G.711A
Network ProtocolRTSP, RTMP, ONVIF, GB/T28181, Support network VISCA control protocol Support remote upgrade, remote restart, remote reset
Control InterfaceRS232, RS485
Control ProtocolVISCA/Pelco-D/Pelco-P, Baud Rate: 115200/9600/4800/2400bps
Power InterfaceHEC3800 outlet (DC12V), POE
Input VoltageDC12V +/-10%
Input Electric CurrentMaximum: 1A
Power ConsumptionMaximum: 12W
Pan/Tilt Rotation+/-170 deg, -30 deg~+90 deg
Pan Control Speed0.1 -60 deg/sec
Tilt Control Speed0.1-30 deg/sec
Preset SpeedPan: 60 deg/sec, Tilt: 30 deg/sec
Preset Number255 presets (10 presets by remote controller)
Stored Temperature-10 deg~+60 deg
Storage Humidity20%~95%
Working Temperature-10 deg~+50 deg
Working Humidity20%~80%
Dimension178mmX115.5mmX150.9mm
Weight1.38KG
