ASD/QMS 600-390-KB-USB SmartCable Keyboard Interface, Mitutoyo Gages

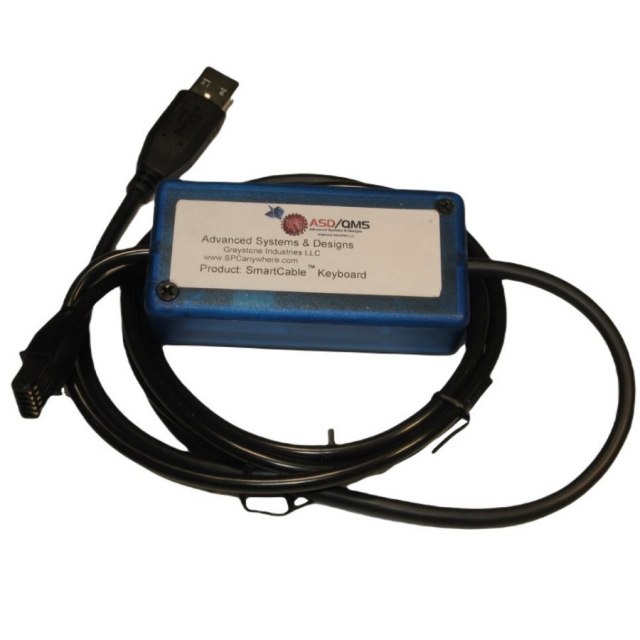

Advanced Systems & Designs, 600-390-KB-USB, SmartCable Keyboard Interface for Mitutoyo 500 Series Gages

Features:

• SmartCable™ Keyboard for Mitutoyo 500 Series gages
• Sends data to Excel or other Explorer based SPC programs
• Pressing the push button on the SmartCable Keyboard gage interface

Simplify your data acquisition system. This Advanced Systems & Designs - ASDQMS SmartCable USB Keyboard single gage interface connects the a standard Mitutoyo gage to a computer. Connects directly to the gage, no additional cables required. The output of the SmartCable Keyboard gage interface is a standard USB 2.0 keyboard signal. This is the ideal cable to use with Mitutoyo Digital Drop Indicators because it has a built-in data send button. This cable is what many have been requesting to use with digital indicators when they do not want to disturb the reading by pushing a send button at the gage. This SmartCable Keyboard USB interface cable gets the data send process away from the indicator so your readings are accurate every time. There is no need to add the expense of a separate footswitch-but if you want use one, there is a footswitch port on the SmartCable box. Connecting this SmartCable Keyboard with its built-in keyboard interface to a computer will allow the SmartCable USB to be identified as a keyboard device that can send data to any Microsoft Windows application or SPC internet explorer software - no complicated software wedges required. And it never changes when your software updates. The ASDQMS SmartCable USB Keyboard gage interface will make the gage readings appear as if they were typed in using a standard keyboard - eliminates data collection errors. If you want to collect data into a Microsoft Excel spreadsheet, simply select the cell where you want the data to appear.

Applicable Gages:

• All Calipers without Absolute Encoder
• Height Gage: 570-2XX, 570-3XX, 192-6XX, 192-67X
• Indicators: 575-XXX, 543-6XX, 543-2XX, 543-4XX, 543-78X, 543-79X
• Depth Gages: 547-21X, 547-25X, 571-2XX
• Scale Unit: 572-XXX
• Thickness Gage: 547-3XX, 547-4XX, 547-5XX
