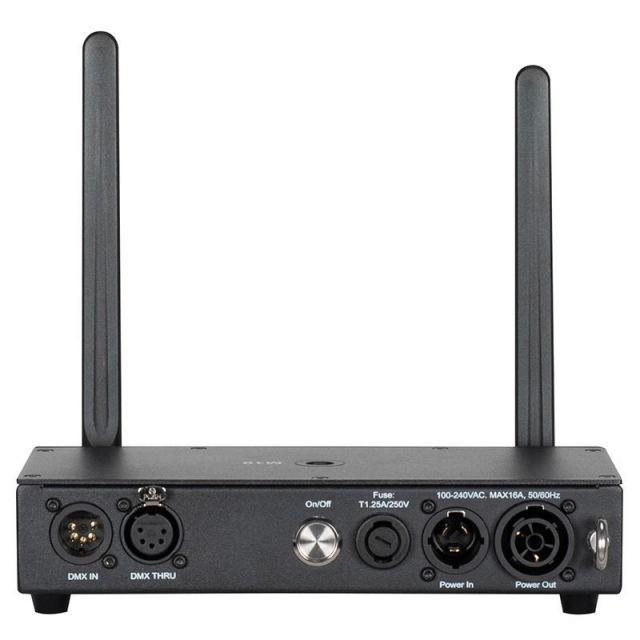

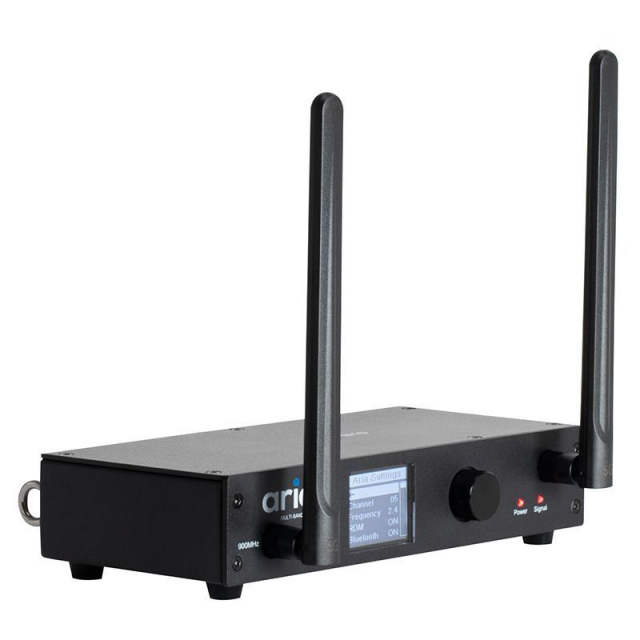

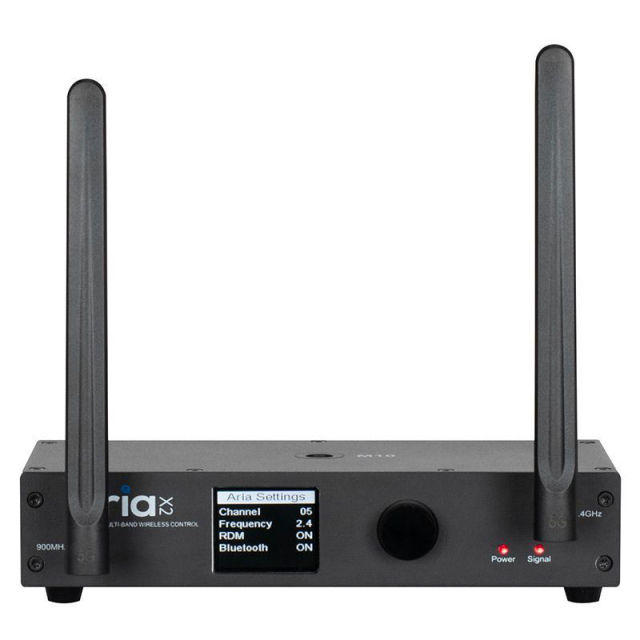

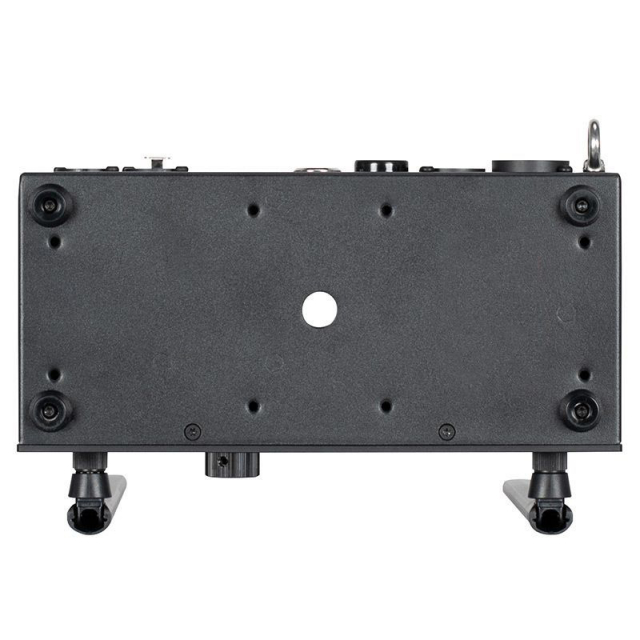

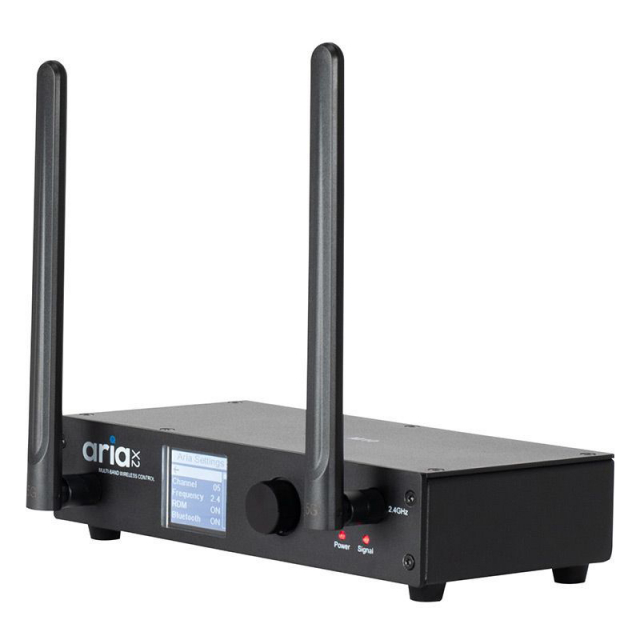

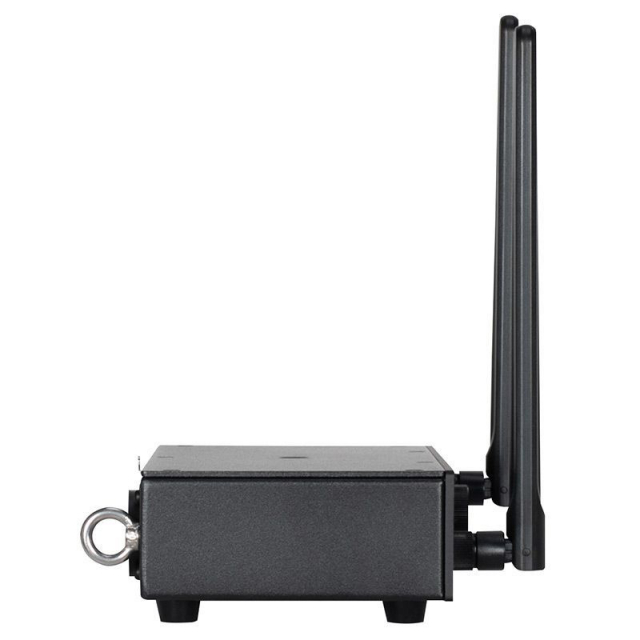

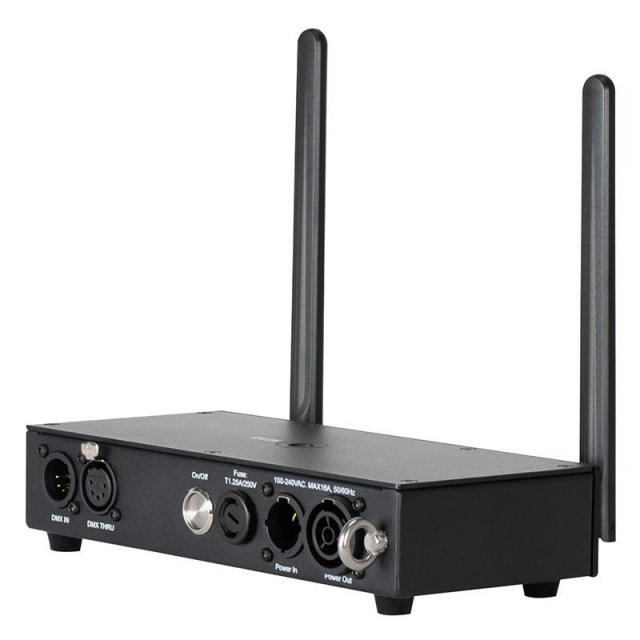

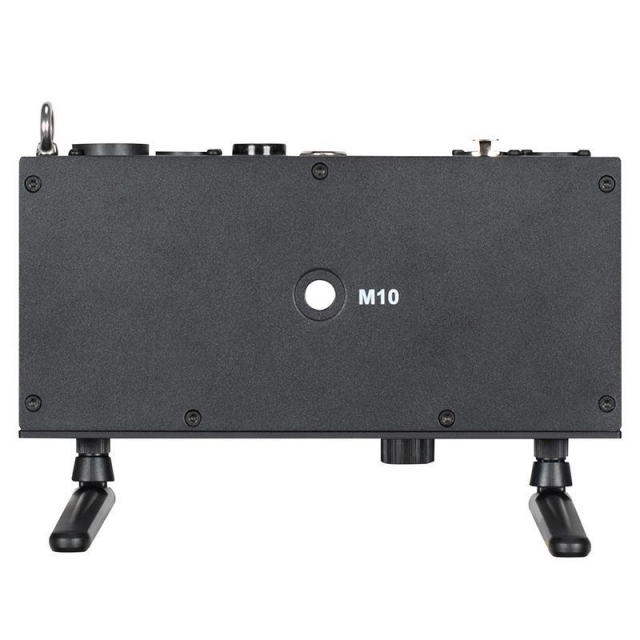

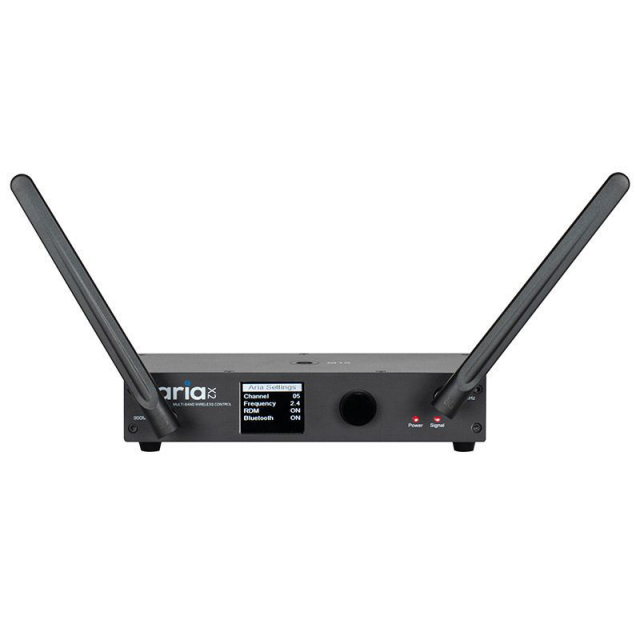

ADJ AX2100 Aria X2 Transceiver w/ Wired Digital Communication Network

Features:

• Single DMX Universe
• Sub-GHz, 2.4 GHz WiFi, and Bluetooth
• Configuration via App (Coming Soon) or Front panel
• Wireless to DMX or DMX to Wireless

Supported Protocols:

• DMX
• RDM (Planned for future software release)
• Proprietary 802.15.4
• Aria X2 Mesh Protocol
• Bluetooth 5.2 (BLE)
• Aria X2 Serial Protocol
• This is proprietary serial protocol for communicating with a variety of fixtures.

RF Characteristics:

• Frequency range
• 2404-2480 MHz
• 863-870 MHz (EU)
• 902-928 MHz (US)
• Radio module: Aria X2
• Interference mitigation
• CSMA
• Adaptive frequency hopping (on the roadmap)
• OTA updates

Standards:

• Health
• EN IEC 62311:2020
• EN50665:2017
• BS EN IEC 62311:2020
• BS EN 50665:2017
• Safety
• EN IEC 62368-1: 2020+A11:2020
• BS EN IEC 62368-1: 2020+A11:2020
• EMC
• ETSI EN 301 489-1 V2.2.3 (2019-11)
• ETSI EN 301 489-3 V2.3.2 (2023-01)
• ETSI EN 301 489-17 V3.2.4 (2020-09)
• EN 55032:2015/A1:2020
• EN 55035:2017/A11:2020
• EN 61000-3-3:2013/A2:2021
• EN IEC 61000-3-2:2019/A1:2021
• BS EN 55032:2015/A1:2020
• BS EN 55035:2017/A11:2020
• BS EN 61000-3-3:2013/A2:2021
• BS EN IEC 61000-3-2:2019/A1:2021
• Radio
• EN 300 220-1 V 3.1.1 (2017-02)
• EN 300 220-2 V 3.2.1 (2018-06)
• ETSI EN 300 328 V2.2.2 (2019-07)

The single universe, indoor Aria X2 Transcevier, the future of wireless lighting management, is here to transform your experience with unparalleled control, efficiency, and ease. This comprehensive system harnesses cutting-edge technology to offer a solution that adapts to your needs and provides a harmonious lighting experience, whether on the show site or in the shop.
