| Subject to the use of all the optional accessories |

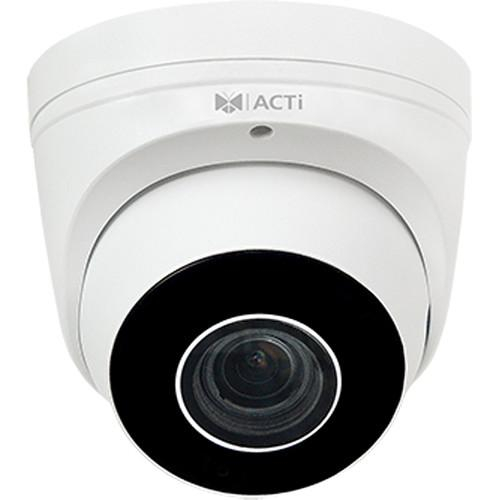

| Product Type | Zoom Dome |
| Maximum Resolution | 2MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.9 " |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.02 lux; B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 30m |
| Electronic Shutter | 1-1/100000 second (auto mode) |
| S/N Ratio | 52 dB |
| Focal Length | Zoom, f2.7-12mm |
| Aperture | F1.4 |
| Zoom Ratio | 4.4x optical |
| Zoom Application | Camera Installation |
| Focus | Autofocus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 94° - 28° |
| Vertical Viewing Angle | 56.7° - 14.4° |
| Viewing Angle Adjustment | Pan: 0°-360°, Tilt: 15°-90°, Rotation: 0°-360° |
| Compression | H.265, H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 1920 x 1080
30 fps at 1280 x 720 |
| Multi-Streaming | Simultaneous triple streams |
| Wide Dynamic Range | Extreme WDR (120 dB) |
| Image Enhancement | White Balance, Brightness, Saturation, Contrast, Sharpness, Automatic gain control, Defogging |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 8 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Tampering Detection |
| Image Orientation | Flip, Mirror, Rotation |
| Audio Type | 1-way, Built-in Microphone |
| Network Protocol & Service | IPv4, IPv6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, QoS, SNMP, IEEE 802.1X |

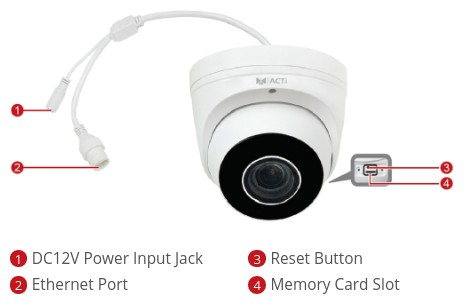

| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector |
| Event Trigger | Video motion detection |
| Event Response | E-mail notification with snapshots, Upload snapshot to FTP server |
| ONVIF Compliant | Yes, Profile S |
| Web Browser | IE 11 |
| Local Storage | MicroSDHC Memory Card Slot (card not included, up to 128GB) |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 8.16 W (DC) |
| Weight | 450g (0.99lb) |

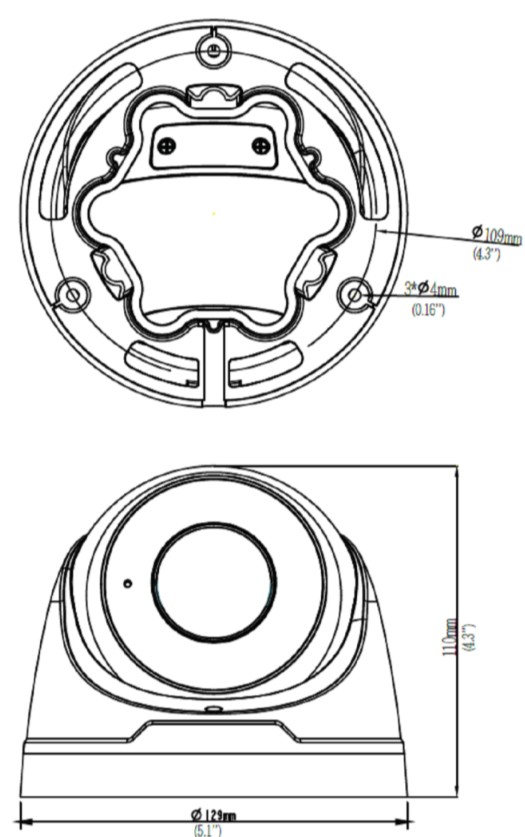

| Dimensions | (D x H): 129mm x 110mm (5.08" x 4.3") |
| Environmental Casing | Weatherproof (IP67) |
| Operating Temperature | -40°C - 60°C (-40°F - 140°F) |
| Approvals | CE, FCC, IP67, UL Listed (UL 60950-1) |
