Buy ACTi A956, 2MP Outdoor Speed Dome Camera with D/N, IR, Extreme Wdr

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Type:: Type: Speed Dome Camera

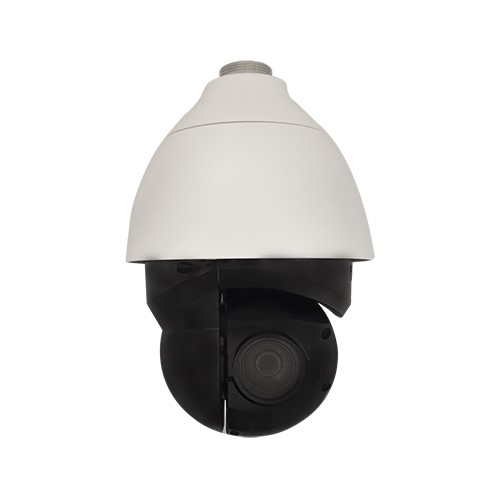

ACTi, A956, 2MP Outdoor Speed Dome Camera with D/N, IR, Extreme WDR, Ells, 40X Zoom Lens

Features:

2 Megapixel
Day and Night with Extreme Low Light Sensitivity and Adaptive IR LED
Extreme WDR
Endless Pan and Tilt
H.265 Compression
Event trigger, response and notification

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Device
Product Type	Speed Dome
Maximum Resolution	2MP
Application Environment	Outdoor
Image Sensor	Progressive Scan CMOS
Sensor Size	1/2.8"
Effective Pixels	1945(H) X 1097(V) (2.13 MP)
Day / Night	Yes
Low Light Sensitivity	Extreme
Minimum Illumination	Color: 0.002 lux; B/W: 0.001 lux; B/W: 0 lux (IR LED on)
Mechanical IR Cut Filter	Yes
IR LED	Adaptive IR LED x 8 (850 nm)
IR Working Distance	200m
Lens
Focal Length	Zoom, f4.3-170mm
Aperture	F1.6
Zoom Ratio	40x optical zoom
Iris	P-Iris
Focus	Auto focus
Horizontal Viewing Angle	66.1° - 1.8°
Vertical Viewing Angle	39.8° - 1.1°
PTZ
Manual Panning / Tilting Speed	0.1° - 90°/second, 0.1° - 55°/second
Preset Panning / Tilting Speed	300°/second, 300°/second
Panning Range	360° endless
Tilting Range	-20°~100°
PTZ Control	256 preset points
Video
Compression	H.265, H.264, MJPEG
Maximum Frame Rate vs. Resolution	30 fps at 1920 x 1080 60 fps at 1920 x 1080 (WDR off)
Multi-Streaming	Simultaneous quad streams
Wide Dynamic Range	Extreme WDR
Audio
Audio Type	2-way, Line-in, Line-out
Event
Event Trigger	Video motion detection, External device through digital input, Sound detection
Event Response	E-mail notification with snapshots, Save video to local storage, Upload snapshot to FTP server, Activate external device through digital output
Integration
ONVIF Compliant	Yes, Profile S, Profile G, Profile T, Profile Q, Profile M
Interface
Analog Video Output	1 x BNC connector
Local Storage	MicroSD, MicroSDHC, MicroSDXC memory card slot (card not included)
Digital Input/Output	4/2
Operating Button	Reset Button
General
Power Source	AC 24V, High PoE (IEEE802.3at)
Dimensions	(Dia. x H): 207mm x 300mm (8.15" x 11.81")
Environmental Casing	Weatherproof (IP66)
Heater	Yes
Operating Temperature	-40°C ~55°C (-40°F ~ 131°F) heater on
Color	White
Real-time Clock (RTC)	Yes

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Device
Product Type	Speed Dome
Maximum Resolution	2MP
Application Environment	Outdoor
Image Sensor	Progressive Scan CMOS
Sensor Size	1/2.8"
Effective Pixels	1945(H) X 1097(V) (2.13 MP)
Day / Night	Yes
Low Light Sensitivity	Extreme
Minimum Illumination	Color: 0.002 lux; B/W: 0.001 lux; B/W: 0 lux (IR LED on)
Mechanical IR Cut Filter	Yes
IR LED	Adaptive IR LED x 8 (850 nm)
IR Working Distance	200m
Lens
Focal Length	Zoom, f4.3-170mm
Aperture	F1.6
Zoom Ratio	40x optical zoom
Iris	P-Iris
Focus	Auto focus
Horizontal Viewing Angle	66.1° - 1.8°
Vertical Viewing Angle	39.8° - 1.1°
PTZ
Manual Panning / Tilting Speed	0.1° - 90°/second, 0.1° - 55°/second
Preset Panning / Tilting Speed	300°/second, 300°/second
Panning Range	360° endless
Tilting Range	-20°~100°
PTZ Control	256 preset points
Video
Compression	H.265, H.264, MJPEG
Maximum Frame Rate vs. Resolution	30 fps at 1920 x 1080 60 fps at 1920 x 1080 (WDR off)
Multi-Streaming	Simultaneous quad streams
Wide Dynamic Range	Extreme WDR
Audio
Audio Type	2-way, Line-in, Line-out
Event
Event Trigger	Video motion detection, External device through digital input, Sound detection
Event Response	E-mail notification with snapshots, Save video to local storage, Upload snapshot to FTP server, Activate external device through digital output
Integration
ONVIF Compliant	Yes, Profile S, Profile G, Profile T, Profile Q, Profile M
Interface
Analog Video Output	1 x BNC connector
Local Storage	MicroSD, MicroSDHC, MicroSDXC memory card slot (card not included)
Digital Input/Output	4/2
Operating Button	Reset Button
General
Power Source	AC 24V, High PoE (IEEE802.3at)
Dimensions	(Dia. x H): 207mm x 300mm (8.15" x 11.81")
Environmental Casing	Weatherproof (IP66)
Heater	Yes
Operating Temperature	-40°C ~55°C (-40°F ~ 131°F) heater on
Color	White
Real-time Clock (RTC)	Yes

Optional Accessories

Note

Note: Please read description carefully. Do not base your order on the picture presented.
