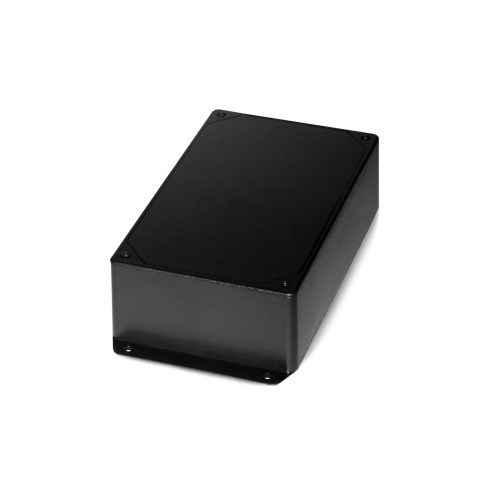

ACI (Automation Components), MOD9200LON-A, 131048, Wireless, LonWorks Network Transceiver, 30 Temp, 6 RH Sensors Inputs

The MOD9200LON network transceiver uses the 900 MHz spread spectrum technology and is compatible with any Building Automation System or front end using LonWorks® protocol and FTT-10 interface. The MOD9200LON works with any ACI wireless sensor, input concentrator, or output module. The sensors are programmed to the transceiver using the configuration software (included), a laptop and a crossover cable. Sensor distance and reliability can be increased with the addition of a RR2552B(s) repeater. ACI offers pre-programming of wireless systems for ease of installation, saving time and cost of field setup. Prior to purchase, it is recommended to contact ACI's Technical Service Department for product selection and system design/layout

Applications:

Museums, Churches, Historical Buildings & Construction

Up to 30 Wireless Temperature, 6 RH Sensors & 50 Wireless Digital & Analog Outputs

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Notifications

Notifications Item is non-returnable unless defective.
Please review our Return Policy.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Reviews

Supply Voltage	24 VAC, 60Hz (Full wave rectified)
Supply Current	0.5A Nominal
Connections	Screw Terminal Blocks
Wire Size	16 AWG (1.31 mm2) to 26 AWG (0.129 mm2)
Terminal Block Torque Rating	0.37 ft-lb (0.5 Nm) Nominal
Operating Temperature Range	32 to 122°F (0 to 50°C)
Operating Humidity Range	30 to 50% RH, Non-condensing
Storage Temperature Range	-4 to 176°F (-20 to 80°C)
Data Protocol	IEEE 802.15.4-2003/2006
Physical Network Connection	FTT-10 (Free Topology Twisted Pair)
Communication Wire	Eschelon approved 22 AWG wire
Termination	Not provided by ACI
Configuration Software	Included; Data registers need to be configured prior to use
Product Dimensions	(L) 8.78" (223.01 mm) x (W) 4.72" (119.89 mm) x (H) 2.36" (59.94 mm)
Product Weight	2.20 lbs (1.00 kg)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Supply Voltage	24 VAC, 60Hz (Full wave rectified)
Supply Current	0.5A Nominal
Connections	Screw Terminal Blocks
Wire Size	16 AWG (1.31 mm2) to 26 AWG (0.129 mm2)
Terminal Block Torque Rating	0.37 ft-lb (0.5 Nm) Nominal
Operating Temperature Range	32 to 122°F (0 to 50°C)
Operating Humidity Range	30 to 50% RH, Non-condensing
Storage Temperature Range	-4 to 176°F (-20 to 80°C)
Data Protocol	IEEE 802.15.4-2003/2006
Physical Network Connection	FTT-10 (Free Topology Twisted Pair)
Communication Wire	Eschelon approved 22 AWG wire
Termination	Not provided by ACI
Configuration Software	Included; Data registers need to be configured prior to use
Product Dimensions	(L) 8.78" (223.01 mm) x (W) 4.72" (119.89 mm) x (H) 2.36" (59.94 mm)
Product Weight	2.20 lbs (1.00 kg)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
