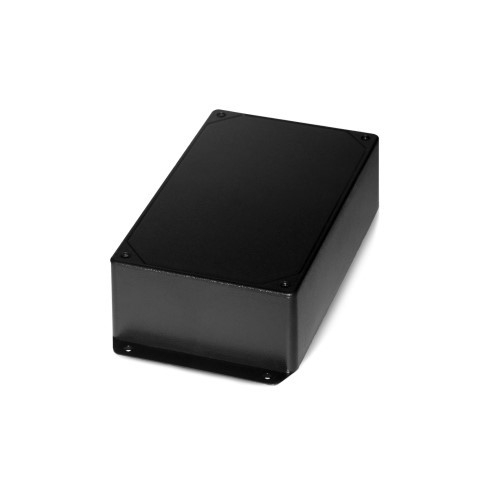

ACI 130658 MOD9200BNT Wireless, BACnet MSTP Network Transceiver

  • Brand ACI
  • Part # 130658
  • Model # MOD9200BNT
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Quantity
Share:
Ask a question

ACI (Automation Components), MOD9200BNT, 130658, Wireless, BACnet MSTP Network Transceiver, 50 Sensors/100 Points

The MOD9200BNT is a BACnet™ network transceiver that uses 900MHz spread spectrum technology and is compatible with any Building Automation System using BACnet™ MS/TP communication protocol. The MOD9200BNT works with any ACI wireless sensor, input concentrator, or output module. The MOD9200BNT can be programmed with inputs for a maximum of 50 physical wireless sensors or 100 data points (analog & digital), and 100 output points (50 analog and 50 digital) maximum using the configuration software (included), a laptop and a crossover cable. Transmission distance in a typical building is 200-300 feet horizontal depending on the layout and construction of the building, and one floor above and one floor below the transceiver. Sensor distance and reliability can be increased with the addition of a RR2552B(s) repeater.

Note:

  • For best results, no more than three (3) repeaters should be installed per wireless system, and no more than two (2) repeaters in series with the MOD9200BNT.

Applications:

  • Museums, Churches, Historical Buildings & New Construction
See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews
Supply Voltage24 VAC, 60Hz (Full wave rectified)
Supply Current0.5A Nominal
ConnectionsScrew Terminal Blocks
Wire Size16 AWG (1.31 mm2) to 26 AWG (0.129 mm2)
Terminal Block Torque Rating0.37 ft-lb (0.5 Nm) Nominal
Operating Temperature Range32 to 122°F (0 to 50°C)
Operating Humidity Range30 to 50% RH, Non-condensing
Storage Temperature Range-4 to 176°F (-20 to 80°C)
Data ProtocolIEEE 802.15.4-2003/2006
Transceiver InputsMaximum 100 Analog or Digital Inputs (Max. 50 sensors/modules per transceiver)
Transceiver Outputs50 Analog, 50 Digital points (100 total)
Communication ProtocolBACnet™ MS/TP Physical Layer RS-485 Twisted Pair
Communication WireBelden 9841 or equivalent
Termination Resistor120Ω, Dip switch selectable
Baud Rate9600, 19.2K, 38.4K, 57.6K, 76.8K (default), and 115.2K (dip switch selectable)
Node ID1 to 127, dip switch selectable
Product Dimensions(L) 8.78" (223.01 mm) x (W) 4.72" (119.89 mm) x (H) 2.36" (59.94 mm)
Product Weight2.20 lbs (1.00 kg)
Product Details
Supply Voltage24 VAC, 60Hz (Full wave rectified)
Supply Current0.5A Nominal
ConnectionsScrew Terminal Blocks
Wire Size16 AWG (1.31 mm2) to 26 AWG (0.129 mm2)
Terminal Block Torque Rating0.37 ft-lb (0.5 Nm) Nominal
Operating Temperature Range32 to 122°F (0 to 50°C)
Operating Humidity Range30 to 50% RH, Non-condensing
Storage Temperature Range-4 to 176°F (-20 to 80°C)
Data ProtocolIEEE 802.15.4-2003/2006
Transceiver InputsMaximum 100 Analog or Digital Inputs (Max. 50 sensors/modules per transceiver)
Transceiver Outputs50 Analog, 50 Digital points (100 total)
Communication ProtocolBACnet™ MS/TP Physical Layer RS-485 Twisted Pair
Communication WireBelden 9841 or equivalent
Termination Resistor120Ω, Dip switch selectable
Baud Rate9600, 19.2K, 38.4K, 57.6K, 76.8K (default), and 115.2K (dip switch selectable)
Node ID1 to 127, dip switch selectable
Product Dimensions(L) 8.78" (223.01 mm) x (W) 4.72" (119.89 mm) x (H) 2.36" (59.94 mm)
Product Weight2.20 lbs (1.00 kg)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
