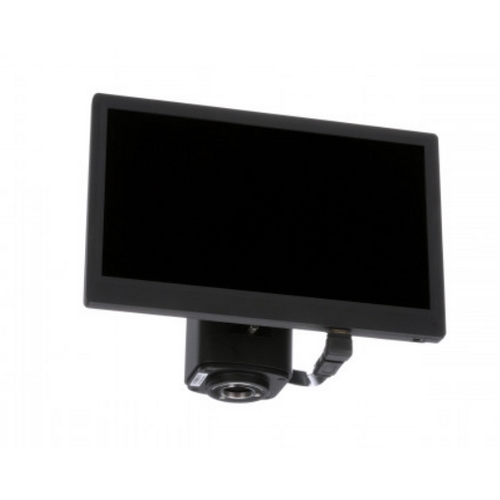

Accu-Scope, AU-600-HDS, Excelis 1080P HD Camera with integrated 11.6" HD monitor, 60 fps, USB 2.0, SD Card

AU-600-HDS includes only:

Features:

True HD imaging for scientific and industrial applications. Capture 6MP still images.
Use the included 11.6 inch HD monitor to view and capture images without a PC.
Built-in mouse control software for HDMI viewing and recording without a computer.
Simultaneous live image output to an HD monitor and to a PC/Mac via USB 2.0 (PC/Mac not included).
Perform measurements on live HD images.
Fluorescence imaging with high signal-to-noise, exposure times from 1ms to 10 seconds and 20 Gain levels.
Monitor mounts directly to the Excelis HD camera body for convenient access and doesn t take up valuable bench space.
CaptaVision Imaging Software (included) extends the capabilities of the Excelis HD with advanced image processing and measurement features (requires PC; not included).
Standard C-mount easily adapts to most microscopes; 0.35x camera adapter recommended.

For more information, please see Data Sheet

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Sensor	1/2.8 inch SONY IMX236 color CMOS, 2.8 um pixels
Live Resolution	1920 x 1080
Capture Resolution	6MP (3264 x 1836)
Frame Rate	HDMI: 60fps / USB2.0: 30fps
Image Capture	Hi Speed SD Card (8GB)(accepts Class 10 SD card, 32GB maximum)
Video Capture	HDMI: 1080p, 30fps to SD Card / USB2.0: 1080p, 30fps to PC
Exposure Time	0.001 sec 10.0 sec
White Balance	Automatic
Other Settings	Gain, Gamma, Saturation, Contraction
Built-in Software (stand-alone operation)	Cloud 1.0 (with live image measurement)
PC Imaging Software	CaptaVision Imaging Software (separate software for PC/Windows and Mac OS) Advanced Camera Controls: live/still image measurement and annotation, flatfield correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel mixer merge; HDR (High Dynamic Range) function Image Types: JPG, TIF, PNG and DICOM
Output Mode	HDMI or USB2.0
Operating Conditions	Temperature: -10~45 deg; Humidity: 10%~85%
System Requirements (for PC Imaging Software)	Intel Core i5 processor (Dual Core or more); 16GB RAM or more; USB 2.0 Hi-Speed port or higher
Power Supply	DC 12V/1A
Lens Mount	C-Mount lens adapter, 0.35x recommended
Monitor	Mountable 11.6 inch HD LCD display
Display Contrast	1000:1 / Dot Pitch 0.1338mm
Input Modes	AC power, HDMI

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Sensor	1/2.8 inch SONY IMX236 color CMOS, 2.8 um pixels
Live Resolution	1920 x 1080
Capture Resolution	6MP (3264 x 1836)
Frame Rate	HDMI: 60fps / USB2.0: 30fps
Image Capture	Hi Speed SD Card (8GB)(accepts Class 10 SD card, 32GB maximum)
Video Capture	HDMI: 1080p, 30fps to SD Card / USB2.0: 1080p, 30fps to PC
Exposure Time	0.001 sec 10.0 sec
White Balance	Automatic
Other Settings	Gain, Gamma, Saturation, Contraction
Built-in Software (stand-alone operation)	Cloud 1.0 (with live image measurement)
PC Imaging Software	CaptaVision Imaging Software (separate software for PC/Windows and Mac OS) Advanced Camera Controls: live/still image measurement and annotation, flatfield correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel mixer merge; HDR (High Dynamic Range) function Image Types: JPG, TIF, PNG and DICOM
Output Mode	HDMI or USB2.0
Operating Conditions	Temperature: -10~45 deg; Humidity: 10%~85%
System Requirements (for PC Imaging Software)	Intel Core i5 processor (Dual Core or more); 16GB RAM or more; USB 2.0 Hi-Speed port or higher
Power Supply	DC 12V/1A
Lens Mount	C-Mount lens adapter, 0.35x recommended
Monitor	Mountable 11.6 inch HD LCD display
Display Contrast	1000:1 / Dot Pitch 0.1338mm
Input Modes	AC power, HDMI
