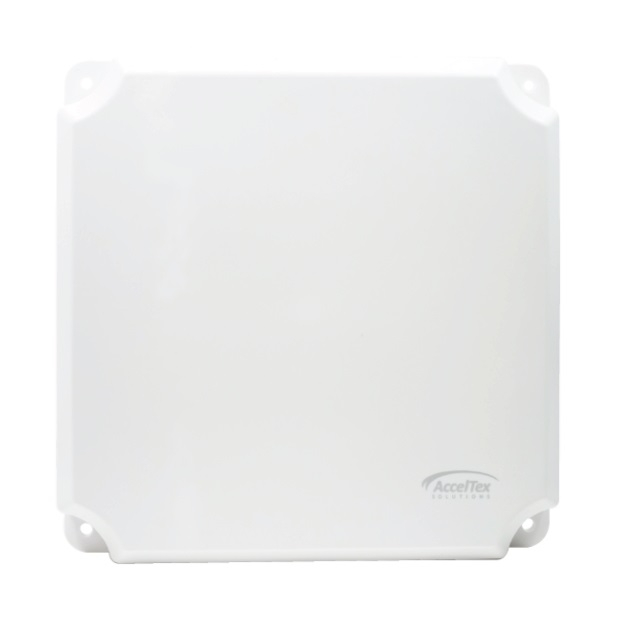

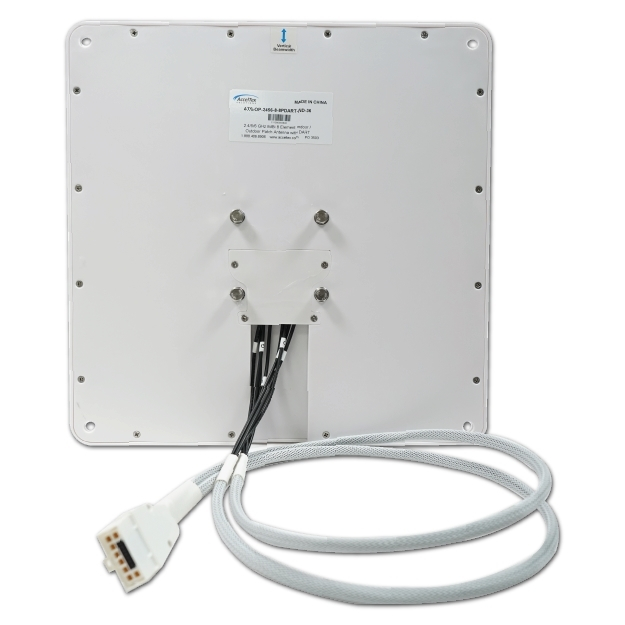

AccelTex, ATS-OP-2456-8-8PRADART-ND-36, Indoor/Outdoor 2.4/5/6 GHz 8 dBi 8 Element Patch Antenna with RA DART

Features:

The AccelTex Solutions Tri-Band Indoor/Outdoor Patch Antenna with a straight 8-Port DART connector is a perfect complement to an enterprise-class AP to achieve directional coverage in your indoor or outdoor space.
Each antenna element is optimized for Wi-Fi operation on 2.4, 5 and 6 GHz. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.
Outdoor and connectorized antenna applications in the 6 GHz band in the U.S. require pending FCC updates to the equipment approvals process.

For more information, please see Data Sheet

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Antenna Type	Patch
Frequency Range	2.4-2.48/5.15-5.85/6-7.125 GHz
Gain	8 dBi
Polarization	Vertical
Horizontal Beamwidth	115°/110°/110°
Vertical Beamwidth	50°/25°/25°
VSWR	<2.5
Isolation	> 30 dB
Impedance	50 Ω
Max Input Power	50W per port
Dimensions	12.99"x12.99"x1.37" (330x330x35mm)
Weights	2.5 lb (1 kg)
Installation	Flush Mount to Wall/Ceiling or Articulating Arm (included)
Radome Material	ABS
Connector	Right Angle 8-Port DART
Number of Leads	1
Cable Length	36" (910mm)
Cable Type	ATS-100
Installation Environment	Indoor or Outdoor
Operating Temperature	-40 to 158 F (-40 to 70 C)
Wind Velocity	134 mph (216 km/h)
Compatible Ap	Cisco Catalyst 9130AXE
Applicable Industries	Education, Enterprise, Healthcare, Hospitality, Transportation, Warehouse
Ideal Applications	Indoor Wi-Fi, Outdoor Wi-Fi
Applicable Technology	802.11ax
Lightning Protection	None

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Antenna Type	Patch
Frequency Range	2.4-2.48/5.15-5.85/6-7.125 GHz
Gain	8 dBi
Polarization	Vertical
Horizontal Beamwidth	115°/110°/110°
Vertical Beamwidth	50°/25°/25°
VSWR	<2.5
Isolation	> 30 dB
Impedance	50 Ω
Max Input Power	50W per port
Dimensions	12.99"x12.99"x1.37" (330x330x35mm)
Weights	2.5 lb (1 kg)
Installation	Flush Mount to Wall/Ceiling or Articulating Arm (included)
Radome Material	ABS
Connector	Right Angle 8-Port DART
Number of Leads	1
Cable Length	36" (910mm)
Cable Type	ATS-100
Installation Environment	Indoor or Outdoor
Operating Temperature	-40 to 158 F (-40 to 70 C)
Wind Velocity	134 mph (216 km/h)
Compatible Ap	Cisco Catalyst 9130AXE
Applicable Industries	Education, Enterprise, Healthcare, Hospitality, Transportation, Warehouse
Ideal Applications	Indoor Wi-Fi, Outdoor Wi-Fi
Applicable Technology	802.11ax
Lightning Protection	None
