Buy Raymarine E70100, ACU-400 Actuator Control Unit

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

E70100 Includes Only:

ACU unit
Rudder angle reference sensor / transducer (supplied with specific system packs only)
Cable ties
Mounting screws
Documentation

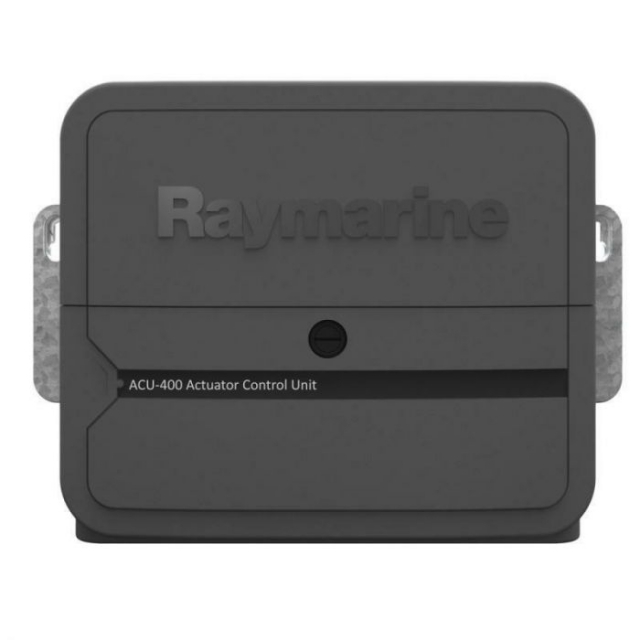

The ACU-400 (Actuator Control Unit) is a key component for Evolution autopilot systems. The ACU-400 houses the main power and drive electronics for direct connection to your vessel's steering system and 12-volt DC electrical source. Combine with an EV-1 sensor, autopilot control head, and Type 2 and Type 3 hydraulic, mechanical linear, hydraulic linear, or mechanical rotary drive a complete autopilot system.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Output

Drive clutch output

Up to 4 A continuous at 12 V on 12 V systems
Up to 4 A continuous at 24 V on 24 V systems
Up to 4 A continuous at 12 V on 24 V systems

Drive current output

Maximum continuous 30 A at supply voltage

Physical

Dimensions

Width: 285 mm (11.2 in), Height: 211.5 mm (8.3 in), Depth: 64.5 mm (2.5 in)

Weight

2.2 kg (4.84 lbs)

Environmental

Relative humidity

Max. 93%

Waterproof rating

Drip resistant

Storage temperature

-30 °C to +70 °C (-22 °F to 158 °F)

Operating temperature

-20 °C to +55 °C (-4 °F to 131 °F)

Conformance

Standards

Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2

Power

Power consumption (standby) - main power supply

300 mA (12 / 24 V)

Power output to SeaTalkng bus

3 A at 12 V (fuse protected at 3 A)

Power consumption (standby) - SeaTalkng bus

20 mA (12 V)

Nominal supply voltage

12 / 24 V dc

Operating voltage range

10.8 V dc to 31.2 V dc

LEN (NMEA 2000 Load Equivalency Number)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Output

Drive clutch output

Up to 4 A continuous at 12 V on 12 V systems
Up to 4 A continuous at 24 V on 24 V systems
Up to 4 A continuous at 12 V on 24 V systems

Drive current output

Maximum continuous 30 A at supply voltage

Physical

Dimensions

Width: 285 mm (11.2 in), Height: 211.5 mm (8.3 in), Depth: 64.5 mm (2.5 in)

Weight

2.2 kg (4.84 lbs)

Environmental

Relative humidity

Max. 93%

Waterproof rating

Drip resistant

Storage temperature

-30 °C to +70 °C (-22 °F to 158 °F)

Operating temperature

-20 °C to +55 °C (-4 °F to 131 °F)

Conformance

Standards

Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2

Power

Power consumption (standby) - main power supply

300 mA (12 / 24 V)

Power output to SeaTalkng bus

3 A at 12 V (fuse protected at 3 A)

Power consumption (standby) - SeaTalkng bus

20 mA (12 V)

Nominal supply voltage

12 / 24 V dc

Operating voltage range

10.8 V dc to 31.2 V dc

LEN (NMEA 2000 Load Equivalency Number)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
